Replace a Passage Doorknob with a Privacy Doorknob

Geschrieben von: [deleted]
  • Kommentare: 0
Replace a Passage Doorknob with a Privacy Doorknob

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

This replacement guide provides detailed steps on how to install a privacy doorknob. The procedure is prepared in a manner that is easy to comprehend for people with minimal to no experience in making household replacements. This is demonstrated through the use of language that is easy to understand and photos. The guide shows the removal process of a passage doorknob and installation of a privacy doorknob.

  1. PyITS1aATXqgVFd6
    PyITS1aATXqgVFd6
    uWkohIsjEdNbJkf6

    • Hold both sides of the current doorknob with a hand to prevent it from falling out in the removal process.

  2. kICIMyVEKPqWykWX
    kICIMyVEKPqWykWX
    IgyeX6LaUfnjTSZs

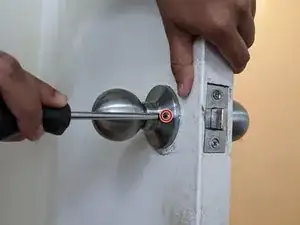

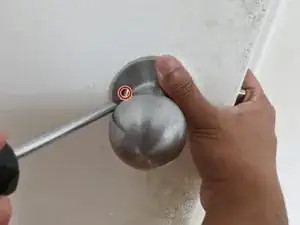

    • Using a Phillips #2 screwdriver, remove the two screws from the passage doorknob.

    • Make sure to rotate the screwdriver counter clockwise when removing screws.

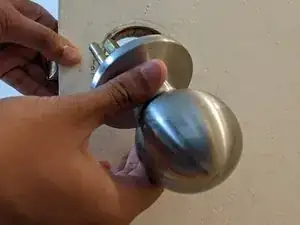

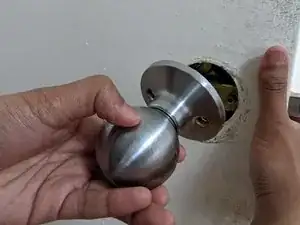

  3. OIRZFDFgffyeQIpR
    OIRZFDFgffyeQIpR
    FCdZAkAGFIQakABd

    • Once the screws are off, safely pull out the doorknob from both sides.

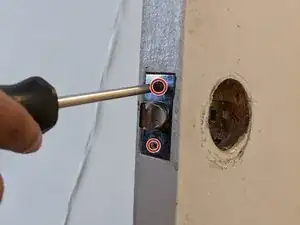

  4. KXR5cIiIjywISm3f
    KXR5cIiIjywISm3f
    IgMd6vFtpJc3VPv4

    • Remove the screws off the existing latch that comes with the passage doorknob.

    • These screws are located on the plate of the latch.

  5. RqiejNH1YEfIthOo

    • Pull the latch out of the hole it is secured in.

  6. PObjcXXBSVYTYrfW

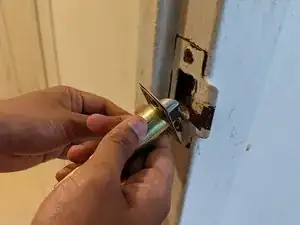

    • Grab the new latch that comes with the privacy doorknob set and ensure the flat side is facing away from the closing direction of the door.

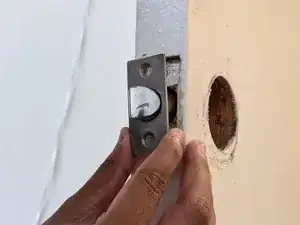

  7. 2aNWeDdj1FJJekX6

    • Insert the new latch into the designated latch hole after figuring out the correct way to face it.

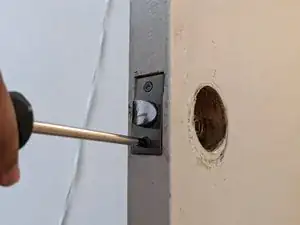

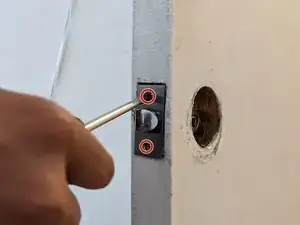

  8. CyoUvedMuVesW1ar
    CyoUvedMuVesW1ar
    Z5UOiSyi1IjYxOlE

    • Begin tightening the 19.05 mm flat head screws that come with the privacy doorknob set to secure the latch mechanism in place.

    • These are the short screws that come with the set.

    • Rotate the screwdriver clockwise to tighten.

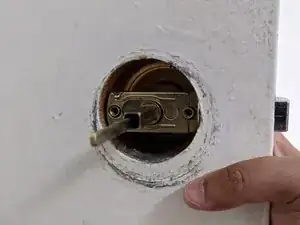

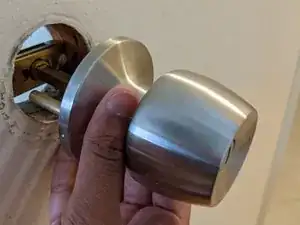

  9. lRYBFRZRHNPZwnWH
    lRYBFRZRHNPZwnWH
    XcCRfk2BRrEOv1WK
    jZGwR4sFHoCMTsLf

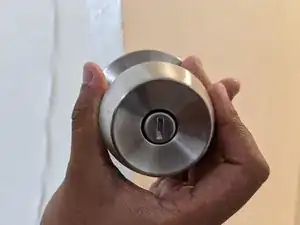

    • Grab the exterior knob and align it with the holes of the latch and push it in from the side of the door that is outside your room.

    • Make sure it is being secured with one hand to prevent it from falling.

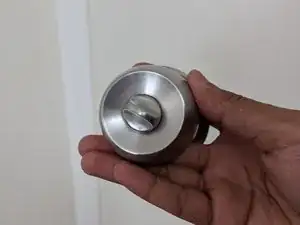

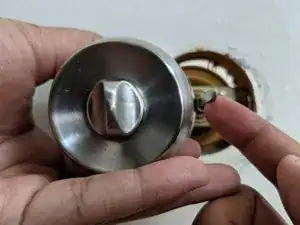

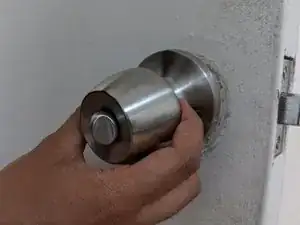

  10. eulP2VB4YU2YMxjy
    eulP2VB4YU2YMxjy
    KrjAV2qCrNA4YANG
    HcFWEnOw4rimogwY

    • Align the holes of the interior knob with the spindle as shown in the second image.

    • Ensure the lock and and spindle are in a vertical position.

    • Push the interior knob in until both sides of the knob connect.

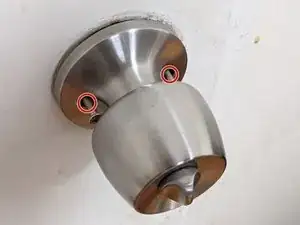

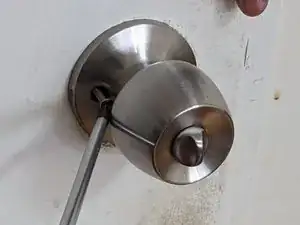

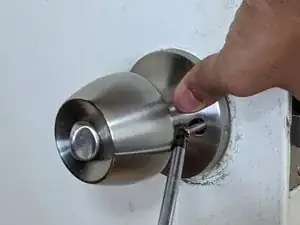

  11. LkqqRs42Ph1sTOov
    LkqqRs42Ph1sTOov
    JQLVrQdmOFXwKgRk
    miIPQwb25HNIhXIM

    • Insert the 38.1mm flat head machine screws through the two holes of the interior knob and tighten until the doorknob is secured.

    • These are the long screws that come with the doorknob set.

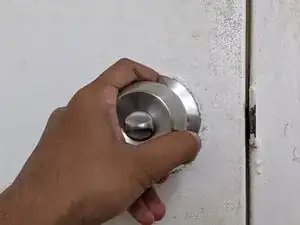

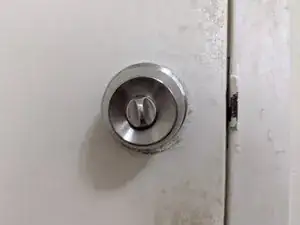

  12. 5VHKyffTEnrXg6vI
    5VHKyffTEnrXg6vI
    CWPiCK23RSc5drkU
    BnuSZvVEWbQ6TVBW

    • Test if the lock has been installed correctly.

    • After the lock clicks, try to rotate the knob.

    • If the knob does not rotate, then the installation of the privacy doorknob is successful.

Abschluss

If you would like to revert to the passage doorknob, use the same steps as the ones provided to do so.
