Toshiba Satellite L50-B Keyboard / Palm Rest Replacement

Geschrieben von: Arnaud Milesi
  • Kommentare: 0
Toshiba Satellite L50-B Keyboard / Palm Rest Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This tutorial will allow you to disassemble your Toshiba Satellite L50-B-2E2 in order to replace the keyboard and the palm rest it is attached to (see photo)

  1. Qekddmswwyh5CCmT

    • Visually check that the replacement keyboard is similar to the existing one.

  2. cPtqS1b1pO2xjj52
    cPtqS1b1pO2xjj52
    OUtl2arrWNSIQtZI

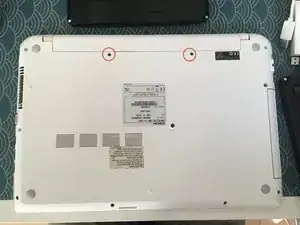

    • Unscrew the 2 battery retaining screws using a PH1 Phillips screwdriver.

    • Remove the battery by sliding it straight out, away from the computer.

  3. w3VrkGNk2AS3W14K
    w3VrkGNk2AS3W14K
    SfULxejZYXPsGFVZ

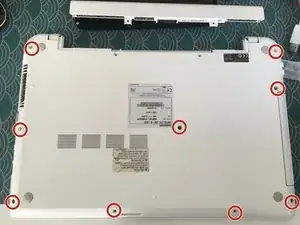

    • Take out the 9 screws with a PH1 Phillips screwdriver.

    • Using a Spudger or an iFixit Opening Tool available on the iFixit store, remove the cover, taking care at the various attachment points.

  4. HtAwbeWavY4js5vX
    HtAwbeWavY4js5vX
    Iis6m1dSWmfTelMi
    IW2ggZFojkprFaOO

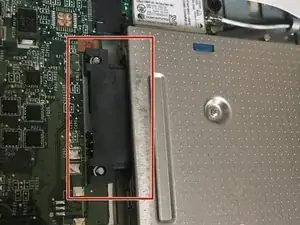

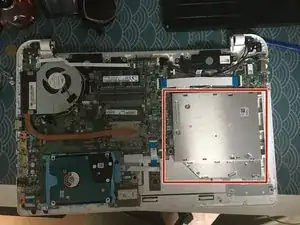

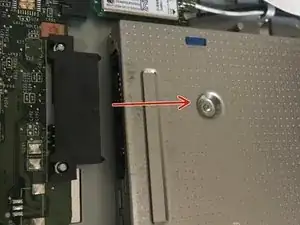

    • Take a look at the connector to the motherboard, then pull the disk drive straight out away from it to remove it.

    • Take the optical drive out.

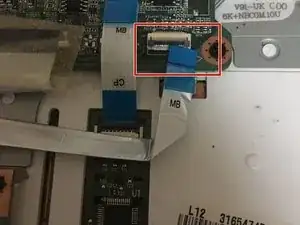

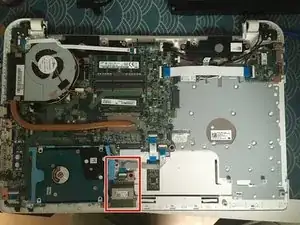

  5. OrwSL35wtZ6COsBX
    OrwSL35wtZ6COsBX
    TvvkbwUHLPmag6ex
    lKmi3cmBKMhObXIR

  6. MNfSMTNH5yLveTgw
    MNfSMTNH5yLveTgw
    TCETQjDwJYJmSh1k
    yKfxdQdVPlW6IDUW

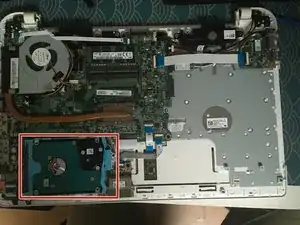

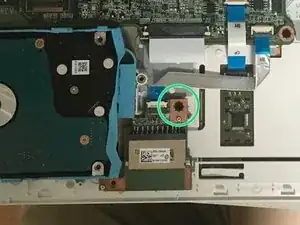

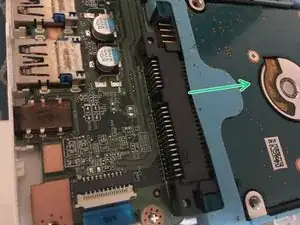

    • Remove the plastic wedge that secures the hard drive in place.

    • Pull the hard drive away from the black connector to disconnect it from the motherboard.

    • Remove the hard drive.

  7. N31scwUIUckl6ZZx
    N31scwUIUckl6ZZx
    EMgvVcGbnBSJKALf
    I6ClNAw2WxX2NxpR

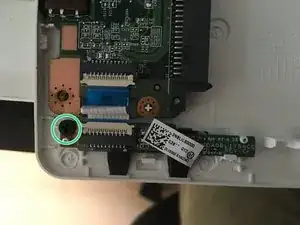

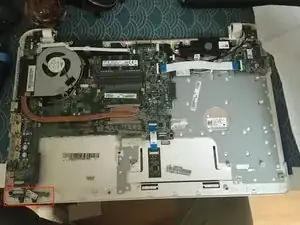

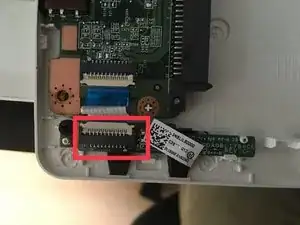

    • Disconnect up the cable connecting the LED status board to the motherboard. It is a ZIF connector.

    • Remove the screw using a PH1 Phillips screwdriver.

    • Remove the LED Status Board.

  8. QNbfv2j4tcPyk3hk
    QNbfv2j4tcPyk3hk
    ILqeU1JoEWaOPCwC
    gDZLQ4bGi2RNbbW3

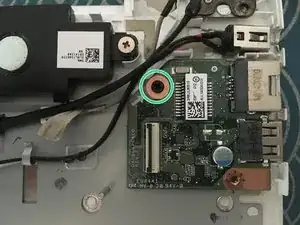

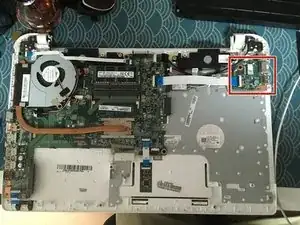

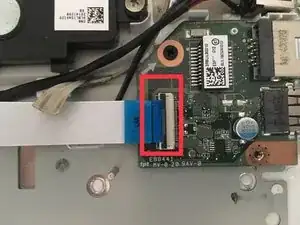

    • Disconnect the cable connecting the Ethernet / USB card to the motherboard. It is a ZIF type connector.

    • Remove the screw using a PH1 Phillips screwdriver.

    • Remove the Ethernet / USB board.

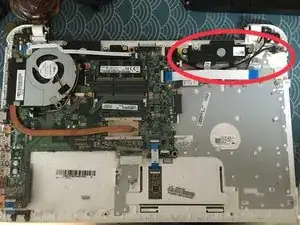

  9. UYkuJGXIOqHicNGQ
    UYkuJGXIOqHicNGQ
    QiaGZuiKshhoPQXN

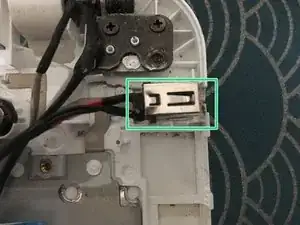

    aqwsAPaWeAQq4I5O

  10. KEW212Xr4EeWZNbB
    KEW212Xr4EeWZNbB
    RkkHpajdf23fMHmi
    q5w3Zvw3ERXv1kxN

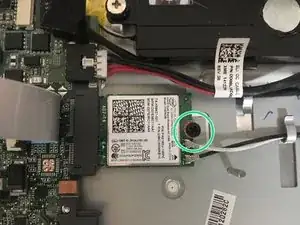

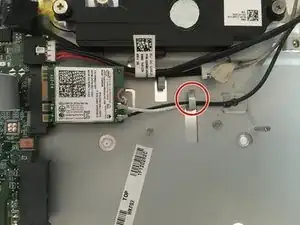

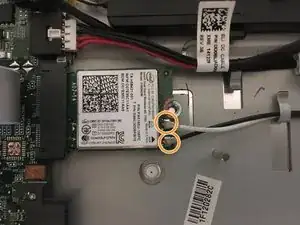

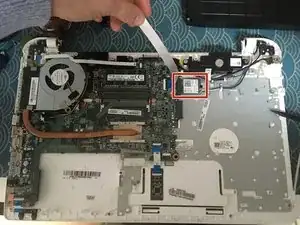

    • Remove the screw using a PH1 Phillips screwdriver.

    • Disconnect the 2 antenna cables.

    • Pay attention to the colors when reconnecting the two cables during reassembly.

  11. PXknMxWvdatEJN2R
    PXknMxWvdatEJN2R
    FnMTfOUylyhoV4EV

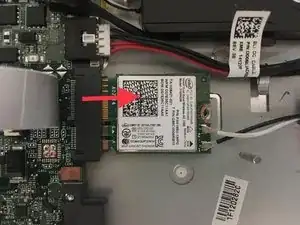

    • Pull the card straight out away from the motherboard to remove it.

    • Take note of the cable routing for reassembly.

  12. kKqlfnElXQHnZmGK

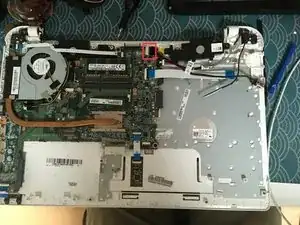

    • Unplug the webcam connector.

  13. 1BSjHS1jeJgYIKiD

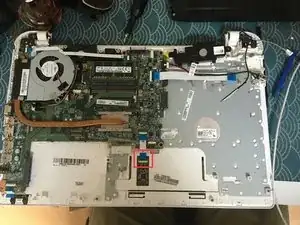

    • Unplug the ZIF connector on the trackpad securing the ribbon cable to the motherboard.

  14. eqdOH2h1kSWUD1Vd
    eqdOH2h1kSWUD1Vd
    N3IXvFWNdNoLvpoE

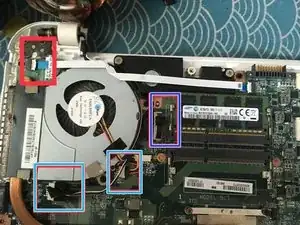

    • Disconnect the ZIF connector on the power button board.

    • Unplug the LCD screen video cable.

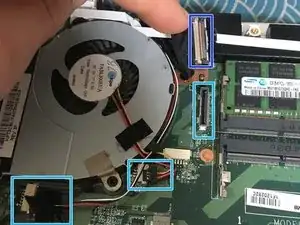

    • Disconnect the two plugs indicated:

    • The speaker cable (left)

    • The fan cable (right)

  15. kOpRxyNbXFuJH4CW
    kOpRxyNbXFuJH4CW
    RLAtZgLiXv2cVGbW
    yo6BtHYJERcVLsXH

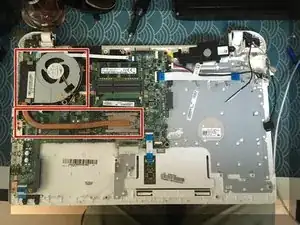

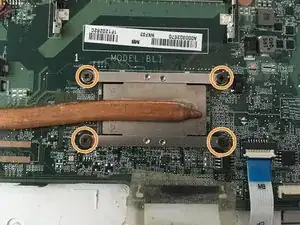

    • Using a PH1 Phillips screwdriver, remove the two screws securing the CPU fan.

    • Remove the four screws holding the heat sink to the processor with a PH1 Phillips screwdriver.

    • Remove the fan and heatsink.

    • Use care when separating the heatsink from the CPU; it is bonded with thermal grease which may act as an adhesive when it is old.

    • Always replace the thermal grease when reinstalling the heat sink to ensure a good thermal bond between the CPU and the heat sink.

  16. fxeYVkAihVVSmAi1
    fxeYVkAihVVSmAi1
    vcov1soyHYrUjfWV

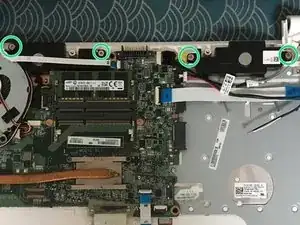

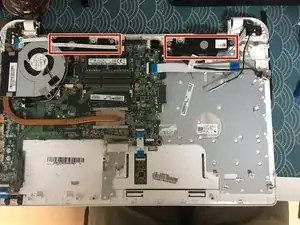

    • Remove the 4 screws securing the speakers with a PH1 Phillips screwdriver.

  17. AWkEJOQkwaMBtHWs
    AWkEJOQkwaMBtHWs
    FXCkNeCjgSibUXUs

    • Using a PH1 Phillips screwdriver, remove the four screws securing the motherboard to the chassis.

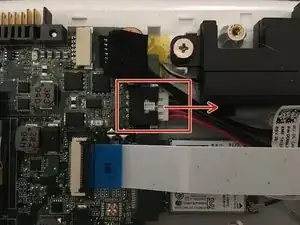

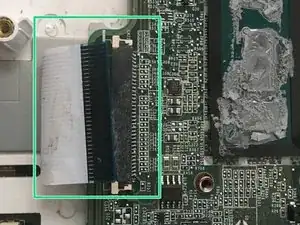

    • Remove the cable connecting the keyboard to the motherboard. Lift the tape holding the cable to the connector, then use a spudger to press out the two small tabs on either side of the cable side connector in a walking motion, alternating one side then the other.

  18. 2WNkBpsJVLAuUBQR

    • Remove the motherboard, taking care with the speaker cables, the various cables, and any fasteners bordering the sides of the motherboard.

  19. IMOPTayZVuuyo23W
    IMOPTayZVuuyo23W
    KQBoQNlf1dKWIrgm

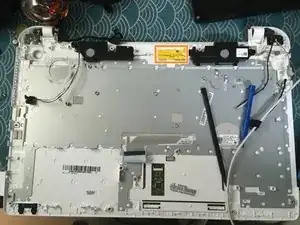

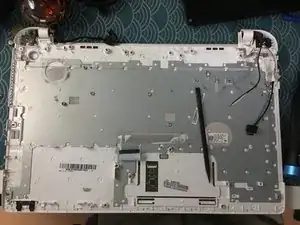

    • Remove the speakers, taking care with the cable retainers, and any Scotch tape securing the cables to the chassis.

  20. QknQRRFB21iqZuqw
    QknQRRFB21iqZuqw
    qXRvHOaJXjREijFX

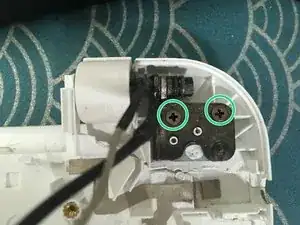

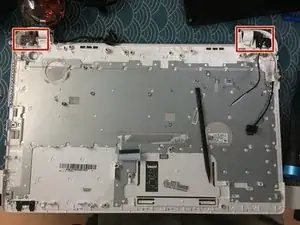

    • Unscrew the two screws on each hinge using a PH1 Phillips screwdriver.

    • To easily remove the hinges, raise the them by hand as if you were opening the screen in order to remove the them from the upper case.

    • Use a hair dryer, heat gun or iOpener to soften the adhesive that attaches the Trackpad to the upper case.

    • Press on the trackpad to unstick it and separate it from the case.

    • Too much head risks melting the micro-welds on the Trackpad, so be cautious with the use of a heat gun.

    • Be careful not to damage the Trackpad when taking it off. Although it is a relatively solid part, the glue is present on a large part of its surface and is strongly adhered. You can see the adhesive strip on a new part.

Abschluss

Congratulations! You have completed the disassembly!

To reassemble your device, follow the instructions in reverse, using the new keyboard assembly instead of the old one.
