Einleitung

  1. 1Gq2eDQgPnTciD2J
    • Turn the laptop upside down. Locate a removable cover, that is screwed shut near the front right of the laptop which is upside down.

  2. iKhebFfJIXRK4xnd
    • After removing the screw, using your finger slowly lift out and remove the cover.

  3. xIwtWIiFijlboxit
    xIwtWIiFijlboxit
    dhqHxJFGaAEsrJik
    DlgRwI3oxq5gIaGa

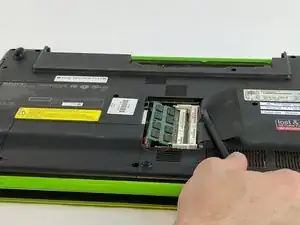

    • Lift the flap

    • Locate two connectors on both ends of the short end. This will release the ram, if properly done the long end should slightly lift.

    • The ram is to be removed at a 45 degree angle.

  4. S5IdPBEnRBLJcULb

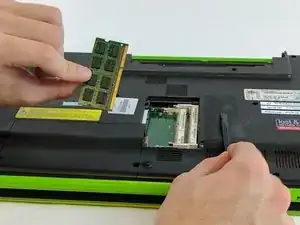

    • Pull out cleanly and you have now successfully removed the ram.

Abschluss

To reassemble your device, follow these instructions in reverse order.
