Einleitung

  1. TJDlauYAvcrrmYkc
    TJDlauYAvcrrmYkc
    ZBc1cSw4ilr5qvXB
    s415cvJ2coxJansi

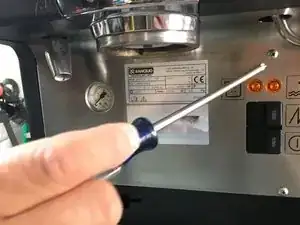

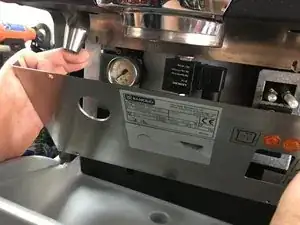

    • Making sure you first take out the drip tray.

    • Start unscrewing the four screws on the panel. And take panel off ,should come off easily

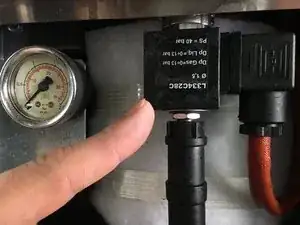

  2. nSMOmVQRJeSnnfVx
    nSMOmVQRJeSnnfVx
    ecjoXsnQZI2oAQZH
    FvuUhdd5pG4lFlL5

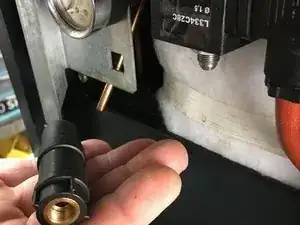

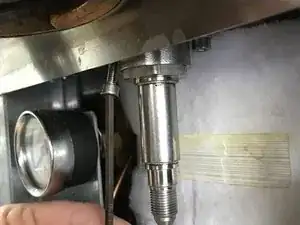

    • Start unscrewing the Disperse Flow Plastic Spout Breaker using a 3mm Allen wrench

  3. 6grnSuB5SThSiYxM
    6grnSuB5SThSiYxM
    Y4KsruwhFsyDLPy1
    oHdkJylJjZxyQHYk

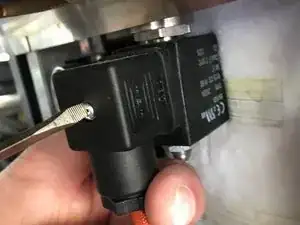

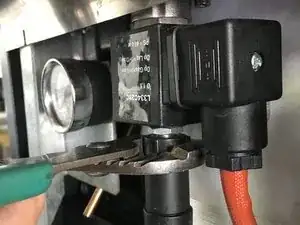

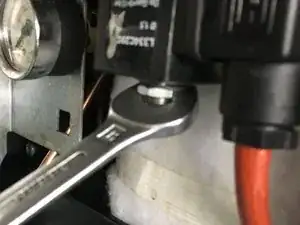

    • First you want to remove the nut at the bottom using a 14 millimeter Wrench .

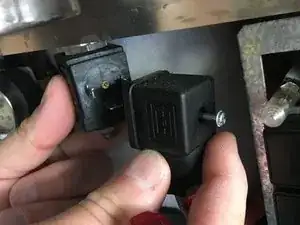

    • Then you want to take the Group solenoid turn to side and unscrew electrical connector from it and pull.

  4. qXgK2TtnXqyfNq6x
    qXgK2TtnXqyfNq6x
    VX2aRMXHQIaWK1AN
    vWEoV1RIC2ZVWrPX

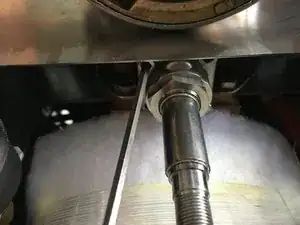

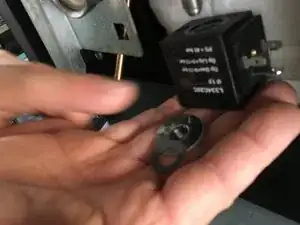

    • You want to start by simply taking off the coil along with the nuts and washers, then it allows access to take out the allens you just want to unscrew them with a 3mm Allen wrench

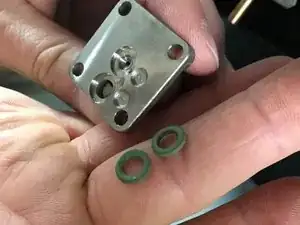

  5. jNc5XkvEhtMRHoh3
    jNc5XkvEhtMRHoh3
    Lw322C44YyQQC21R

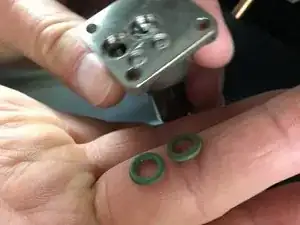

    • Finally you have reached the problem in the machine which is the solenoid

  6. r1PEaebX2RNhWfJk

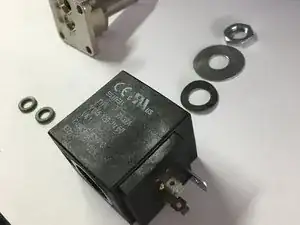

    • Now that you've found the problem it needs to be removed and replaced with a new part , once new part has come you resemble it and do all the steps in reverse .
