Einleitung

A video about replacing Navigation in BMW E39 http://www.youtube.com/watch?v=rmcAAYLmL....

  1. QobQBNP5YeBFhnbD

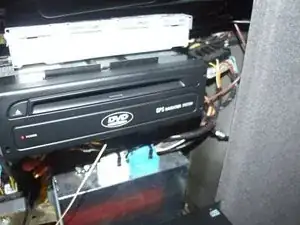

    • Replacing a faulty Navigation computer CD or DVD drive or Upgrading an older navigation CD drive to the BMW DVD Navigation Drive is a plug and play upgrade in all model years

    • BMW MKIV DVD Navigation drives can be purchased from online retailers. Do a google search for "BMW MKIV Navigation Computer" for available options

  2. TgNoNEWLLVAUWHMy
    TgNoNEWLLVAUWHMy
    DvNT5IkQeqYNSGXX
    6FXsaBVqwbnaQPiH

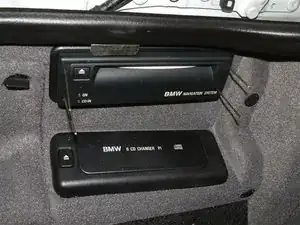

    • Different BMW models require a slightly different process to remove the navigation computer however all are generally the same. The following photos show removing the navigation computer in a BMW E38 7 Series

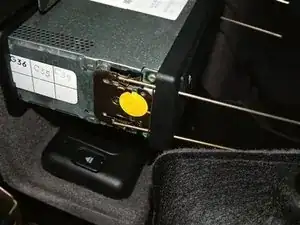

    • In the back of the car locate the navigation computer drive and insert 4 pieces of a cutup coat hanger or a "Radio Removal Tool" into the holes of the drive

    • Once the tools are in the holes you can grasp the navigation drive faceplate and slide it out

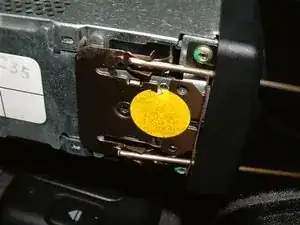

    • Photo shows closeup of where the tools release the locking mechanism

  3. hoV3W2B3NFsEIVkm
    hoV3W2B3NFsEIVkm
    EiGLCoeq22eHkeFP
    T4VWjHSSMLF2E5Gh

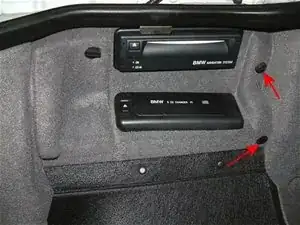

    • Remove the plastic trunk liner screws to gain access to the wiring behind the navigation computer

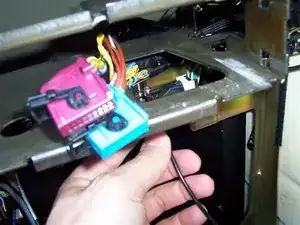

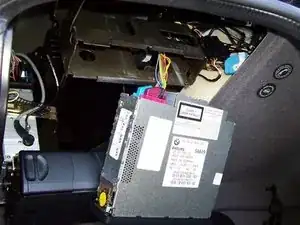

    • Slide out navigation dive and disconnect the blue and magenta plus

  4. WqdAlVBEEqKcOvMv
    WqdAlVBEEqKcOvMv
    nXHlQQUFnAtGyFY6

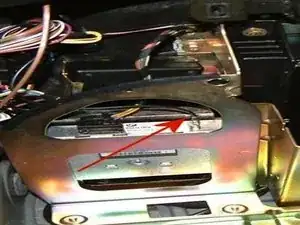

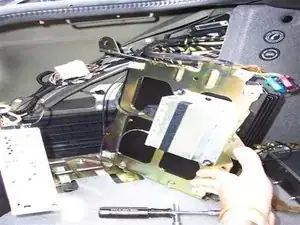

    • If your BMW is a 2000 Model Year or older, you will need to disconnect the separate GPS receiver located to the left of the navigation drive in the E38 or behind the amplifier bracket in the BMW E39

    • Once disconnected, connect the antennna wire to the back of the new navigation drive and remove the old separate GPS module as it will no longer be required

  5. jXnqYXFBMt2EAAHk
    • Connect the Navigation Drive and slide back in place. Then leave car off and outside for 20 minutes in order for the unit to recalibrate to the current location

    • For more information do a google search for "BMW MKIV Navigation Computer"

Abschluss

To reassemble your device, follow these instructions in reverse order.
