Replacing IBM ThinkPad 560z Speaker

Geschrieben von: Derek Driscoll
  • Kommentare: 0
Replacing IBM ThinkPad 560z Speaker

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

How to replace the speaker.

  1. 31DPPCuVNwNdkTrg

    • Slide the battery release latch to the right.

    • Pull out the battery out towards the front of the device.

  2. VLkFL2UfT6Avn6wX

    • Remove the 7 mm Phillips #0 screws.

    • Remove the 10 mm Phillips #0 screws.

    • Remove the 14 mm Phillips #0 screw.

  3. rqiK4t1SMgjWJd3E
    rqiK4t1SMgjWJd3E
    usAFDpMjSYxJoFyN

    • Open the flap on the left hand side.

  4. KdhnFNUWxMDIFbht
    KdhnFNUWxMDIFbht
    RBfWQgDyMXEGKqN1

    • Insert the plastic opening tools between the right and left sides of the latch.

    • Pry the right side of the latch, and then pry the left side to detach the laptop's cover.

  5. Ro5COeuEA5aqJLNB
    Ro5COeuEA5aqJLNB
    qXOgpy1FtrImEMkr

    • Open the flap on the right side.

  6. YZb4nrmyEiOPCkvT

    • Insert the plastic opening tools towards the right side of the latch.

    • Gently pry the right side out to release the top cover.

  7. v6xk3s11FGIGoEuL
    v6xk3s11FGIGoEuL
    4rssWmqTTQafTdhg

    • Lift the keyboard slowly.

    • A cable connects the keyboard to the motherboard. If you are not careful, you will damage the cable.

  8. Fsqs41ePJIKwPW1j

    • Use your fingers or a spudger to detach the connector.

  9. UyDXc35JRDNJVCjX
    UyDXc35JRDNJVCjX
    HCyNMETCC5vDRCiV

    • Carefully lift and remove the keyboard.

  10. IbWNuZFfSwXvaxhn
    IbWNuZFfSwXvaxhn
    WCKui4hyAxvFIqQR

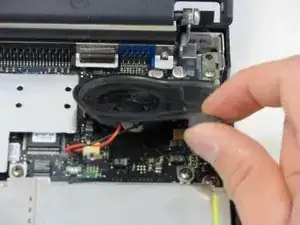

    • Slowly and carefully lift the speaker with your fingers.

    • The port that the speaker plugs into can be easily removed from the motherboard if not careful! Unplug the speaker with extreme caution!

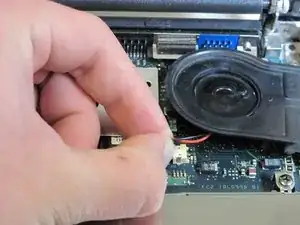

  11. ZlvNH25SQe1FnrV1
    ZlvNH25SQe1FnrV1
    PiE5AEAwGUfhLXYH

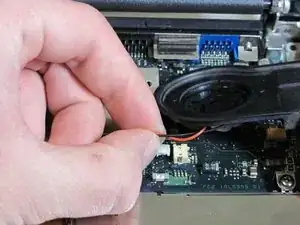

    • Use your fingers to unplug the wires from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
