Einleitung

  1. 1qdl3yQQcYKLTqhW
    1qdl3yQQcYKLTqhW
    3SDsEWVp2UmWtfhB

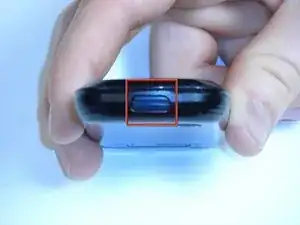

    • Press down on the button located at the bottom of the phone, using the center ridge as a guide.

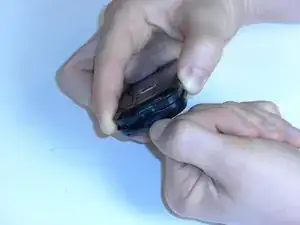

    • Pull the phone apart from the bottom, keeping the button pressed down.

    • CAUTION! The plastic opening tool may be used to gain leverage. Some force is required to open.

  2. JadGyKgV6NZbVaLG

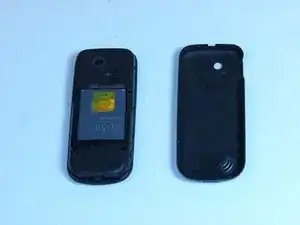

    • Remove the back cover to expose the battery.

  3. 4GwWfQRKHGf3D6GM
    4GwWfQRKHGf3D6GM
    ZgENGEjdAYFE3tKu

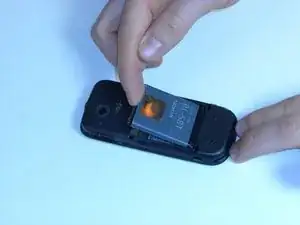

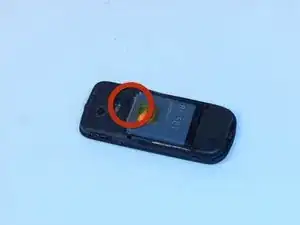

    • Place a finger or plastic opening tool in the gap between the battery and the phone.

    • Gently lift the battery out.

  4. UkRow1BO4qMBpJZC
    UkRow1BO4qMBpJZC
    iSaF6gOPP4FgCuSt

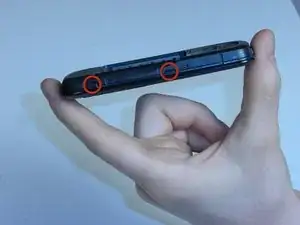

    • Locate the plastic latches on the left and right sides of the phone.

    • Insert the plastic opening tool or a fingernail into each latch and pry them open individually.

    • CAUTION! Some force is required.

  5. TqhRWtNTlwa6NXpX
    • Remove the faceplate with the number pad attached.

  6. hHunDFP2pSMUkOsv

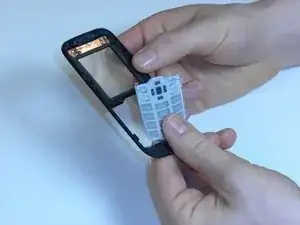

    • Turn the faceplate so the number pad faces downward.

    • Lift the number pad out of the faceplate.

    • Apply new faceplate.

    • Follow the instructions in reverse order to reassemble the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
