Einleitung
Ersatzteile
-
-

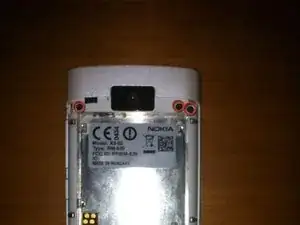

Remove the three 3mm black screws on the top of the phone.
-

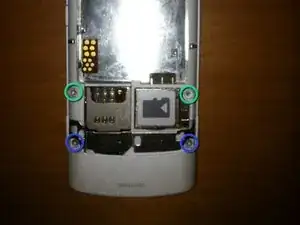

Remove the two 5mm screws.
-

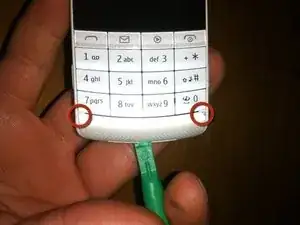

Loosen these two screws at the bottom of the phone.
-
-
-

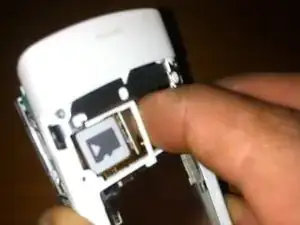

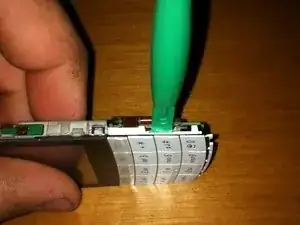

With a plastic opening tool remove the little piece of plastic in the bottom of of the phone.
-

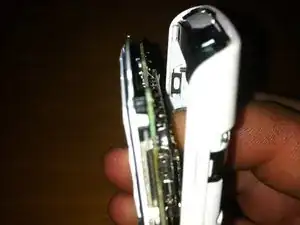

To remove the logic board assembly push from the rear of the phone.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
