Replacing Olympus Stylus Tough-6000 Battery/Memory Card Cover Lock

Geschrieben von: Shannon Cooney
  • Kommentare: 0
Replacing Olympus Stylus Tough-6000 Battery/Memory Card Cover Lock

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

I will be providing clear and easy steps on how to replace your Battery/Memory Card Cover Lock on your digital camera with out having to buy another one.

  1. Q5HPjIAdWbbaZZGY

    • Turn the camera so the bottom is facing upwards.

  2. rM1qAK1ASJ5b2ENT

    • First pull open latch to expose two screws covering lock.

    • Use your Phillips #00 screwdriver and unscrew both screws.

  3. uo2kk6pEw6aqAR6b

    • Remove the small black lock.

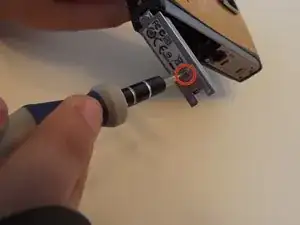

  4. vuReyriddTq6JwHd

    • Turn latch over.

    • There will be one screw visible holding down the cover.

    • Unscrew single screw with your Phillips #00 screwdriver.

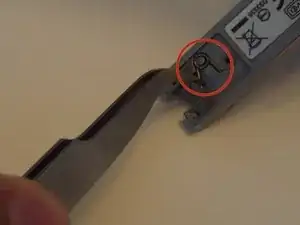

  5. AE2x5XObCcZXcuQv

    • Use your tweezers for this step.

    • After unscrewing the screw you will see a single spring.

    • Make sure spring is in place to be able to close lock properly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
