Replacing Sega Dreamcast Power Block (Power Supply)

Geschrieben von: wkwong
  • Kommentare: 3
Replacing Sega Dreamcast Power Block (Power Supply)

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

7 - 15 Minuten

Einleitung

A guide to remove power block from the Sega Dreamcast.

  1. rdFJlNVwMtT3hJRD
    rdFJlNVwMtT3hJRD
    BGojrPldMPBm4Yew

    • Verify that the console is disconnected from the AC outlet before you begin.

    • Flip the console over on its back.

    • Take note of your model number, in case replacement parts are needed.

  2. HDbDfaw3TOGBMCHi
    HDbDfaw3TOGBMCHi
    b12VKhkOV53BrRt3
    ZxvUK2uvuTY4pH1H

    • Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.

  3. j4mn2GW3UHoTNIAH

    • Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.

    • Note: Remove the expansion bay to locate the fourth screw

  4. KGQFrciudkmBDQJX

    • Internal components can be loose. Be careful that they do not fall out when removing the cover.

    • Turn the console right side up.

    • Remove the top cover by gently lifting the upper portion of the console.

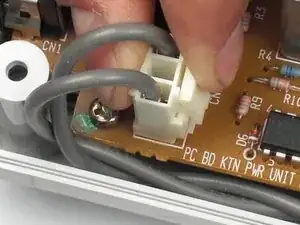

  5. jyBUYSfshPqZkPFi
    jyBUYSfshPqZkPFi
    CFapUZAT5FMHNsIG

    • Verify that the console is disconnected from the AC outlet before you begin. If you have just powered off the system, give the capacitors a few minutes to discharge before you begin working.

    • Remove the white female pin header by clamping the clip and pulling it up gently from the power board.

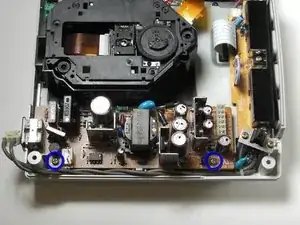

  6. VNFffdBYp2eUXyHN

    • Remove the two 10mm Philips #02 screws that are fastened to the power block.

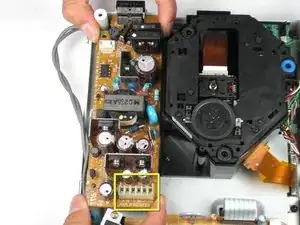

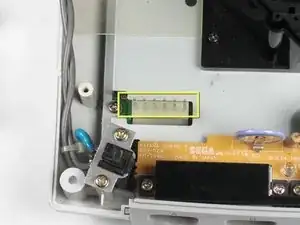

  7. XgMCYlIimpObCCZU
    XgMCYlIimpObCCZU
    OaYoOp12FpdttLGO

    • Do not bend the male pin header between the mounted head when you remove the power supply from the chassis.

    • Remove the power board by using both hands to gently lift the power board away from the console.

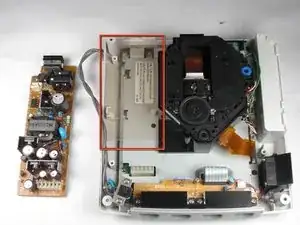

  8. l3TNMLFWvv3Yd6i5

    • Remove the clear plastic film that is tucked between the power supply and the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
