Replacing VTech MobiGo Touch Learning System Speaker

Geschrieben von: RBansil
  • Kommentare: 0
Replacing VTech MobiGo Touch Learning System Speaker

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This page is for disassembling the speaker inside the device. Before following these steps, please refer to the Disassembling VTech MobiGo Touch Learning System Case Guide first.

  1. P4tgNGNP5KAfotOW

    • Remove the battery covers and the four batteries.

  2. ENhAVcTxAv2CpMSJ
    ENhAVcTxAv2CpMSJ
    POiVIGRsECMtGcLg

    • Remove the four plastic caps with a metal spudger to expose the 6.0 mm Philips JIS #0 case screws.

    • Remove the eight 6.0 mm JIS #0 case screws.

  3. RNsQPuKGIAPYJmVo
    RNsQPuKGIAPYJmVo
    mSPdBwJUoIkeHpHB

    • Using a plastic opening tool, separate the two pieces of the case carefully.

  4. ZOp5ELY1LZuJu1Uw
    ZOp5ELY1LZuJu1Uw
    dLBLGnHLPY2wYI2X

    • The speaker will be attached to the back of the case.

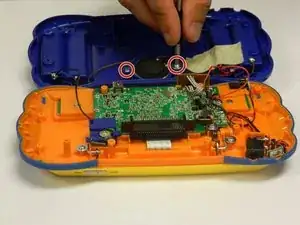

    • Unscrew the two 6.0 mm Philips J0 screws.

    • Careful! The wires are still attached to the back of the case and to the speakers.

  5. Mj1XsGAkseRwbZaF
    Mj1XsGAkseRwbZaF
    SQQjeEHSWWaSHN6C

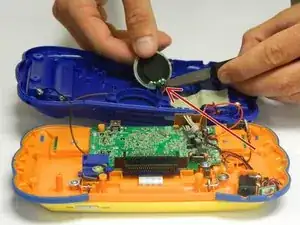

    • Lift the round speaker with a plastic opening tool.

    • Remove the two wires connected to the speaker.

    • You can use wire cutters or regular needle nose pliers to disconnect the wires from the speaker.

    • Once the wires are disconnected, remove the speaker from the back of the case.

  6. 1EkyqxRJRtZIsKMm
    1EkyqxRJRtZIsKMm
    VG1sJgMixDLPGqKg

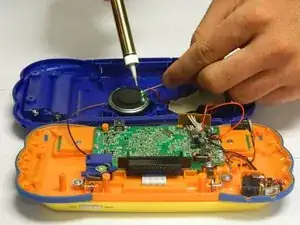

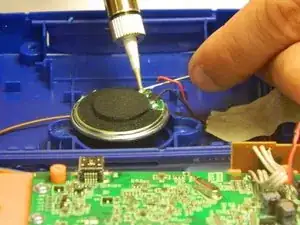

    • Solder the wires to the appropriate spots on the new speaker, making sure that both wires are properly connected.

    • The wires may be hot.

  7. lMICHfIhcaDvtG6L
    lMICHfIhcaDvtG6L
    GxCbtDDkFAtlYeWq

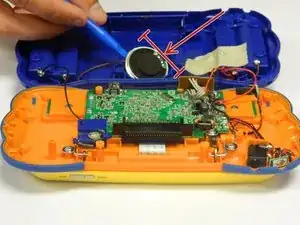

    • Insert the new speaker into the hatch located in the middle part of the panel using a plastic spudger.

    • Make sure the speaker is the right size for the panel.

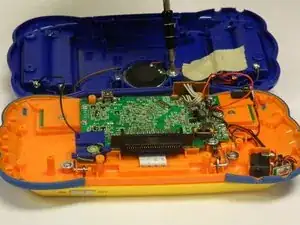

    • Once the speaker is properly placed, screw in the two 6.0 mm Philips J0 screws.

    • Do not over tighten the screws or the panel will break.

Abschluss

To reassemble your case, follow the case instructions in reverse order.
