If the speaker in your Casio Exilim EX-Z850 is not working or does not produce clear sounds, you will need to replace it. This guide will show you step by step how to access the speaker inside of your camera.
Werkzeuge
-
-

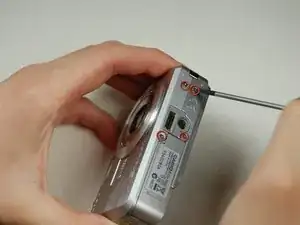

Remove the screws on both sides and the bottom of the camera with the Phillips #00 screwdriver.
-
-
-

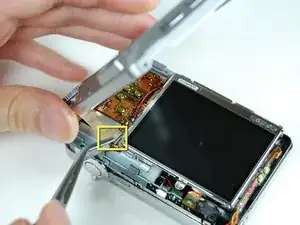

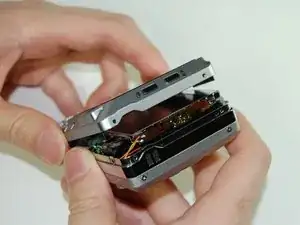

Use the tweezers to gently peel the ribbon from the contents inside of the camera, leaving it connected to the rear casing.
-

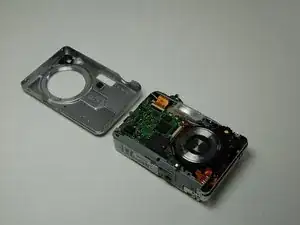

Set aside rear casing.
-
-
-

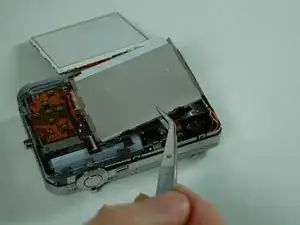

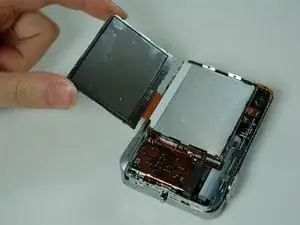

Pry the LCD casing from the tape that is underneath it and then flip it to the opposite side to expose the contents under it.
-
-
-

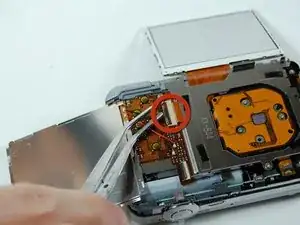

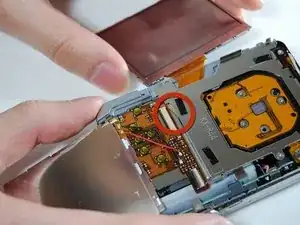

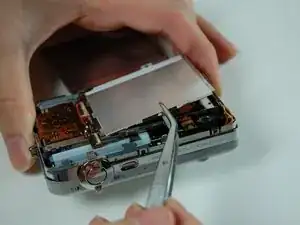

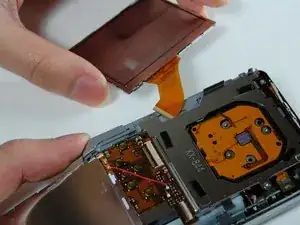

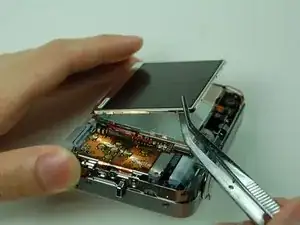

Use the tweezers to flip open the connector that is holding the ribbon connected to the LCD screen in place.
-

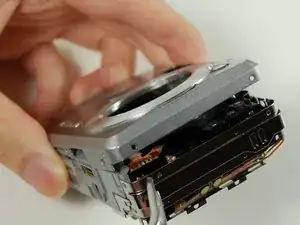

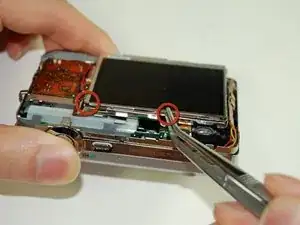

Remove the LCD screen with the ribbon from the camera.
-
-
-

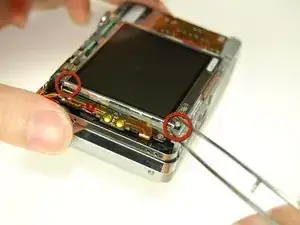

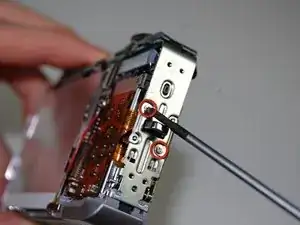

Remove two screws on the side where the battery is located using the Phillips #00 screwdriver.
-

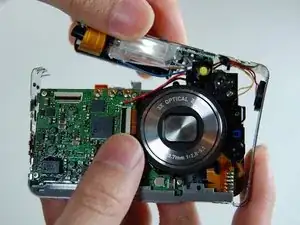

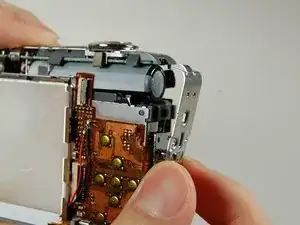

Pull the side casing so it becomes dislocated from the top of the camera frame.
-
-
-

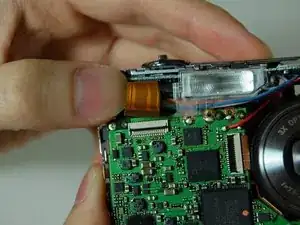

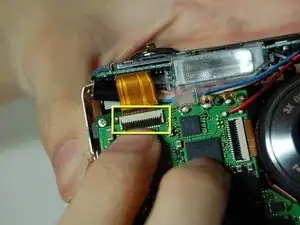

On the front of the camera, near the flash flip, there is a connector holding a ribbon. Remove the ribbon from the connector.
-
-
-
Carefully remove the L shaped frame from the camera by popping the frame off the bumps and tabs located at the bottom of the camera.
-

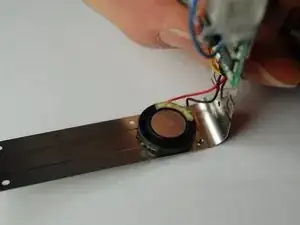

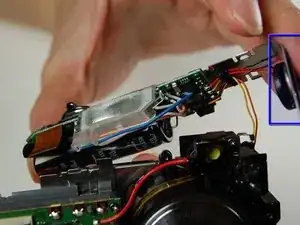

The blue box is the speaker
-
To reassemble your device, follow these instructions in reverse order.
