Replacing the Audio Jack on a Hofner Violin Bass

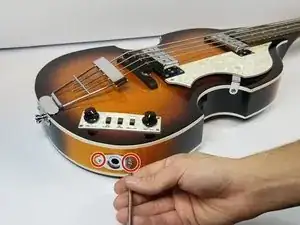

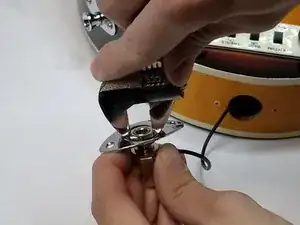

Using a Phillips #1 screwdriver, remove the jack plate from the bottom corner of the guitar.

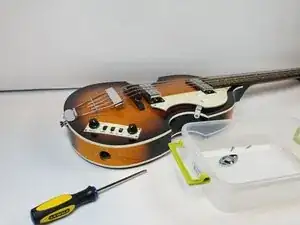

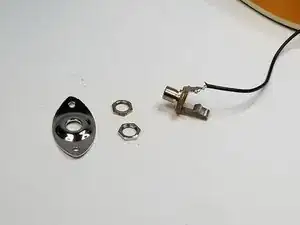

Place the components in your container in order to keep track of them.

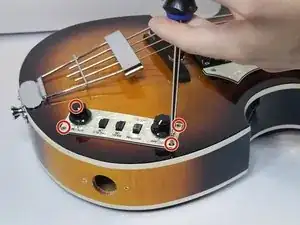

Using a Phillips #1 screwdriver, remove the four screws attaching the control panel to the instrument.

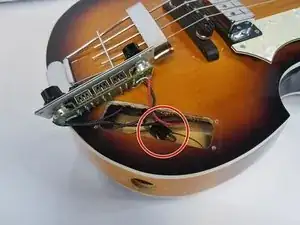

Locate the jack if it has fallen inside the guitar.

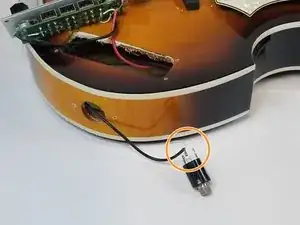

Pull the jack and attached wire through the jack hole.

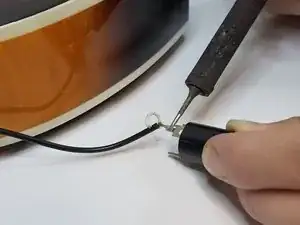

Using your soldering iron, melt the solder connecting the ground wire to the old jack.

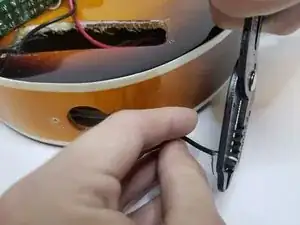

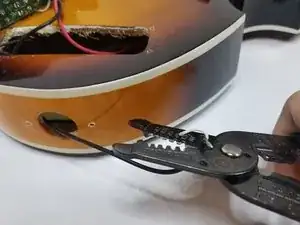

Using your wire stripper tool, cut the end of the wire off.

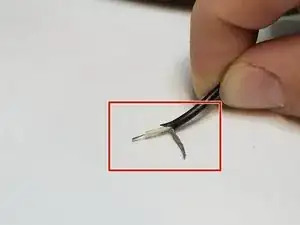

Then, strip the wire so it looks similar to the wire in the red box.

Now we will prep the wire for soldering.

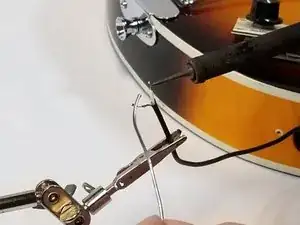

Secure the wire using the helping hands tool.

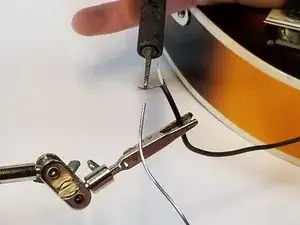

Heat one of the conductors with the soldering iron.

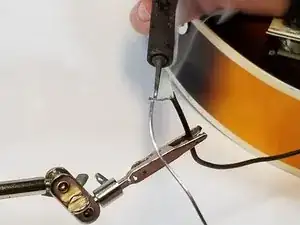

Maintaining contact between the iron and wire, carefully apply solder to the conductor.

Repeat this process for the other conductor.

Next, prep the jack for soldering.

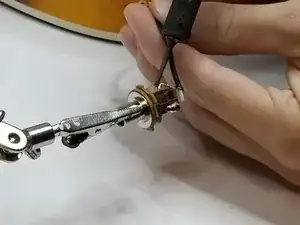

Secure the jack using the helping hands tool.

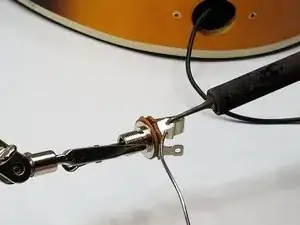

Apply the iron to the first conductor tab to heat it.

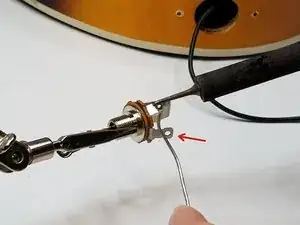

Now apply the solder to the heated tab.

Repeat this process for the second conductor tab.

Now we will proceed to solder the components.

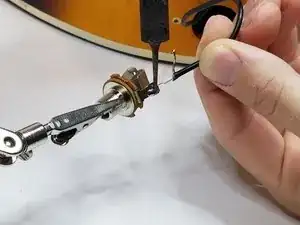

Touch the hot wire to the hot conductor tab and heat with the soldering iron until they melt together.

Repeat this process, connecting the ground wire to the ground conductor tab.

Put the first nut on the output jack shaft.

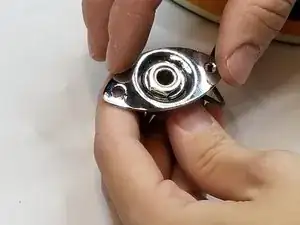

Place the jack plate on the shaft.

Put the second nut on the shaft, tightening with a crescent wrench.
