Einleitung

The speaker and the screen are physically attached, so they must be replaced together.

  1. sXZJyRxFN5pZwTMP
    sXZJyRxFN5pZwTMP
    UsFfuWFXHCcXZfgE
    Oi1BdUtkG5YHyD1C
    • To prevent shock, press down on the power button located on the top of the phone until the phone shuts off.

    • Press down on the small gray button located on the back of the phone.

    • Slide the back plate down and off.

  2. 5U3enUUPIFdCbiQL
    5U3enUUPIFdCbiQL
    vYCfJKQYRKpcGAjU
    • To remove the battery, begin by holding the phone sideways.

    • Then, insert your thumb in the groove below the battery and push the battery up and out.

  3. ZVsjlTuWAApiuGSp
    ZVsjlTuWAApiuGSp
    JROxU2CMeXRFdKIh
    pLegYRyqOvdNJJOr
    • Locate the spudger. A photo of the correct spudger is provided to the left.

    • Turn the front of the phone to face you. Find the two small square holes on the bottom left and right sides of the faceplate.

    • Insert the spudger into each square hole and push up to detach the face plate.

  4. NNTwflPgSlImXGRj
    NNTwflPgSlImXGRj
    g4hPkWchcNFiINmF
    • Note: The keypad will be loose and may fall off during this step.

    • Pull the face plate up and off of the phone.

    • To remove the keypad, simply lift it off the phone.

  5. g2ZkpwKKAyQZfWOy
    g2ZkpwKKAyQZfWOy
    jykhUVtHol2nQjfP
    • Locate the 6 screws on the metallic sheet that previously held the keypad. (This sheet, shown in the pictures, is the top side of the motherboard).

    • Note: 2 of the screws are on the bottom corners, 2 are on the right and left edges of the phone below the screen, and 2 are on the very top corners of the phone, above the screen.

    • Warning: The middle two screws are attached to the base of the phone with two black plastic rings. Use tweezers to remove the screws carefully to avoid breaking the plastic rings

    • Use a size T6 Torx screwdriver to remove each of these 6 screws.

  6. NAhBOOSke346IaIi
    NAhBOOSke346IaIi
    Se4OPOTagCJQvVEw
    aTLdAghGbeDuBrRZ
    • To remove the motherboard, lift it up and off the phone.

    • Note: The screen will still be attached to the motherboard.

  7. oXYvMlQEgFAIPnEh
    oXYvMlQEgFAIPnEh
    sFryROZqXucy2PpU

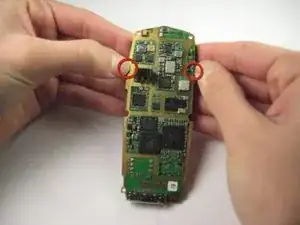

    • Turn the screen/motherboard so that the screen side is facing down. The first photo illustrates this step.

    • With your fingers, push the black tabs on the upper left and upper right sides of the motherboard outward. The second photo illustrates this step.

    • With the tabs pushed outward, you should be able to pull the screen off.

  8. x2xMrBRJKyVQvPvl
    x2xMrBRJKyVQvPvl
    IlK2gNGlQd35PaRi

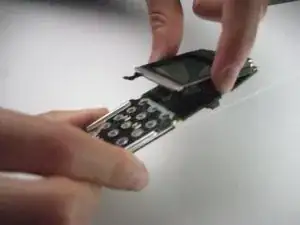

    • Turn the motherboard so that the screen faces upward.

    • Holding the sides of the screen, pull the screen up and off of the motherboard.

    • Note: When you remove the screen from the motherboard, resistance is normal.

    • Replace old screen containing the speaker with a new screen/speaker.

    • Before reassembling, identify the two black plastic tabs on the screen/speaker, as seen in the 2 photos. When replacing the screen/speaker, make sure that these tabs are properly inserted just above the keypad.

    • To finish reassembly, follow the rest of the steps in reverse.

Abschluss

To reassemble your device, follow these instructions in reverse order.
