Replacing the ball bearing in Squeaky Ceiling Fan

Geschrieben von: SengChoy Liew
  • Kommentare: 4
Replacing the ball bearing in Squeaky Ceiling Fan

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 Stunde

Einleitung

This repair guide will solve the squeaks sound of the ceiling fan after few years of operation. Youtube guide available show how-to replace the two wear out ball bearing.

  1. Cmal5eRbTTNNxHJO
    Cmal5eRbTTNNxHJO
    PadgGCAsI3eFXtvR

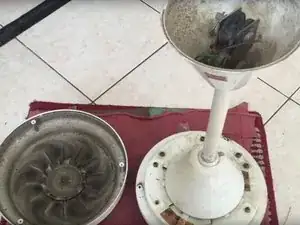

    • First, remove the mounting screws of the plastic cover located along the brim, farthest from the centre.

  2. v4KAhcrHOcuquMpN
    v4KAhcrHOcuquMpN
    SYSoOEBZGC526Xin

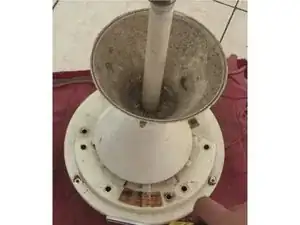

    • The iron cage is firmly secured by three screws.

    • Out of the six mounting screws located along the inner circle, three of them will be the mounting screws for the iron cage.

    • Remaining six screws will be the mounting screws for the fan blade.

  3. DLDaOuQJKscpSGVV
    DLDaOuQJKscpSGVV
    rRnq1F3ELrLn1rAp
    ZVyaZ4jxNbMpstCY

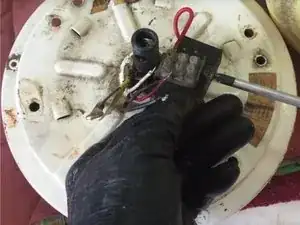

    • Remove the wiring from the terminal block and the capacitor from the bracket.

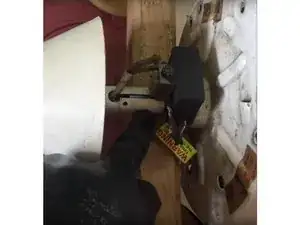

    • Unscrew the 13mm mounting bolt to remove the supporting rod.

  4. R2ttONHaWulPrULK
    R2ttONHaWulPrULK
    uWhUWBuYKXw2dVuR
    iCwIUjKaMSvOTphj

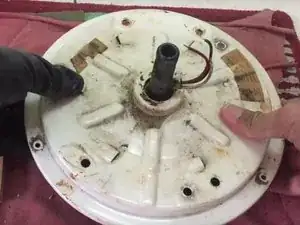

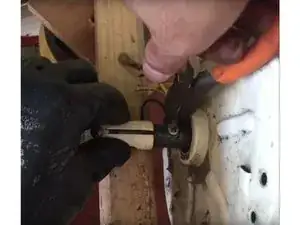

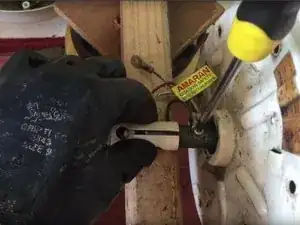

    • Remove the safety cord.

    • Use plier to loosen the holder.

    • The back plate can be removed once all the electric components are removed.

  5. Jj1rOSfT3JKxK3My
    Jj1rOSfT3JKxK3My
    SUDUFEEua1pIAwEp

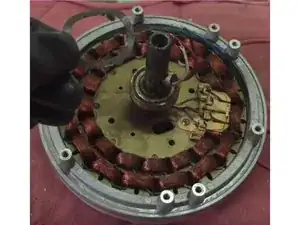

    • Be sure to keep the O-ring safe.

    • Knock off the back plate by positioning it up-side down.

  6. YiovPHWhtpewhKXF
    YiovPHWhtpewhKXF
    XaGiCH1CSBVO2hHx

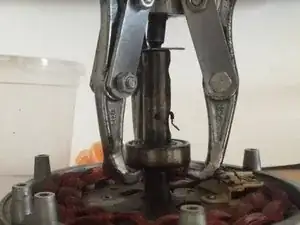

    • Use three crawl puller, to remove the bearing.

    • Spray lubricant prior to extraction.

  7. GGHpOFpQVmTaZ2ms
    GGHpOFpQVmTaZ2ms
    3OPEnRHCa2kkNXMk
    4LEoItXYtTMbDEBR

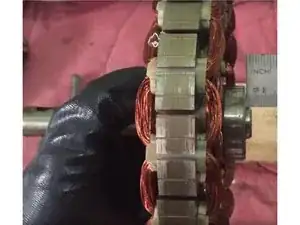

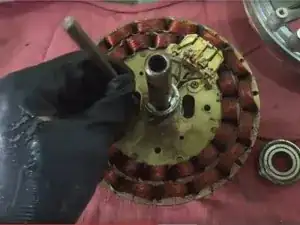

    • Use a two crawl puller to remove the bearing located 4mm away from the tip.

    • Alternatively, it can be knocked off using a chisel from behind through the hole.

    • A long chisel becomes handy !

  8. iFAYB5OXITsBB6LR
    iFAYB5OXITsBB6LR
    hVRVgeympVCPuMQJ
    lSxMDBslagrfMcxH

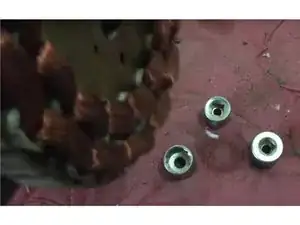

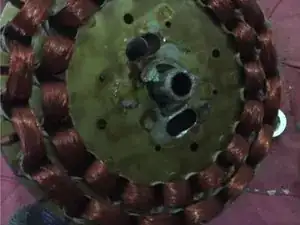

    • Use three sockets to level the rotor core, while giving the bearing a final push.

  9. YXjErJ4ycTxiyXCw
    YXjErJ4ycTxiyXCw
    4UNYv4PKREjHN6rP

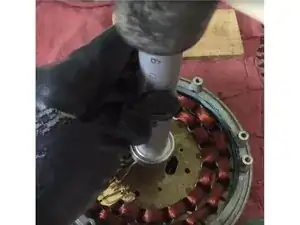

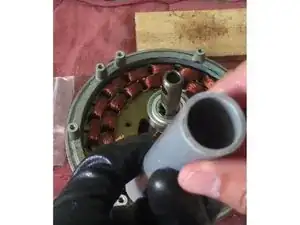

    • A 3" long PVC tube of 6/8 " inner diameter, is used to install the new bearing (6302z for this model of fan).

    • Rubber mallet is used to punch the PVC tube during installation.

  10. ihjAciey1SSXPRhF
    ihjAciey1SSXPRhF
    VJXiW2FBjhQasi6j
    u4ZwUQAWjgZknOUt

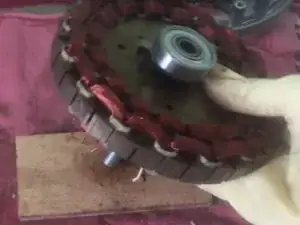

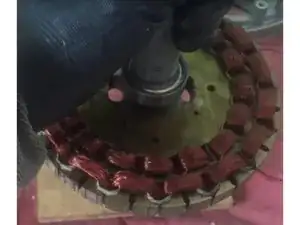

    • Use a rubber mallet to install the other bearing onto the shaft. Rubber mallet or wooden mallet prevents damage to the bearing.

    • The same PVC tubing can be used to give the bearing a final push.

  11. vfTYBCgPadqT6SX3
    vfTYBCgPadqT6SX3
    RJcZ1ZBSFT5SBt2g
    leRxkqVXpV5sHIG2

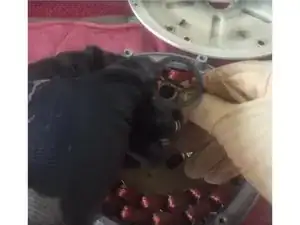

    • Apply mechanical grease around the inner wall of the iron cage.

    • Be sure to install the O-ring.

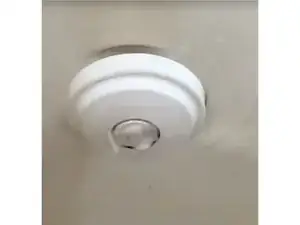

    • Installation of fan requires electrical knowledge. Certified personnel are required to install it back on the ceiling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
