Replacing your video card.

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

]

  1. IfMlQARPNtOl1wjC

    • Make sure power is off, and remove the side panel.

  2. MCqNYrLHOgMHU1XS

    • Remove the screws that hold the GPU in on the rear bracket.

  3. U14CZTCJDrVPNcIl

    • Unlock the PCI-e slot chip.

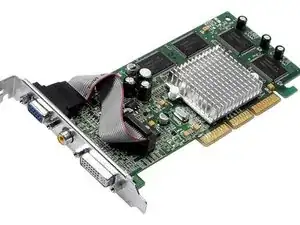

  4. DMEVRPWbIGC4tnbT

    • Remove the GPU by gently pulling on the card.

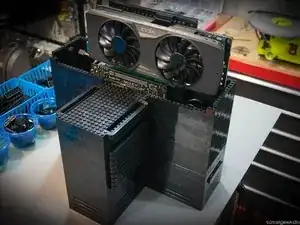

  5. NW2aPAdEKwWlRZNV

    • Hover the new GPU over the PCI-e slot.

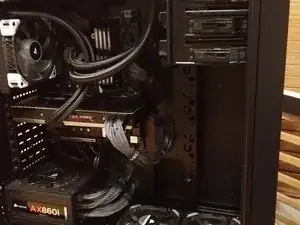

  6. NHfQJt6FyMMRRekP

    • Push down on the card to slide the connector into the slot.

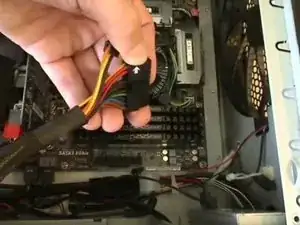

  7. W4HHEj5AiE1nOcqe

    • Ensure that the secure locks click into place.

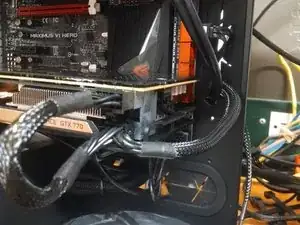

  8. wrOumhnlNPDBe3sw

    • Screw the rear bracket down to secure the card to the chassis.

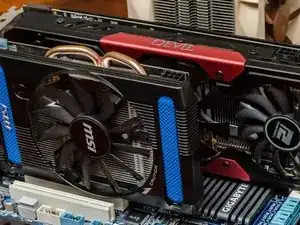

  9. kFtKbUxDEn5bPDTj

    • Reconnect any required GPU cables.

  10. kf2NAtojokZIN3GP

    • Reattach the side panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
