ResMed AirSense 10 Heater Fuse Replacement

Geschrieben von: Graham Michael Holland
  • Kommentare: 35
ResMed AirSense 10 Heater Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

If the humidifier function in your ResMed Airsense 10 ventilator has stopped working, a simple replacement of the heater fuse may solve the problem. This guide will also provide you with the information to completely replace the Heater Plate as well.

  1. QF32K44kDgiuFCOO
    QF32K44kDgiuFCOO
    Lhb6HyQC2gAqDtkc

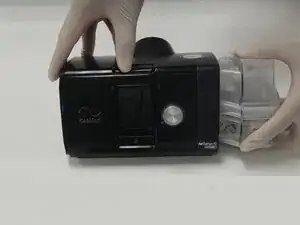

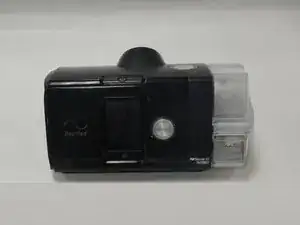

    • With medium pressure, place your thumb on the top of the tank and four fingers on the bottom.

    • Pull straight out on the tank until it releases from the device.

  2. ZNbvJmHUMJUffvWM

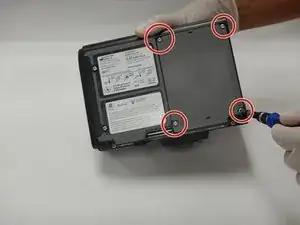

    • Remove the four 10mm screws from the bottom of the device with a Torx T10 screwdriver.

  3. olIoOvWjJZAjNnrZ
    olIoOvWjJZAjNnrZ
    IJfuWY5HuTuI5XMR
    XicIVhdZuoYE6HLY

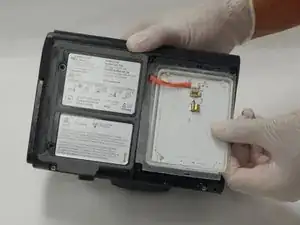

    • After the plastic cover has been removed you will be able to see the back of the heater plate. We will remove it from the device to making it easier to remove the fuse.

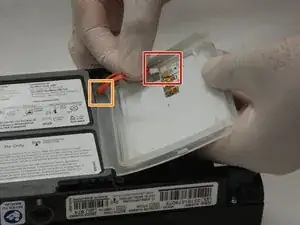

    • Pinching the three red cords, pull straight back on the heater plate power cord until it is removed from the connector.

    • After the cord has been removed from the connector, it will need to be pulled through the rubber grommet.

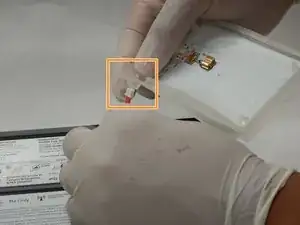

    • Gently pull the wires to the connector until the white connector is touching the rubber grommet.

    • Using light force, push the white connector on the end of the heater plate power cords through the rubber grommet.

    What is the rating of the fuse?

    Sean cruz -

  4. SGHsrDXC2P6EB1WC
    SGHsrDXC2P6EB1WC
    GERsTCFphxyXt6KZ
    4Wk4xiThItSpYOmU

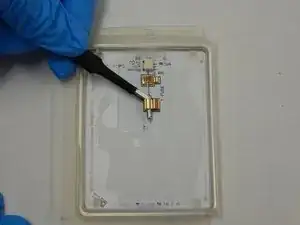

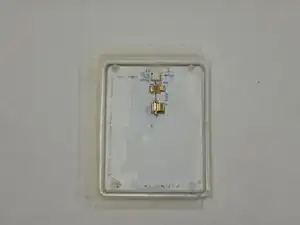

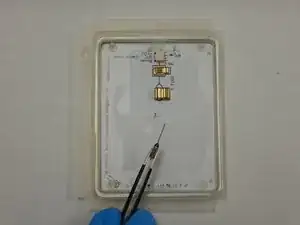

    • Using the straight tipped tweezers, push the fuse away from fuse housing until the main body of the fuse is visible.

    • Take the straight tipped tweezers, grip the body of the fuse, and pull it free from the housing.

    • Make sure to not bend the wire of the fuse. Using the holes of the housing as a guide will allow you to put the fuse back in the correct orientation.

    We’re do you get the fuse from

    crealws6 -

    What size fuse?

    Mark Larsen -

    Please for the love of GOD what size fuse. I lost the %#*@ thing before I could get a photo of it.

    jb5294 -

    Zephyr Micro Thermal Fuses Includes Non-Insulated Butt Connectors (120° C)

    Gods my mouth is so dry every night because this burned out.

    Found it.

    jb5294 -

    good job half done! fuse rating and source please

    dave jones -

    I can't seem to find this fuse either. Anyone have a link?

    Diana Burton -

    Found the Zephyr Micro (referenced by jb5294 above) on Amazon. Came in a pkg of 10. They're larger than the 1 that blew, but will fit. No readable info on the original fuse, so I can only hope new one continues to work (and will safely blow if necessary).

    paul from DE -

    Hi!

    I found this on Amazon for different number of Fuse Thermal Cutoffs Fuse 121C 121 Degree 10A 250V Replacement Part for NEC SEFUSE SF119E (pack of 5).

    Could you tell me is gonna works?

    Thank you!

    Val Ata -

    Thanks for responding to other people's comments. Seriously, why not share info about the fuse? This is basically a half assed repair.

    Jeremy Ballard -

    Fed up trying to find thermal fuse rating online so I took it apart.

    The Resmed Airsense 10 thermal fuse rating is 098 C which is logical as the water should never boil (100 C).

    Also note that a simple ohm meter logic test determines if good or bad. Place ohm meter leads across thermal fuse (on each fuse lead) and if it beeps, fuse is good still.

    Chris J -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Graham Michael Holland

Mitglied seit: 25/09/20

197 Reputation

24 Kommentare

Where can I buy a new fuse? This one does not look like one I can get at a hardware store.

pnreinhard -

Yws, please, where can we buy a new fuse? Thanks.

mustdeliver -

and yes where do you buy a fuse can’t find no where PLEASE @ cityboi53@yahoo.com

citycountryboi53 -

Did you get a reply as to where you can buy the fuse?

Wally Petrey -

any idea how can i get the fuse what are the specs and where can i buy one or someone know where to get the whole heating plate

andres usma -

Anybody know where a new heating plate can be ordered?

Brick -

No I haven’t heard on where to buy fuse and I need one or a heater plate and don’t think you can buy ether one . Resmed is a billon dollar company a year and and worth over 300 billon from what I have read. They wanted 400 dollars to fix my machine from using cs in it and it keeps me well but at the same time been told they are the best

citycountryboi53 -

Did anyone ever get an answer on where to get a fuse and/or new heater tray?

Kevin -

The fuse is a Therm-O-Disc G7F01098C which I found by salvaging one from an inherited AirSense 10. Over time the markings on the fuse fade - I couldn’t read the one from my original machine. That particular one is very hard to find, but a G7F01093C should work (5 degrees C lower cutoff shouldn’t matter) and it’s more commonly available.

Carl -

The G7f01093C is a 25 amp fuse. The G7F1098C is a 5 amp fuse. That’s a rather larger amount of current difference to put into your CPAP before the fuse cuts out.

jb5294 -

Graham did a great job with directions and Carl is correct on all counts and his advise on the number is sound as well. I bought the fuse (G7F01098C) online from Newark. Always change the fuse before changing the heater plate and you can test the fuse with a multimeter set for resistance testing on a low scale (ohms, not k ohms or M ohms would be fine). Once the fuse is replaced you can go into “My Options” and scroll down to “Run Warmup” to test the heater. If it works, then use the “Stop Warmup” to end the cycle. I did not research the heater part number since the fuse replacement solved the malfunction.

Thomas Neillo -

Zephyr micro thermal 120° C, 250V, 10A fusible link I got mine on amazon. And I can confirm first hand that it works. Got my first none Sahara level dry mouth nights sleep last night.

jb5294 -

Use aluminum foil for fuse

larry miller -

Thanks to Graham (instructions) & Carl (part number). But... Can a heater plate stop working for another reason? Mine stopped heating so I ordered a replacement fuse --- easy. But literally the day before the fuse arrived, the heater plate started working again. I read on another board that it could be a bad capacitor (but my experience is that once a capacitor goes, it's gone forever). Unfortunately I did not test the original fuse until I replaced it --- so of course it tested "good". I now have the new "93C" fuse installed & my 7-year-old unit is working fine but I fear that if it breaks again, it would require a more costly repair.

BTW, to clarify... G7F01093C is an acceptable replacement for G7F01098C as originally stated. The only difference is the temperate at which it opens (93 deg C vs. 98 deg C) --- both are 5 Amp fuses. The manual says the max temp on the plate is 68 deg C and cuts off at 74 deg C.

Note minimum quantity + shipping... 1@$1.98 "93C"s at Newark is $12, 38@$1.33 "98C"s at Testco is $66.

Basil D -

Thanks Basil, so helpful.

Rhian McK -

Update... With either the new or old fuse, the heater plate sometimes stopped working. I called Repap, a company that fixes/sells CPAP parts. They said it could be a loose connection (with the contacts the fuse plugs into) or the heater plate or the main logic board. I did order a heater plate from them (the said it was "refurbished" but it looked new) and so far, so good. (Their parts were reasonable: $29.95 for the refurb'd heater plate and $9.68 USPS shipping.)

BTW, if one wants to by a new Resmed AirSense 10 Autoset that uses LTE/4G cellular (to replace the older ones that only did CDMA and are no longer compatible with cell phone networks), it is still being made but one needs to specify "MyAir" compatible --- not the "C2C" ("Card to Cloud") model. Then one can use one's existing supplies (the masks and tubes for the newer AirSense 11 are not compatible).

Basil D -

This is a thermal curoff fuse, not a standard current limiting fuse. Look at the temperature printed on the body and order from most elecronic supply companies. i.e. Newark Electronics or Allied Electronics. Amazon has some temperatures available.

Jeff Bender -

The item wants you to choose a Fuse size, Functioning Temperature and Holding Temperature. What numbers should I choose?

Dave -

Toy can get fuses at your cpap supply store .

bonigrayfeather -

You can get the fuses at your cpap supply store

bonigrayfeather -

Where can you buy this heat fuse at??

Don Fischer -

It is my question as well. Not sure where to get an identical fuse which is important of course.

Art Joseph -

There seems to be a lot of different information about the fuse in this post. The fuse that was in my machine was a MICROTEMP G7F01 098C.

https://climate.emerson.com/en-us/shop/1...

They seem weirdly hard to find on any site selling less than 1000 at a time.

bigB -

Hi my heat plate does not heat everything else works but no alert on screen if the fuse is blowen should a fault be shown on screen-first l will check fuse easy bit first -if fuse is ok what should l check next and how- one last thing if its the heat plate and l change it is it plug and play or is there some calibration needed. Any help will be greatly appreciated-thanks

shane9ish -
