ResMed AirSense 10 Air Outlet Adapter Replacement

Geschrieben von: Jacey Cobb
  • Kommentare: 1
ResMed AirSense 10 Air Outlet Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

Over time the rubber seal on the air outlet elbow of the ResMed AirSense 10 medical ventilator will wear and cause small air leaks. If the hose and mask are verified to be not leaking, the leak can be located on the air outlet elbow. Check the air outlet elbow when trouble shooting leakages and replace as needed.

  1. NO5rG1BVRMh2JaBM
    NO5rG1BVRMh2JaBM
    DbDfBFXv55gfPjnY

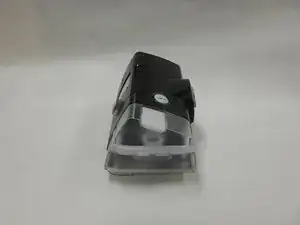

    • Position the ResMed Airsense 10 with the water reservoir facing towards you.

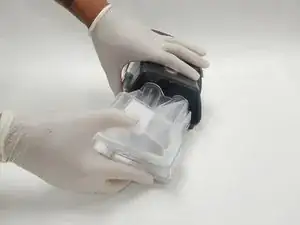

    • Remove the ResMed water tank.

  2. lJVTF1MoiPM4qqoY
    lJVTF1MoiPM4qqoY
    d2qVGGigRGOYpXIG
    j4uXA6qg5Sh2mn34

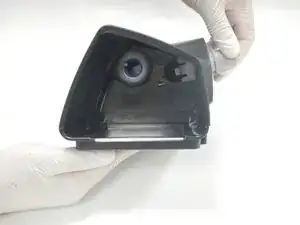

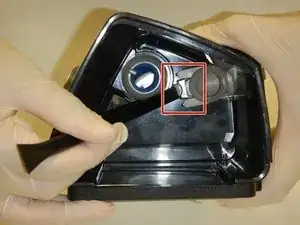

    • Use the spudger to disable the lock on the air outlet elbow.

    • Remove the air outlet elbow through the back opening on the ResMed.

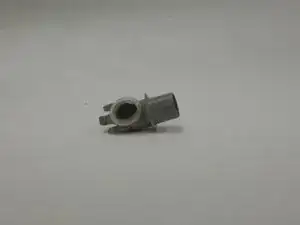

    • The Air outlet elbow is now free and ready to be replaced.

    I need to replace the gasket/o’ring shown in this picture to the left of the air elbow. where can i buy this and what is the procedure to replace it? I can find nothing anywhere about that gasket but mine is old and has calcium buildup on it which i believe makes it leak.

    Brian Davidson -

Abschluss

To reassemble your device, follow these instructions in reverse order.
