ResMed AirSense 10 Wireless Communication Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

If your device is having internet or network issues, the cause might be a broken wireless communication board. If this is the cause, this guide can help you to replace the broken board.

Be sure to confirm that the internet issues are due to the device itself. The wifi network it is connected to could also be the cause of the problems. To easily test this, just make sure other devices can connect to the internet properly.

  1. SBIqTRBYcvMIehUH
    SBIqTRBYcvMIehUH
    CBPMZCnfbCLVI4lb

    • Remove the water tub by gently pulling it out.

  2. LQHJS4QfweuD3lAW
    LQHJS4QfweuD3lAW
    eXuZBq3UJeHJRLNF
    XGKo363c2CoWpDoN

    • Pry off the face plate by using your finger or an opening tool.

    • Use a moderate amount of force when prying open.

    • Remove the face plate from the top cover.

    • There will be a clicking sound on either side of the divot when assembling and disassembling.

  3. udjnBP3ZeyoE5QUn
    udjnBP3ZeyoE5QUn
    shoXLFVCXpqsOqBD

    • Unscrew and remove the two 11.8 mm TR10 Torx screws that were revealed from the face plate being removed.

  4. ncGxBKTZUNjJSTQ3
    ncGxBKTZUNjJSTQ3
    BVFLsS5dseJCNWpE

    • Unscrew and remove the two 11.8 mm TR10 Torx screws from the bottom of the device.

  5. ZIsCHtDGNbe5pLkR
    ZIsCHtDGNbe5pLkR
    OwpAghJRi6oPDxIS
    sP5cPyUkCKHt1lNC

    • Remove the top cover from the rest of the device.

  6. S3uW4aDfKUQtewEs
    S3uW4aDfKUQtewEs
    MPjKv2tOFOAvIKjg
    HqELYimyuxCEixdA

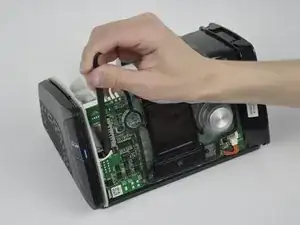

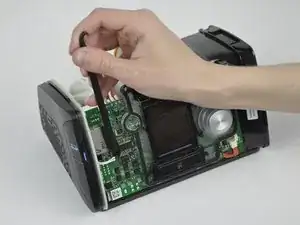

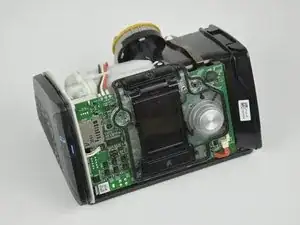

    • Place a halberd spudger behind the connector cable.

    • Use a halberd spudger to pull the connector away from the motherboard.

  7. JDWvFTxyNghLDIa4
    JDWvFTxyNghLDIa4
    66rsT1SZhZPot2jo

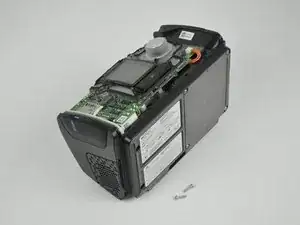

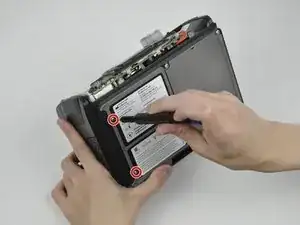

    • Unscrew and remove the two 11.8 mm TR10 Torx screws from the bottom of the device.

  8. ZTvI1AwARZ2tj5IB
    ZTvI1AwARZ2tj5IB
    oOTu61eg3vOaap4i

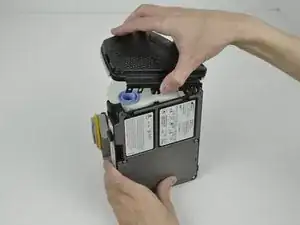

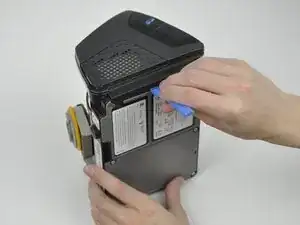

    • Insert a plastic opening tool in between the side and bottom panel.

    • Pry the side panel away from the bottom panel with the plastic opening tool.

    • Remove the side panel by pulling it away from the device.

  9. dZNJ35t5pDyRmYL1
    dZNJ35t5pDyRmYL1
    sVxnjklYL1PLvs5V

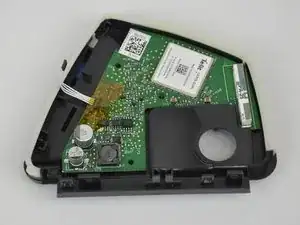

    • Push in the clips which secure the board to the side panel with the plastic opening tool.

  10. H4lHTPNRACUUaARl
    H4lHTPNRACUUaARl
    cvTwEpB4rFUrsS5j

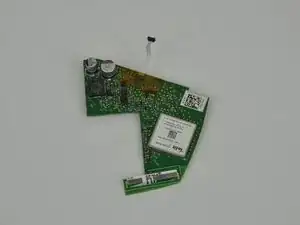

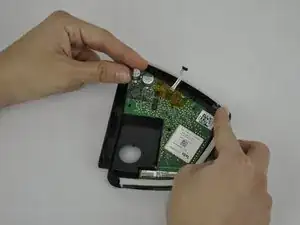

    • Remove the wireless communication board from the side panel.

    Be advised that the 2G/3G service has been retired and the cellular modem will no longer connect. ResMed has stopped including cellular modems in their newer units.

    Tim B -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mitchell Novak

Mitglied seit: 16/01/20

760 Reputation

Ein Kommentar

I have an early ResMed Airsense 10 and my wireless comm board was 3G. Can this be updated with a replacement board?

Lynd Mccormick -
