ResMed S9 VPAP Auto Blower Replacement

Geschrieben von: Jesse Quimby
  • Kommentare: 8
ResMed S9 VPAP Auto Blower Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

The ResMed S9 VPAP Auto is a medical ventilator, commonly referred to as a VPAP (variable positive airway pressure machine). This guide will direct you to access and replace the blower within the device. The blower is used to cycle air through the device, circulating air through the filters and blowing the air through the hose and to the user of the device. When the blower malfunctions, the device will not be working. There will be no circulation through the filters and through the device. Replacing the blower with a new or functioning one will completely fix the problem. For more information on the device, go to the manufacturer’s home page.

While removing the top panel to access the motherboard, be careful not the apply pressure to the side of the control knob. It has been known so snap off due to an impact or to pressure.

  1. bhEdTknQqT4TBOAG
    bhEdTknQqT4TBOAG
    oYUVDGKijp5S2ZEt

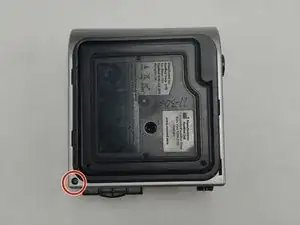

    • Flip the device upside down.

    • Use a T3 Torx screwdriver to remove the screw in the corner.

    • Each screw in this guide is a 1.2 mm Torx T3.

  2. XCs22GUTR1wPFBof
    XCs22GUTR1wPFBof
    yi6iSBSKB3thfNOx

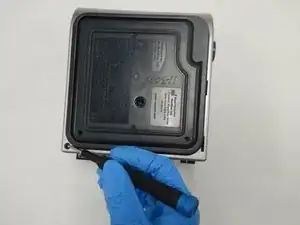

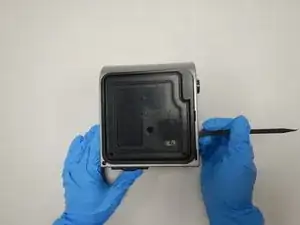

    • Use a spudger to pry off the back panel.

  3. jmh1ioAHruPkFdCV
    jmh1ioAHruPkFdCV

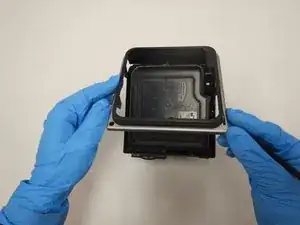

    DNmEmZZd2nGTPVC5

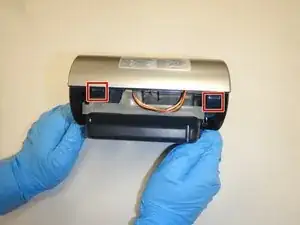

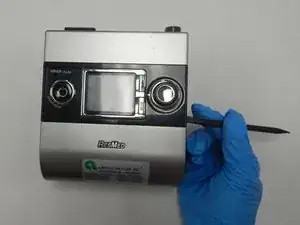

    • Use the spudger to pry off the front panel.

    • If you are having difficulty, press the two hooks to open that side of the device.

    • Remove the front panel to expose the internal components.

  4. h5VW3WXWpAtTQBJv

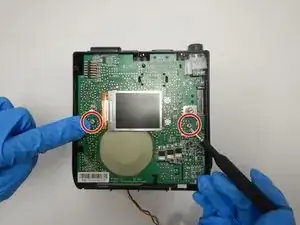

    • Remove the two screws on the circuit board with a T3 Torx screwdriver.

  5. 1YdyGyYRcJMKuFOi
    1YdyGyYRcJMKuFOi
    DxuWkHGmbYVVCnQV
    fEGy24NFBiL1EYlV

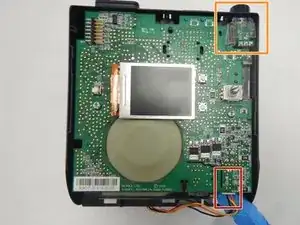

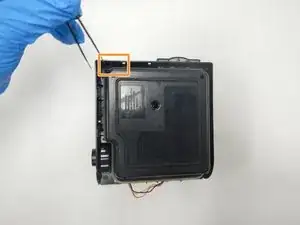

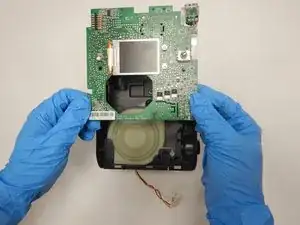

    • Remove the plug connecting the red, orange, and black wires to the control board.

    • The plug in the top right corner is accessed through the bottom of the device.

    • Flip the device upside down and use the tweezers to squeeze the plastic release for the remaining cable.

    • The control board will then lift right off, exposing the interior of the machine.

  6. GpmKUWEUPifdPBBO
    GpmKUWEUPifdPBBO
    qSxfWBV6MYkMfpCu

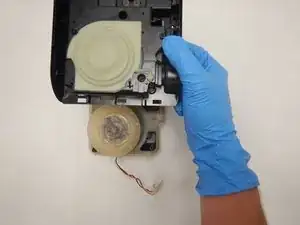

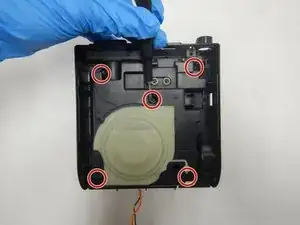

    • Remove the five screws from the frame using a T3 Torx screwdriver.

    • Lift off the plastic frame to expose the blower housing.

  7. DlI6lJpbivR1sQv4
    DlI6lJpbivR1sQv4

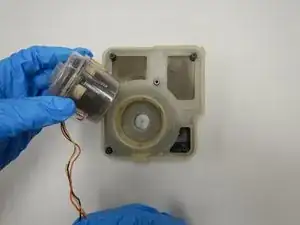

    cgP3SUWpoB4CXXEM

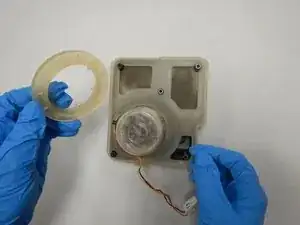

    • Remove the silicon ring around the blower.

    • Lift the blower out of the blower housing.
