ResMed VPAP Auto 25 Blower Unit Replacement Replacement

Geschrieben von: Camille Simmons
  • Kommentare: 1
ResMed VPAP Auto 25 Blower Unit Replacement Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

1 Stunde

Einleitung

The blower unit fails when the device becomes overused and outdated. It also fails as a result of dust clogging up the intake. Replacements extend for only a certain amount of time. Replacing the blower unit will save lots of money compared to buying a whole new unit. Eventually, a full unit replacement is necessary.

  1. XQbsDShG5c46QYJa
    XQbsDShG5c46QYJa
    qQKHEKBr6P5MSN52
    JIoOZCIE6KLkHOoF

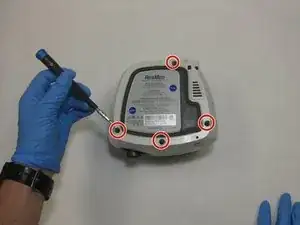

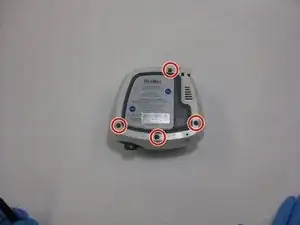

    • Remove the four 26.7 mm T3 Torx screws from the bottom side of the ResMed VPAP Auto 25.

  2. rxgHZZKOstUGx2gg
    rxgHZZKOstUGx2gg
    erWXXivKArQi1sjY
    TNtgbuyHmQwrXRjX

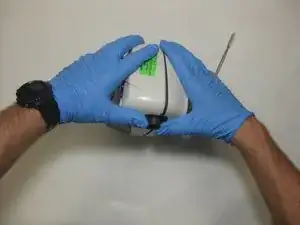

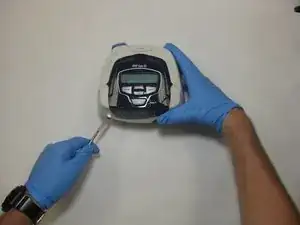

    • Flip the device over.

    • Pry the outermost plastic cover off with the metal spudger until the cover is loose and able to be removed.

  3. Z3XaywI5lDUciY3j
    Z3XaywI5lDUciY3j
    PnqXHGfJCCViUYXJ

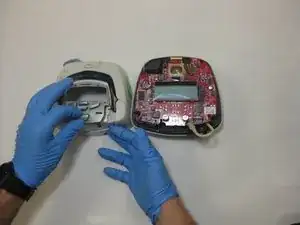

    • Pull off the front cover to reveal the internal components.

  4. 5K5IULXSVopIHHBo
    5K5IULXSVopIHHBo
    EToEdZ12jWJgR1tO
    hdNasIG6hMErDLfa

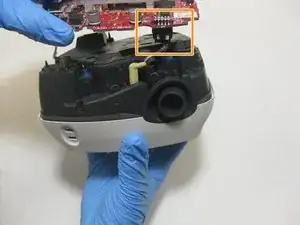

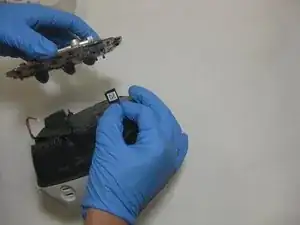

    • Loosen the motherboard from the rubber dowels holding it in place and unplug the screen components.

  5. o4TqGfKpOyHHnhvY
    o4TqGfKpOyHHnhvY
    YPJ1fP3eZOTyQVer
    U4BA3bmnAREZY2ED

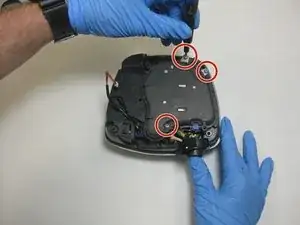

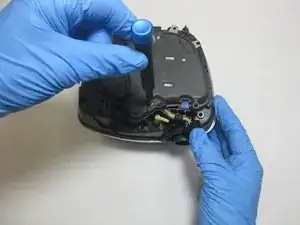

    • Remove the three 26.7 mm T3 Torx screws from the now visible rubber fan motor cover.

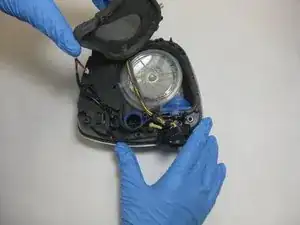

    • Lift off the rubber fan motor cover, revealing the fan motor.

  6. cquStmCwVkpRJ2LW

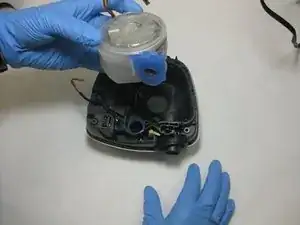

    • Unplug the blower unit cable.

    • Remove the fan motor blower unit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
