This guide will show you how to replace the motherboard in the ResMed VPAP Auto 25 medical ventilator. The display is incorporated into the board, so by replacing the motherboard, you will either need to transfer your old display onto the new board, or find a replacement with a board already installed. The motherboard is responsible for managing the volume and pressure of medical gasses delivered to the patient, so it’s critical that it is functioning correctly when in use.

  1. ivGcmNJBCZ5aTNQy
    ivGcmNJBCZ5aTNQy
    NDiFHsFibLpdIQES
    eLoaKTj2CQiCEMPd

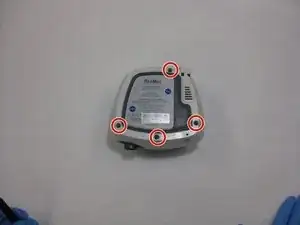

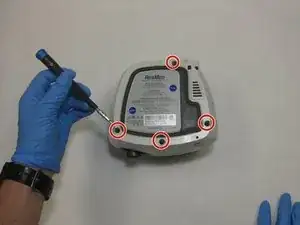

    • Remove the four 26.7 mm T3 Torx screws from the bottom side of the ResMed VPAP Auto 25.

  2. rKsM131YvUp4nbOh
    rKsM131YvUp4nbOh
    CWbxnORO2Vf4TjUW
    4A1vv1pPjBmeTQlq

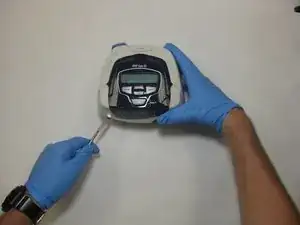

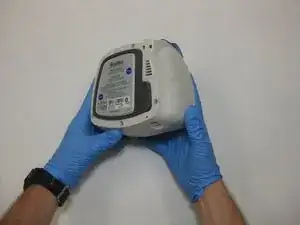

    • Flip the device over.

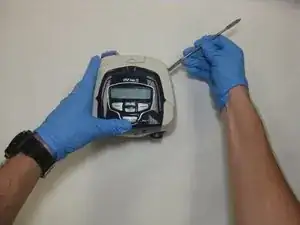

    • Pry the outermost plastic cover off with the metal spudger until the cover is loose and able to be removed.

  3. QIDk3WxPDx1UDngv
    QIDk3WxPDx1UDngv
    uRmKOsney3gf3qgq

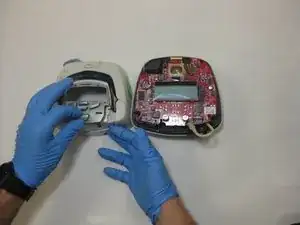

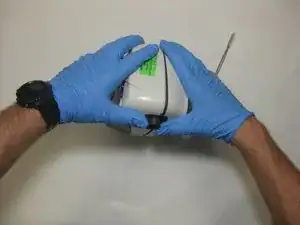

    • Pull off the front cover to reveal the internal components.

  4. BF45WFtkgppIShY6
    BF45WFtkgppIShY6
    wNmotTSJACNCw63X
    WMyjM6UaNuHCqLWQ

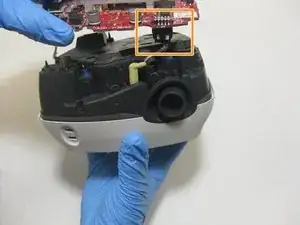

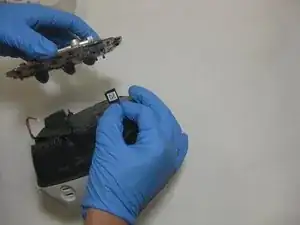

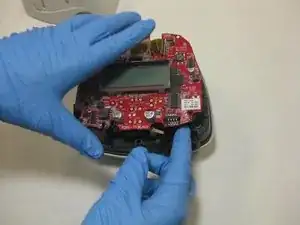

    • Loosen the motherboard from the rubber dowels holding it in place and unplug the screen components.

    Puede ser en Español. Gracias

    Maria Cristina Duartes -

    Podría ser la explicación en español. Gracias

    Maria Cristina Duartes -

Abschluss

To reassemble your device, follow these instructions in reverse order.
