ResMod AirSense 10 Pumpenmotor-Austausch

Geschrieben von: Jacey Cobb

Kommentare: 41

ResMod AirSense 10 Pumpenmotor-Austausch

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

50 Minuten

Einleitung

Diese Anleitung beinhaltet einen kompletten Teardown, um an den Punpenmotor zur Reinigung oder zum Austausch zu gelangen. Sollte das Gerät gebraucht gekauft wirden sein, ermöglicht diese Anleitung dem Nutzer alle Teile des ResMed AirSense 10 zu überprüfen und zu reinigen.

Werkzeuge

Schritt 1

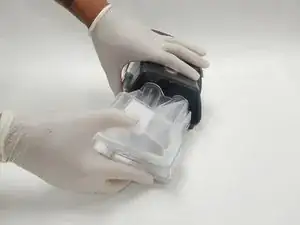

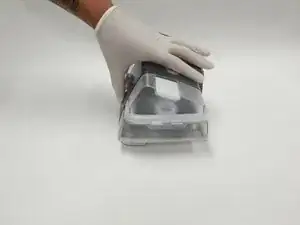

Positioniere den ResMed AirSense 10 so, dass der Wasserbehälter in deine Richtung zeigt.
Fasse den Wasserbehälter sowohl oben als auch unten an, und ziehe ihn gerade heraus und weg vom Gerät.

Schritt 2

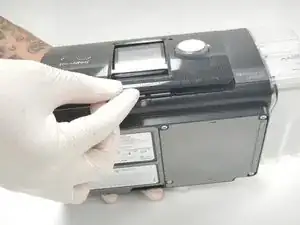

Um die Vorderseite zu entfernen, positioniere den ResMed AirSense 10 so, dass der Bildschirm in deine Richtung zeigt.

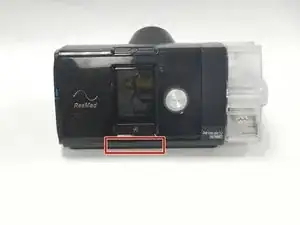

Platziere deinen Finger unter der Einkerbung unterhalb des Home-Buttons und ziehe die Vorderseite ab.
Dies sollte nur mittleren Druck benötigen.

Schritt 3

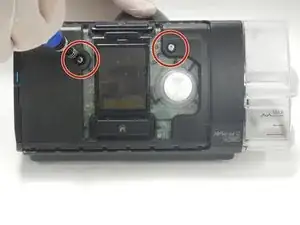

Entferne die zwei 14 mm Torx T10-Schrauben, die durch das Entfernen der Vorderseite aufgedeckt wurden.

Schritt 4

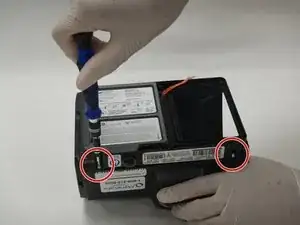

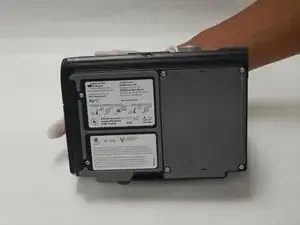

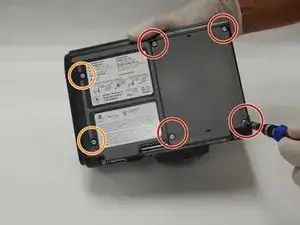

Drehe das Gerät zur Unterseite des ResMed Airsense 10.
Entferne die vier 10 mm Torx T10-Schrauben und lege die Schrauben sowie die Abdeckung der Plastikheizplatte zur Seite.
Entferne die restlichen zwei 14 mm Torx T10-Schrauben.

Suggestion: The 4 screws for thermal do not need to be removed to access the motor nor the connector to thermal be removed. Only remove the two screws 14mm long opposite to the 4 10mm screws

Alain Butzberger - 23/02/21

Schritt 5

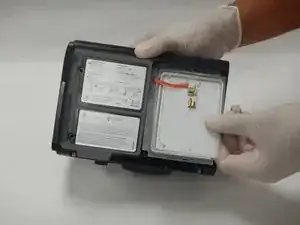

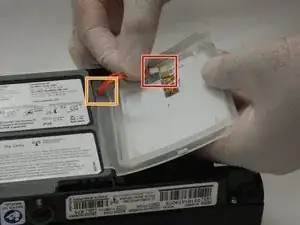

Sobald du die Abdeckung der Heizplatte entfernt hast, trenne das orangene Kabel von der Sicherung.
Ziehe das orangene Kabel vorsichtig durch die Silikondichtung.
Entferne die Heizplatte komplett vom ResMed Airsense 10.

Step not needed to reach the motor

Alain Butzberger - 23/02/21

Please remove this step as that it is not neccessary to complete this work

Steven Hicks -

Schritt 6

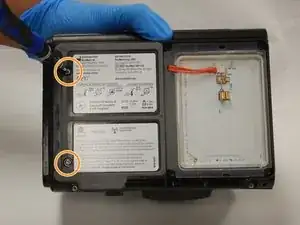

Entferne die übrigen zwei 14 mm Torx T10-Schrauben, welche den Rahmen zusammenhalten.

Schritt 7

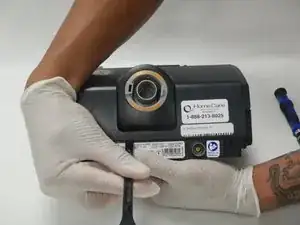

Drehe den ResMed AirSense 10 so, dass die Rückseite der Maschine zu sehen ist. Der Luftausgang sollte in deine Richtung zeigen.

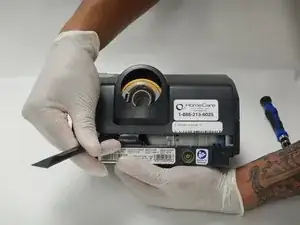

Nutze den Plastikspudger, um das Gehäuse des ResMed AirSense 10 vom Gerät zu entfernen.
Entferne das Gehäuse vom ResMed-Rahmen.

Schritt 8

Positioniere den ResMed AirSense 10 so, dass der Bildschirm zu dir zeigt.

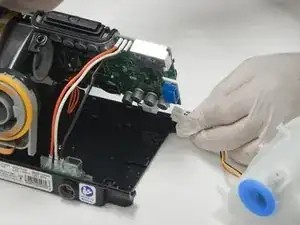

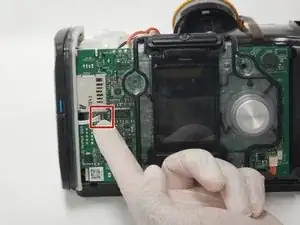

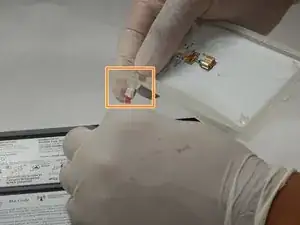

Entferne vorsichtig den 4-Pin Stecker, welcher sich links vom Bildschirm befindet.

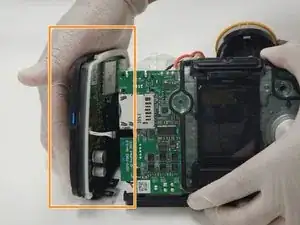

Entferne die linke Platte des ResMeds.

when removing this clip lift up from the wire side slightly then gently pull out.

Thom -

Please add the direction where force should be applied. I broke the connector because this visually looked like it should slide outward.

Steven Hicks -

Schritt 9

Drehe den ResMed AirSense 10 so, dass der Luftausgang zu dir zeigt.

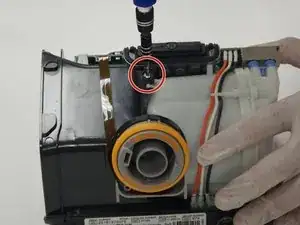

Entferne die 14 mm Torx T10-Schraube, welche sich zwischen dem Luftausgang und dem vorderen Bildschirm befindet.

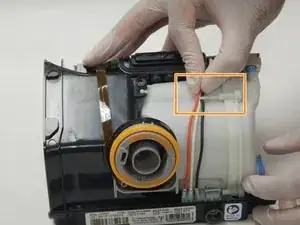

Entferne die Kabel vom Haken des Pumpengehäuses.

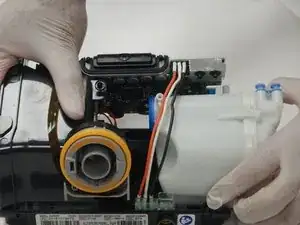

Entferne vorsichtig das Pumpengehäuse vom ResMed AirSense 10, bis die Steckverbindungen sichtbar sind.

Schritt 10

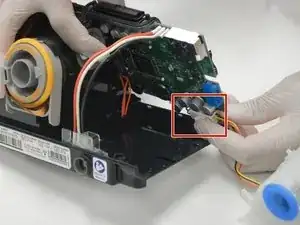

Entklemme die Verbindung der Kabel, welche das Gehäuse der Pumpe mit dem Motherboard verbinden, um die Pumpe vollständig zu trennen.

Schritt 11

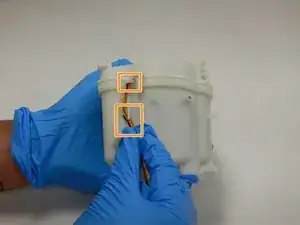

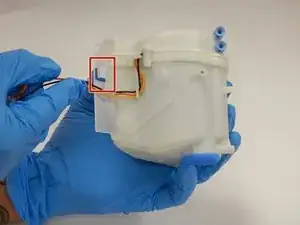

Drehe das Gehäuse der Pumpe so, dass die Kabel in deine Richtung zeigen.

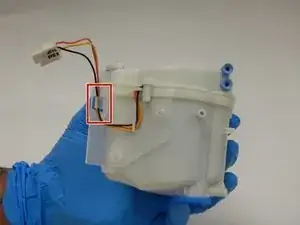

Hake die Kabel aus der äußersten Klammer aus.
Entferne dann den Plastikhalter vom Pumpengehäuse.

Anyone know the air pump part number or where I could get one?

Timothy Belleson -

Schritt 12

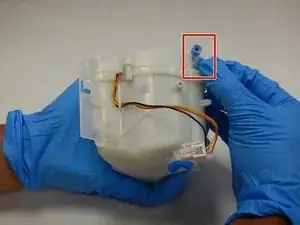

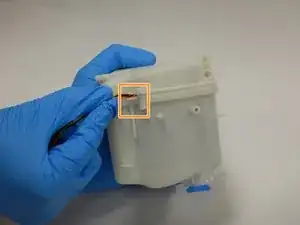

Entferne den blauen Silikonpuffer an der rechten Ecke.

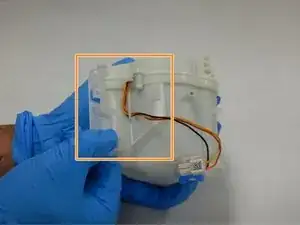

Entferne die Kabel von den verbleibenden Haken.

Schritt 13

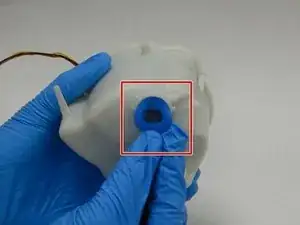

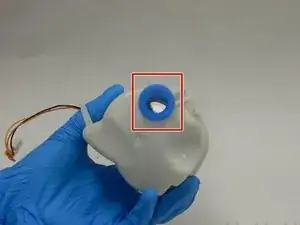

Drehe die Pumpe so, dass du die Auslassöffnung siehst.
Drücke die Auslassnoppe in das Pumpengehäuse.

Schritt 14

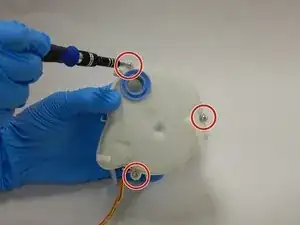

Drehe die Pumpe in Richtung der drei Torx T10-Schrauben.
Entferne die drei 14 mm Torx T10-Schrauben.

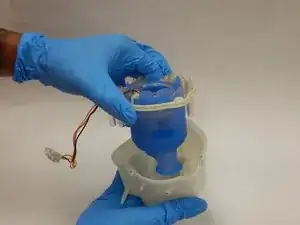

Hebe das Oberteil des Pumpengehäuses ab.

Schritt 15

Entferne den Pumpeneinheit vom Pumpengehäuse und drehe diese mit der Montageplatte in deine Richtung.
Die Montageplatte muss entfernt werden, um Zugriff auf die Pumpe zu haben.

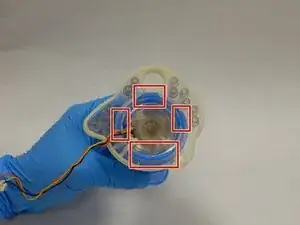

Es gibt fünf Gummirippen, die die Montageplatte mit der Gimmisocke verbinden, die die Pumpe umhüllt.
Drücke die Rippen durch die Löcher in der Montageplatte.

Schritt 16

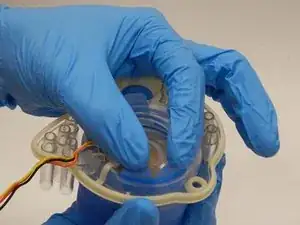

Trenne die Montageplatte von der Gummisocke.

Schritt 17

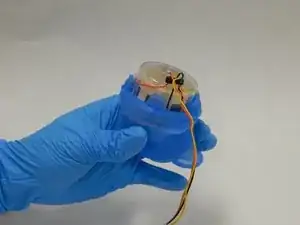

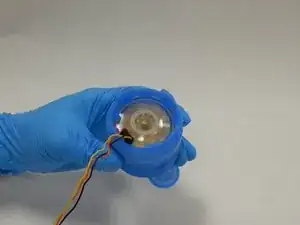

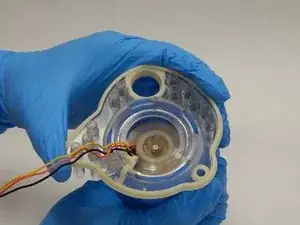

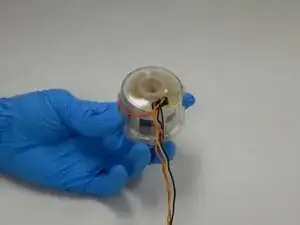

Ziehe die Gummisocke ab, um die Pumpe aufzudecken.
Beschädige die Kabel beim Entfernen der Gummisocke nicht
Die aufgedeckte Pumpe kann nun gereinigt und auf Schäden geprüft werden.

Hola, soy de Chile y necesito comprar un motor para reemplazar el que está averiado y no aparecen proveedores, si es posible publicar alguno estré agradecido

edgapereza -

Can the motor itself be disassembled for deep cleaning? My wife took hers on vacation with us and now it's got an unbearable febreeze smell we can't get rid of. I disassembled everything except the motor itself and thoroughly cleaned all the components like you advised, so the only culprit left is the motor itself. Any suggestions?

Larry -

I have a brand new motor for sale. My cost was $238.00. Interested? Mike.whittemore@hp.com

Mike -

https://www.alibaba.com/product-detail/H...

Timothy zBelleson -

This is the supplier I used. I also will validate that the replacement worked for me.

Steven Hicks -

How do you reset hour meter on the Resmed Airsense 10 after you replace the motor?

Fred Franks -

Hi Jasey, did you ever open the pump motor itself? I got a cpap machine that must have been in a fire. The maschine is ok but everything was full of soot particles, I was able to clean neary everything but the pump motor ist glued together and I dont know if the motorcase breaks if I open it nevertheless with a knife or sth.

A tipp is appreciated, cause a new one from C costs 95$ and I prefer not to buy in C if possible.

Thanks Chris

Carl Haupt -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Anweisungen in umgekehrter Reihenfolge.
