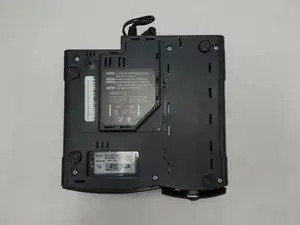

Place the device face down.
-

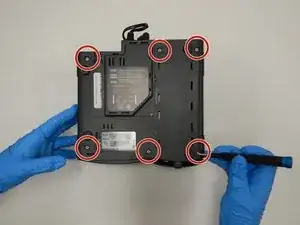

Use a T15 Torx screwdriver to remove the six screws in the base plate.
-

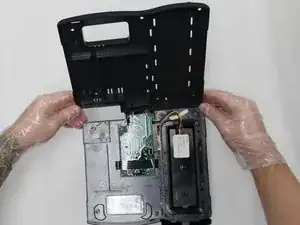

Lift the base plate off of the device.
-
-
-

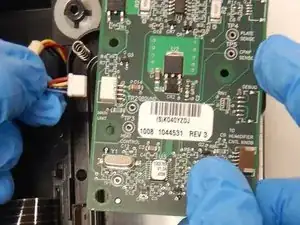

Flip the circuit board over to the right.
-

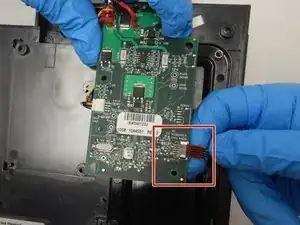

Gently pull the ribbon cable outward to disconnect it from the circuit board.
-
-
-

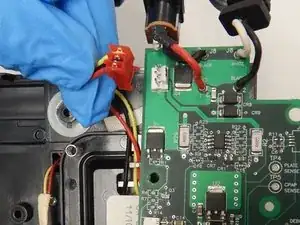

Disconnect the red 3-wire plug at the top left of the board and the white 4-wire plug at the bottom left.
-

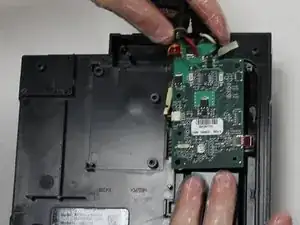

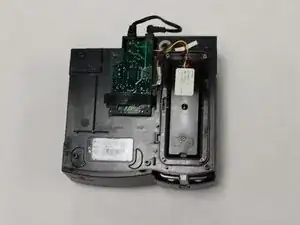

Remove the circuit board.
-
To reassemble your device, follow these instructions in reverse order.
