Retina MacBook 2017 Lower Case Assembly Replacement

Geschrieben von: Tobias Isakeit
  • Kommentare: 54
Retina MacBook 2017 Lower Case Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

23

Zeitaufwand

Keine Schätzung

Einleitung

Prerequisite-only guide for separating the lower case assembly from the upper case assembly.

  1. WTpjAPhBML2eX4Z1

    • Before proceeding, unplug and power down your MacBook. Close the display and lay it on a soft surface, top-side down.

    • Remove the following eight screws securing the lower case:

    • Two 1.8 mm P5 Pentalobe screws

    • Four 2.9 mm P5 Pentalobe screws

    • Two 6.1 mm P5 Pentalobe screws

    • Note the orientation of the screws as you remove them—they need to be reinstalled at a slight angle.

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your device.

    IMPORTANT. You’re not removing the bottom, yet. This step is solely to separate the panel from its clips, permitting inside access.

    Chris Leeds -

    The screws go in tangent to the curve of the case. If you aren’t used to handling small hardware try turning the screw counterclockwise while you feel for the hole until you feel it drop, that means the threads have aligned. It takes only light finger torque when they are threaded correctly

    abscate -

  2. oFRbloAsCqR4kMZO
    oFRbloAsCqR4kMZO
    o5lecdLOaMSsveUP
    OjOkolyUJbLFruoW

    • Wedge your fingers between the upper case and the lower case, starting from the rear of the MacBook between the hinges.

    • Lift the lower case only slightly to avoid damaging the cables that connect the lower case to the upper case.

    • Keeping a firm grip, lift steadily until the lower case separates slightly from the upper case.

    • You may experience a lot of resistance when lifting the lower case. If necessary, slide an opening pick or other ESD-safe pry tool down the side edges of the lower case to pop the two hidden retaining clips free.

    • During reassembly, to re-engage the clips, press firmly near both side edges of the lower case (near where the pick is inserted in the third image) until you hear the clips snap into place.

  3. v2ajYWLVaPyfdKBp

    • While holding the lower case in place, carefully flip the MacBook over so the Apple logo faces up.

  4. pYEJCQSeMGAEyFJM
    pYEJCQSeMGAEyFJM
    VjPKdFrhi2OEvgks

    • Lift the upper case and display together from the front edge and raise it to about a 45˚ angle.

    • It may be helpful to prop the MacBook open in this position for the next step.

    This displays two black pics to prop up the MacBook, but the kit only includes one black pic.

    Kyle Swafford -

  5. EXWTgtXS2vPBhGKP
    EXWTgtXS2vPBhGKP
    1JKIDRDVVFDBjMCr
    rUDUCKRgWBKStQAM

    • Use the flat end of a spudger to press and hold the small gold 'battery disconnect' button.

    • If the power LED is lit up, continue holding the button until the LED goes dark, and then release. This may take up to 10 seconds.

    • If the LED does not light, release the button after 5-10 seconds. Press and hold it again for 5-10 seconds, and release. Finally, press and hold it a third time for 5-10 seconds, and release.

    • This step ensures the MacBook is fully powered down and safe to work on.

    cannot turn on the led after replacing the new screen, even after following the turn on instructions upper…

    Laurent Pierre -

    on reassembly, I had to plug my laptop in to reactivate the LED light

    aaron_vandyke2003 -

    Does anyone know how to turn it back on..? I plugged the laptop in and saw the LED Light, but it won’t turn on

    mmcsorley -

    After reassembly I could not restart my MacBook using the power button or after SMC reset (shift-ctrl-option-pwr). I had to connect my MacBook to its charging cable to get the battery LED to re-illuminate. After that it was all normal.

    Richard Lovatt -

    It took a few minutes on the power adapter for my computer to turn on after it was reassembled.

    Luk Chl -

    mine doesnt turn on w anything, i forgot to click the buton to disconnect :_/

    cristian.campuzano -

    Same issue as above peeps. Followed ifixit directions verbatim and wasn't getting anything after screwing everything back in. Plugged in original 45W power block and waited, after few minutes battery LED came on and a min. or two after that, was able to get screen to turn on. Hope this helps somebody else.

    Brandon Elliott -

    May I ask how to get screen to turn on. I cannot get it work..

    Xiubo Zhang -

    For those whose Mac won't turn on.

    See step 16

    To reconnect this cable, first line up the metal bracket over the screw holes, then "PRESS DOWN" on the middle of the bracket.

    There is a connector under the bracket, which you can't see if you don't see under.

    Not having it in mind, you will not PRESS DOWN the middle of the bracket and there is no connect.

    hls2005 -

    There needs to be mention of procedure for getting the repaired MacBook to power up again after the repair is completed.

    I also am running into the issue described by others. MB will not come on again, even after being plugged into power and performing an SMC reset.

    Kinda stuck….

    Carlos Perez -

    Hi, I tried everything and my MacBook will not start up after replacing the bottom case with a battery installed. I decided to put back on the old case with the battery that needs servicing and it still will not power on. I am fairly experienced taking apart laptops I was an Apple service tech for 15 years. this has me baffalled. Any hints BTY the logic board does not show any power coming from the AC charger the power LED is not lit up

    eestern -

    I had trouble with this as well. What worked for me is to plug in power using the stock 29W USB C power brick that originally came with this Macbook. Trying other, lower powered, power adapters did not work. Use this advice with caution as there are multiple (i.e substantiated) comments that indicate that first power up should only be with a 5W adapter! So perhaps try this strict sequence: try with a 5W adapter, then and only then try with the 29W adapter. Or even slightly better, if everything else has completely failed, only then try full power 29W adapter.

    LexxOne -

    How long did you wait to get it power back on? I replaced my logic board and tried to connect the power charger but it doesnt still turn on.

    Herb -

    The easiest error to make when working on this motherboard if applying full voltage after re-assembly. According to the big A, the motherboard on these Macbooks need to be “woken up” with a 5 watt (phone size) charger. Applying the normal 29 watts may render your system unusable.

    Noah - Feb 18, 2021

    Hello Noah,

    It seems your remark is only valid for the 2015 and not the 2016 edition.

    David - Mar 3, 2021

    While it’s true that the internal documentation specifies this for a 2015, after frying 2 motherboards with a normal charger, I spoke with the engineers and they told me that this also applies to 2016 and 2017 macbook main logic boards. I say- It can’t hurt to try to wake them up with a 5 watt charger first! Please take 5 minutes to save your motherboard.

    Noah - Mar 4, 2021

    Noah -

    I plugged in my charger and the LED came on. The computer gets warm but the screen is not turning on. The keyboards doesn’t seem to respond to recovery options. Any suggestions?

    J'Trel Sapp -

    Hello in muy case the power LED does not go dark (off) . Holding more than 10 sec and nothing. Somebody?

    Flavio -

    The led light doesn’t turn off on mine either. Held for 10 sec 3 times and still on. How do I turn it off now? And will it damage the computer if I work on it with the light on?

    sfalba -

    Also, which way should the track pad flex cable face when reinstalling it?

    sfalba -

  6. 1xlLw6pjiuElshkZ

    • Close the MacBook and carefully flip it upside-down.

  7. 2GYsPBbAwkEqs2xq

    • Lifting from the front edge, open the lower case to an angle of about 45°.

    • Take care not to damage the ribbon cables that still attach the lower case to the MacBook.

  8. lGBQcICtFaslxUHu
    lGBQcICtFaslxUHu
    uhunJJRpxlkLAvhl

    • Use tweezers to peel back the tape covering the trackpad cable ZIF connector.

    Where can I find a replacement cable?

    John Comix -

    Just worked on one that was missing the tape from the factory, so yours may not have it either.

    maccentric -

    that cable got damaged, and now my macbook won't turn on anymore. Does this cable prevent the macbook from working?

    ITZ CRONOMO -

  9. iImRKXAcEWwgyePw
    iImRKXAcEWwgyePw
    b3YwfdgUUlOCsXSy
    LMjS3bqlbWDB4ieE

    • Use a spudger to carefully flip up the retaining flap on the trackpad cable ZIF connector.

    The small retainer flips up about 90 degrees from locked position

    abscate -

    The keyboard and trackpad don't work after the repair, what can I do? They don't even show up in System Report.

    bredelet -

    I found that the connector was not pushed enough in. Works now.

    bredelet -

  10. WeOX4JZDcQrqklNd
    WeOX4JZDcQrqklNd
    qtXyAcpgiAVCBmVC

    • Disconnect the trackpad ribbon cable from the trackpad by pulling it gently through its slot in the frame.

  11. CDaHMX5h1aFsjtL2
    CDaHMX5h1aFsjtL2
    iLYAVQ2N3yLQFkvC
    XbPR6F5Pfwam2NkO

    • Carefully close the MacBook and flip it over once again, so that the Apple logo faces up.

    • Lifting from the front edge, raise the upper case/display assembly to about a 90° angle, and prop it up against something sturdy so you don't have to hold it.

    • Add a piece of tape near the track pad to secure the upper case and prevent accidental movement.

    • It's possible to open the MacBook all the way and lay both sides down flat, but this may damage the flex cables and is not recommended.

  12. KhNCZTtfaGxFvwMu

    • Remove the single 2.9 mm T5 Torx screw securing the battery connector to the logic board.

    From my experience it’s important to carefully press and hold the small button above left of the Battery Discharge label. Use a plastic spudger or finger tip. The illuminated yellow LED to the right will go off. I believe this discharges remaining electricity from logic board protecting it during repair.

    * I cannot find any documentation to support this, but I have damaged boards by not including this step.

    Chris Leeds -

    I don't know what guide your on, but step 6 of the guide to replacing the USB-C cable has you press this button (3 times even).

    maccentric -

    What is with the all plastic end of this cable that appears to just be glued right on top of its connector?

    Does the new one just stick back right on top?

    (In this photo it is the bottom side of the cable below the white water indicator sticker)

    Elizabeth Erkelens -

  13. pTJmavEfBv2DXgVU
    pTJmavEfBv2DXgVU
    VUebfHZqvKTpapBB

    • As an added precaution, you may physically disconnect the battery by inserting a battery isolation pick between the logic board and the battery connector.

    What happen if you don’t disconnect the battery? I didn’t and I saw smoke coming out when I connected the pad flex cable and the computer still started up

    DSANTIAGOSOY -

    If you don’t disconnect the battery you might accidentally short something on the logic board since power is still running through everything while you’re working on it. You can complete the repair without disconnecting the battery, but you risk accidentally breaking your logic board. It’s much safer to keep the battery disconnected while you’re working.

    Adam O'Camb -

  14. NxUtySGy3uWmfBTN

    • Remove the two screws securing the USB-C port cable bracket:

    • 1.1 mm Phillips #00 screw

    • 3.5 mm T5 Torx screw

    I’m at this point and the 1.1 mm Phillips #00 screw won’t budge and now I fear it could be stripped? Now what???

    Y'vonne Feeney -

    You could try to cover the tip of your screwdriver with a thin rubber glove to improve the grip on the screw while applying a little more downward force for the initial jolt. That might loosen the screw.

    Tobias Isakeit -

    The USB-C ribbon cable breaks very easily when being attached. Any particular tricks for ensuring that it won’t snap somewhere while being installed?

    bfg737 -

    With my iFixit screwdriver kit, these were Philips #000, not #00.

    Paul Nishikawa -

    This was #000 for me as well

    Adam Hupp -

    I was at the 1.1 mm and couldn't get it open with the 00. I ordered the 000 but it still won't budge. I tried the glove idea and as much pressure as I'm comfortable giving. I'm pretty sure the screw is stripped. Any ideas or advice or am I in trouble?

    johnny gutierrez -

  15. aPJDUSEVa24G5wDu
    aPJDUSEVa24G5wDu
    fQXrJmJDGER4qs1d

    • Use the flat end of a spudger to disconnect the USB-C port cable bracket by prying it straight up from the logic board.

    • To reconnect this cable, first line up the metal bracket over the screw holes, then press down on the middle of the bracket. Make sure it's aligned correctly, or you may damage the connector.

    At re-assembling, when you reconnect this cable, pressing centre of metal plat is extremely important. You should feel tiny click when it connected properly. I encountered unrecognised external HDD and external monitor through USB-C even though charging in/out was OK, i.e failure of data transmission. I needed to re-open the back cover and pressed the metal plate again, then USB-C connection worked properly.

    Aki Mochi -

    After this step, I flipped the Macbook over once more and opened it up 90 degrees, supported on the back. Proceeded directly to step 25. Seems safer, those fragile connectors and flimsy cables give me heebie jeebies.

    maccentric -

  16. cnkkpqnImOJBKvGP
    cnkkpqnImOJBKvGP
    XcXlAMnXJVFGLOZA

    • Use a spudger to flip open the retaining flap on the audio jack board cable ZIF connector.

  17. gWObarmSQqX4gWjO

    • Disconnect the audio jack board ribbon cable by pulling it straight back out of the ZIF connector.

    • During reassembly, orient the ribbon cable so that the side with the white stripe faces you, as shown.

    • At this point it is possible to open the macbook all the way and to lay it flat on a table without causing any damage to the flex cables.

    Make sure at reassembly that you insert the ribbon cable in to the jack board fully. It seems to take an extra push. The white line should disappear when it is seated properly. I didn’t get it in all the way by a fraction of a mm and had no sound (internal speakers weren’t even recognized). Went back and seated the cable fully and sound was back.

    Timothy Dinkelman -

    I had that same problem, too.

    lyonmissions -

    Had the same problem, (no audio after reassembly) it did have the startup chime though.
    after re-seating the ribbon cable, it worked for a few days, but then nothing after waking up.
    not even the startup chime.
    Any body got pointers on how to check if i broke the cable or the board? (looks fine...)

    Christian Stanner -

  18. CTPUBYsAgXtXxHEF
    CTPUBYsAgXtXxHEF
    hEKnBCb2bAATpq1P

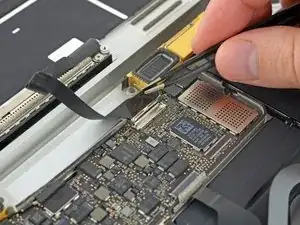

    • Use tweezers to peel back the tape covering the display cable connector.

    I won’t have my daughter’s MacBook with its banana encrusted USB-C port until she returns home during spring break — just doing some homework before then. But if the case can lie flat after the audio board ZIF cable is detached, why do you need to detach the display cable connector (Steps 19-24)? It seems that you could jump straight to Step 25 to replace the USB-C port and avoid those steps.

    John Conklin -

    Hi John, disconnecting the display cable is not necessary, but is recommended to avoid accidental damage to the cable during the rest of the procedure. If you feel confident in the safety of the cable then you can skip ahead. Good luck with the repair!

    Adam O'Camb -

    I skipped ahead to step 25 successfully by making a secure stand for the display and being careful to not strain cables. If you are decently motor skilled this saves you 15 minutes or so. Not recommended if you live with cats who love little screws to chase

    abscate -

  19. rbj3KLTQamuZVO4N
    rbj3KLTQamuZVO4N
    w4bF2ScjrdZVOhXx

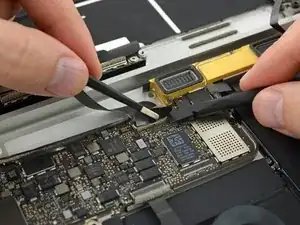

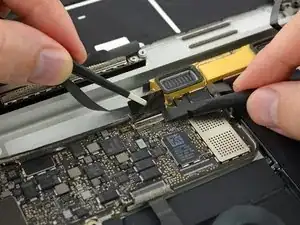

    • It's possible the metal retaining flap on the display cable connector may flip open, remaining stuck to the tape.

    • If so, use the flat end of a spudger to hold down the retaining flap while peeling the tape away with the tweezers.

  20. eHZNWLWbMZxYTtTJ

    • Use the flat end of a spudger to flip open the retaining flap on the display cable connector.

    • Try to keep it clear of the tape, or it may re-adhere and make cable removal difficult.

    I found it helpful to stick one of the triangular picks in between the table and the retaining flap to keep them separated.

    Kofi Kantanka -

  21. ZRLuwdSOgysqUIZa
    ZRLuwdSOgysqUIZa
    3qiSmhTTSe5QCCIA
    3fEQPqmPnv2aVyMv

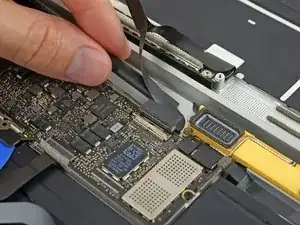

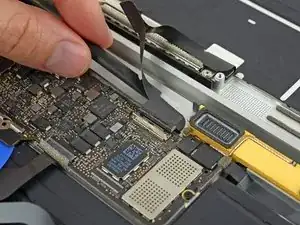

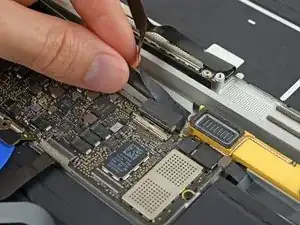

    • Carefully slide the flat end of a spudger underneath the display cable to separate the adhesive holding it to the lower case.

    • Take care not to damage the cable. If the adhesive is very strong, heat the case directly beneath the cable with an iOpener to soften the adhesive, and then try again.

    Great, another new fragile display cable to deal with. Thanks Apple.

    maccentric -

  22. aPihB1CyJim4IF4c

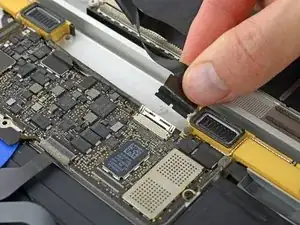

    • Disconnect the display cable by gently pulling it straight out of its connector.

    • Immediately close the retaining flap.

    • The flap must remain closed when the cable is reinserted during reassembly. Line up the cable with the gold contacts facing down, and gently slide it into the closed connector. Take care not to crimp or damage the cable. When fully inserted, the indentations on the sides should not be visible.

    I’m pretty sure I understand the instructions here, but I had to think about it a little longer because “… must remain closed when the cable is reinserted during reassembly …” was not clear to me right away. The retaining flap I discovered, is super delicate, and hence my paranoia, so I wanted to point this out in case anyone else felt like me: ''''Is it correct to assume that your instructions could be interpreted as:

    “After disconnecting the cable, close the retaining flap for now to avoid damaging it. When reinstalling the cable, flip up the retaining flap once again, realign and slide the cable with gold contacts facing down.”

    I bent the USB-C corner of the lower case from a short drop onto laminate flooring, so in I went to shape it so the edge wouldn’t snag or scratch things. I am typing on my MacBook that received the body work.

    Thank you for your guidance!

    John Torquido -

    For @seriouslyjohn and anyone else who might be wondering: “the flap must remain closed when the cable is reinserted” means keep it closed. Do not reopen the flap to insert the cable; just insert it carefully while leaving the flap closed. I know it probably runs counter to the procedure you’re used to, but Apple’s documentation is very clear on this, and I have to think it’s for a reason. My advice is to follow the instructions as written and don’t try to reinterpret them ;) Congrats on a successful repair!

    Jeff Suovanen -

    Oops! I most definitely did NOT reinsert the cable into a closed connector. We can only wonder why Apple instructed this step to be counter-intuitive. I’ll pay closer attention to any weirdness that may arise, but the MacBook has been traveling and performing as it should; I’m going to avoid reopening the case, as easy as it is, until I have a good reason to do so. Thank you for replying and updating the guide!

    John Torquido -

    I would argue that you should NOT close the retaining flap. I followed the directions to the letter, and when I started up the MacBook, the display did not register since the I wasn’t able to reseed the cable fully without worrying about tearing the cable. I did hear the computer charging and saw that the keyboard lit up, so I knew the MacBook was working besides the display. I looked up another video on Youtube that left the retaining flap open when reinstalling, so I took apart the Macbook again and tried it that way, and IT WORKED! The cable wasn’t fully reseated with the retainer open and I’m not sure if that was my fault or not, but with the retainer flap open, it was easier to see that. My 2 cents. Good luck everyone!

    Sulmo Kim -

    I initially tried inserting the cable with the retaining flap closed (as described), however after completing reassembly the MacBook could be heard to start but without any display action (no backlight, no graphics - also tried resetting the SMC). Being suspicious of this step based on the comments above, I tried re-inserting the cable with the retaining flap open before subsequently closing the flap. It may have just been my perception but insertion with the retaining flap open certainly appeared to result in a more robust mating of cable and connector. After reassembly and reset of the SMC I at least saw backlight action although no graphics still. A subsequent boot into to diagnostics mode resulted in the graphics coming to life.

    Maybe my re-insertion while the retaining flap was closed was not quite correct (although I was certainly trying to be careful), but my experience was that success was achieved making the cable insertion while the retaining flap was open.

    Paul Richards -

    It is kind of nice that I don't have to worry about that. The screen cable is literally plug & play. Super easy.

    lyonmissions -

  23. IIqsgKYEokgwdVfo

    • Separate the upper case assembly from the lower case assembly.
