Revlon 473 Disassembly

Geschrieben von: Jessica Leyva

Kommentare: 0

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

Clean the head of the hairdryer, including the vent, to prevent the fan from getting clogged. Debris in the fan may cause a rattling noise or cause the fan to stop working.

Werkzeuge

Schritt 1

Before disassembly, make sure that the device is unplugged.
Remove the two 17.83 mm black screws located on the handle.

Schritt 2

Separate the shell from the main component.
Check to ensure each piece is free from debris.

Schritt 3

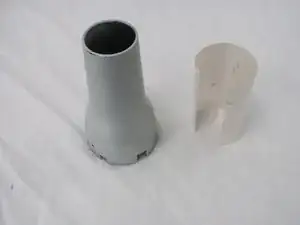

Remove the casing from the heating element.
For reassembly, reattach the silver casing before the black cover.

Schritt 4

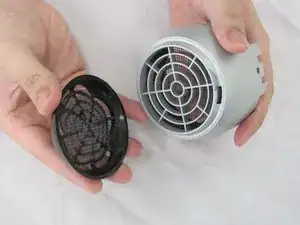

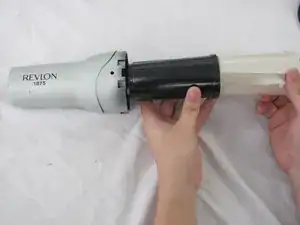

Take the head of the hairdryer and pull the pieces apart.

Schritt 5

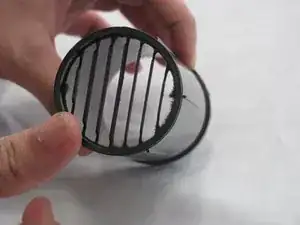

Remove the black vent from the grey cylindrical piece.

Schritt 6

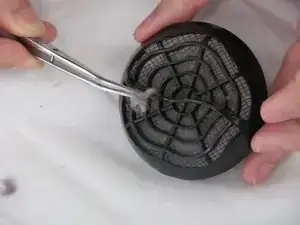

If there is lint in the vent, use tweezers or a toothbrush to extract it from the vent.
This will keep the fan from getting clogged and malfunctioning.
