Revlon One-Step Hair Dryer Air Inlet Replacement

Geschrieben von: Rory Chappuis

Kommentare: 6

Revlon One-Step Hair Dryer Air Inlet Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

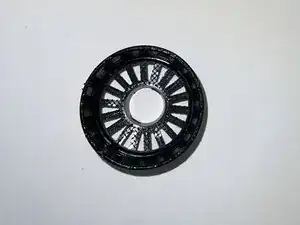

If your hair dryer is not blowing out hot air, has a restricted air flow, or is producing a burnt smell, the air inlet may be defective. The air inlet is a vital source of the hair dryer as it protects the mesh filter from any further debris or damage. As a result, this guide will teach users how to properly replace this component of the Revlon One-Step Hair Dryer.

Werkzeuge

Schritt 1

First, remove the pink panels on each side of the handle in order to access the screws.
Use the iFixit opening tool to remove the pink panels.

What is a fix it opening tool?

amg3232@yahoo.com -

Donde compro el barrel

Joan2apie -

Schritt 2

After removing the pink panels, there will be one visible screw on each side of the dryer handle measuring at 11mm.
Carefully unscrew both of these screws with a tri-point Y000 screwdriver.
Next, completely remove the screws out of the dryer handle.

Schritt 3

Remove the barrel by twisting and pulling it away from the handle of the dryer.
Before attempting to take the barrel off, make sure the dryer powered completely off and is cool to the touch.

I was only able to remove the brush after I used a flathead to pull the main black pieces on the handle away from the brush. These black pieces lock the brush into place.

Cecily Nolan - 05/03/23

Schritt 4

Next, slide down the air inlet and the setting dial to reveal the 11mm screws on each side of the handle at the bottom of the hair dryer.

I can't slide down the air inlet, it is fixed somehow. I can rotate it as much as the setting dial but no more. Any ideas?

Kai Birkmann -

it's the same for me.

Can we have a video please ?

man dark -

I used an adjustable plier to firmly grab the solid portion of the air inlet closer to the power cord, and twisted it counterclockwise until it clicked, then slide out

Betina Biolatto -

Schritt 5

There will be one visible screw on each side of the dryer at the bottom of the handle, measuring at 11mm.
Carefully unscrew both of these screws with a tri-point Y000 screwdriver.
Store screws in a safe place, you will need them to reassemble the device later.

Schritt 6

Place the iFixit opening tool along the seams of the handle and pry the two pieces apart.

Schritt 7

Once you have exposed the inside of the dryer, you will see a clear port at the very end where the cord is connected and plugged into.
Now, with your thumb and pointer finger gently pinch the top and bottom of the clear port.
Next with your free hand carefully pull the cord out of the port of the dryer handle.
