Revlon One-Step Hair Dryer Cord and Plug Replacement

Geschrieben von: Kateria Dykes
  • Kommentare: 6
Revlon One-Step Hair Dryer Cord and Plug Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

If your Revlon One-Step Hair Dryer will not power on after multiple troubleshooting attempts, the plug may be defective. As a result, this guide will teach users how to properly replace the cord and plug.

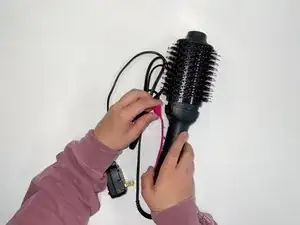

  1. bhaOGDXcFbL3Li5c

    • First, remove the pink panels on each side of the handle in order to access the screws.

    • Use the iFixit opening tool to remove the pink panels.

    What is a fix it opening tool?

    amg3232@yahoo.com -

    Donde compro el barrel

    Joan2apie -

  2. 4cKIt4keMAFbs2Vr
    4cKIt4keMAFbs2Vr
    nvHUOqsBgeZMenqb
    jeSlJ4j4OGIiutqQ

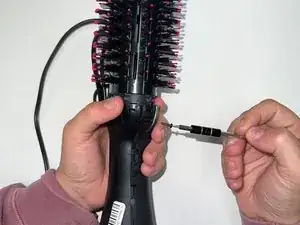

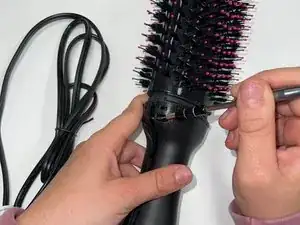

    • After removing the pink panels, there will be one visible screw on each side of the dryer handle measuring at 11mm.

    • Carefully unscrew both of these screws with a tri-point Y000 screwdriver.

    • Next, completely remove the screws out of the dryer handle.

  3. SgbQdK5QXauNsh3L
    SgbQdK5QXauNsh3L
    JYcUbCBTEFUilCBb
    KpwXdCihcsNaBnmW

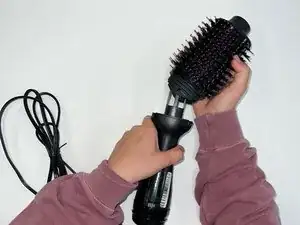

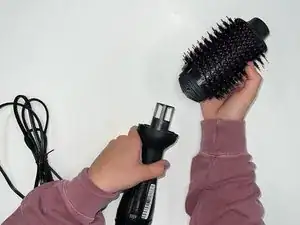

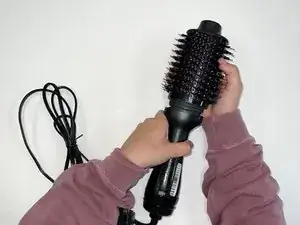

    • Remove the barrel by twisting and pulling it away from the handle of the dryer.

    • Before attempting to take the barrel off, make sure the dryer powered completely off and is cool to the touch.

    I was only able to remove the brush after I used a flathead to pull the main black pieces on the handle away from the brush. These black pieces lock the brush into place.

    Cecily Nolan -

  4. CBNVqvYD1BKPPXYf
    CBNVqvYD1BKPPXYf
    APb13HX4VEXyMfV1

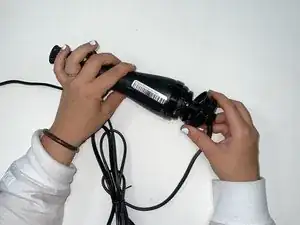

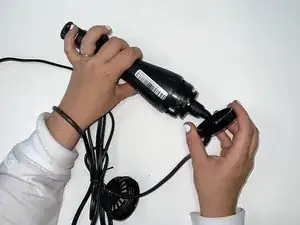

    • Next, slide down the air inlet and the setting dial to reveal the 11mm screws on each side of the handle at the bottom of the hair dryer.

    I can't slide down the air inlet, it is fixed somehow. I can rotate it as much as the setting dial but no more. Any ideas?

    Kai Birkmann -

    it's the same for me.

    Can we have a video please ?

    man dark -

    I used an adjustable plier to firmly grab the solid portion of the air inlet closer to the power cord, and twisted it counterclockwise until it clicked, then slide out

    Betina Biolatto -

  5. 5wLHQKLlpcdrVZYG

    • There will be one visible screw on each side of the dryer at the bottom of the handle, measuring at 11mm.

    • Carefully unscrew both of these screws with a tri-point Y000 screwdriver.

    • Store screws in a safe place, you will need them to reassemble the device later.

  6. QcLs5OXqmtDUH1Xt

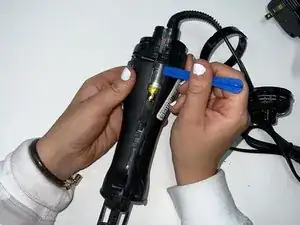

    • Place the iFixit opening tool along the seams of the handle and pry the two pieces apart.

  7. wiqLUUinokYbZ3xM
    wiqLUUinokYbZ3xM

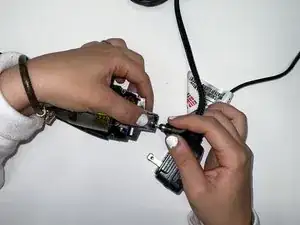

    ZyB5grnf6MRCaDPI

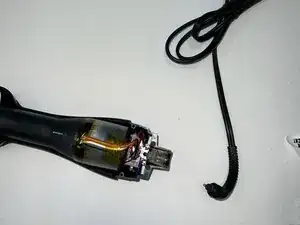

    hDPjSWo1vX4kxWKK

    • Once you have exposed the inside of the dryer, you will see a clear port at the very end where the cord is connected and plugged into.

    • Now, with your thumb and pointer finger gently pinch the top and bottom of the clear port.

    • Next with your free hand carefully pull the cord out of the port of the dryer handle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
