Ricoh Theta Z1 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

I created this guide because I found nothing in the internet about changing this battery.

  1. YxODCnPx4QEFdaEB
    YxODCnPx4QEFdaEB
    M1PgkyUIDe5PAEvu
    VPANm6PeAOxRgTB1

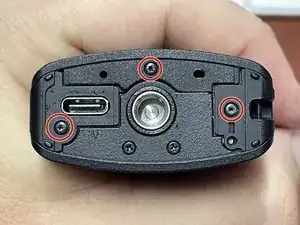

    • Use a Spudger to remove the sticker, starting from the reset hole.

    • The using 00-Torx remove the 3 screws at the bottom.

  2. pPVOoRgPoXN3RvOl
    pPVOoRgPoXN3RvOl
    fPLF1Rq3ArAIKWRe

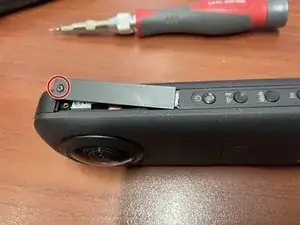

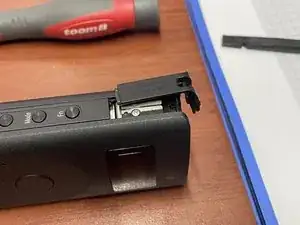

    • Now remove the screw at the side with the 00-Torx screwdriver.

    • Gently remove the side pieces.

  3. 1JVWflQuBmglstJu
    1JVWflQuBmglstJu
    bx1udRpiPBMKgnXo

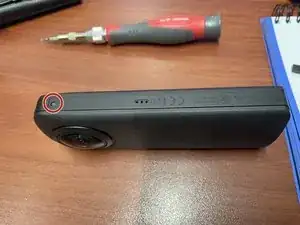

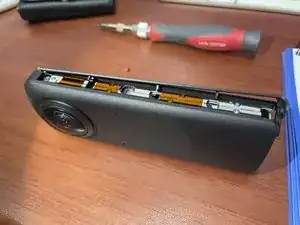

    • Remove the 00-Torx screw and gently slide the side piece off.

  4. j1l5u2MfeYmTUeig
    j1l5u2MfeYmTUeig
    yOXQEhYlls1CCZWW

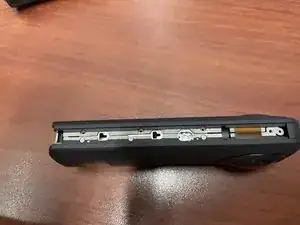

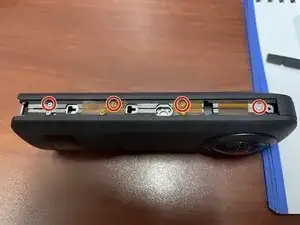

    • Remove the 4 00-Phillips screws from the long side

  5. GiCBhexesvPsAJlA
    GiCBhexesvPsAJlA
    cZEvpHMUZrG4FG2e

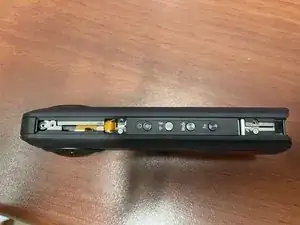

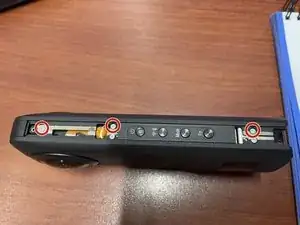

    • Remove the 3 00-Phillips screws from the button side

  6. oE1mdjHUITwPejye
    oE1mdjHUITwPejye
    LpUQqMipsfttPRWH

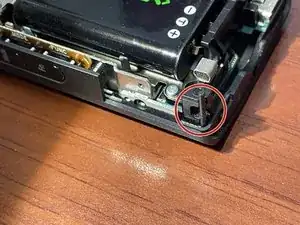

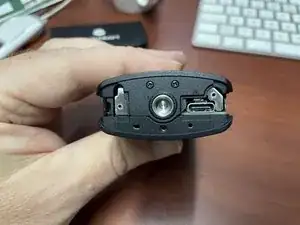

    • Now one part of the case can be pulled away, carefully observing the pin for the strap holder.

  7. qbHGqR3gkkb1OdxF
    qbHGqR3gkkb1OdxF
    TXOMCvyHGjaxG52W
    OtXuLNiCXKkYOQ4p

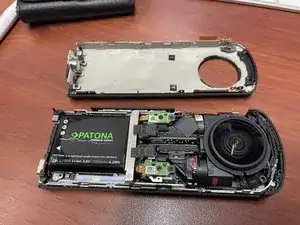

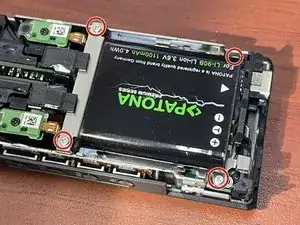

    • The battery is glued with tape to a holder, that has to be unscrewed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
