Ricoh YF-20 Super Lens Replacement

Unscrew the seven indicated screws from the left, right, bottom, and back sides of the camera.

Loosen the back cover from both the left and the right sides of the camera.

Open the film compartment.

Press your finger on top of the grey latch on the left side of the camera.

Use a thin object like a toothpick or a small screwdriver to push down on the metal pin holding the film compartment door in place.

Use your fingers to completely remove the metal pin.

Remove the film compartment door.

Using a thin shaft screwdriver, unscrew the two indicated screws within the film compartment.

Loosen the front cover from the left and right sides of the camera.

Remove the front cover.

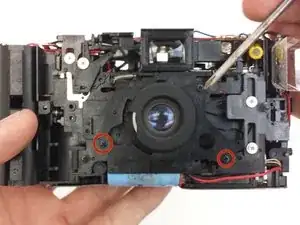

Unscrew three screws from the outermost plastic plate covering the lens.

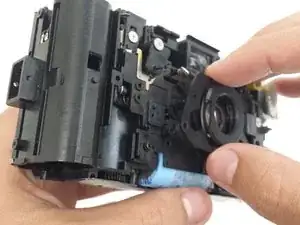

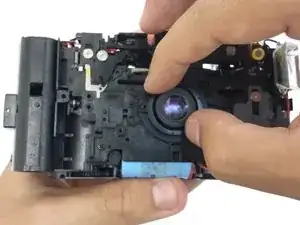

After the screws are removed, the outermost plate can be removed.

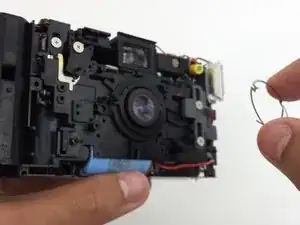

Remove the ring shaped metal brace.

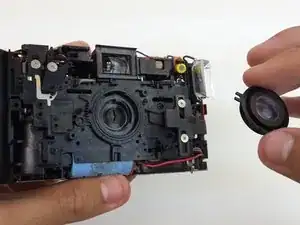

Using fingers or tweezers, remove the lens from the camera.
