Ridgid Angle Grinder R10202 Disk Guard Spring Replacement

Geschrieben von: Parker Massie
  • Kommentare: 0
Ridgid Angle Grinder R10202 Disk Guard Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 - 6 Minuten

Einleitung

This guide is for replacing the spring on your guard disk should the spring break or not feel firmly secure. For this task, you will want to have the replacement spring ready as it can be inserted directly after the last step.

  1. wTpMt5hVeJCZ4FyV

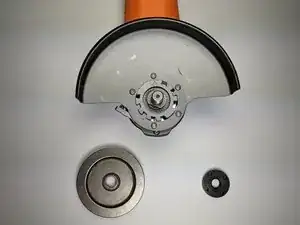

    • Unscrew the clamp nut and the backing flange from the output shaft assembly.

    • You can do this by hand or use a spanner wrench which should be provided in the manufacturers box.

  2. GxAH1fvyHls5hEas
    GxAH1fvyHls5hEas
    hBnLPR3dCYdG342o

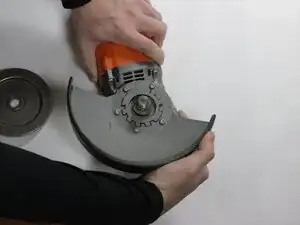

    • Push in the guard lever and twist the guard until it aligns with the slots on the output shaft assembly.

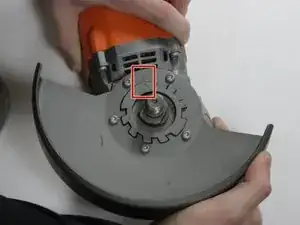

    • There are two arrows that should align before you attempt to pull the pieces apart.

  3. dr3HaODUxFEDGHlI
    dr3HaODUxFEDGHlI
    SA1FS5QDjXVPHx1d

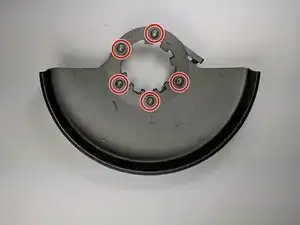

    • Unscrew the 5 M5 X 10mm screws using a Torx T20 Bit.

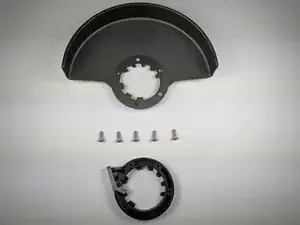

    • Carefully separate the spacer from the guard.

  4. kwrOjZHs5oaivVGa
    kwrOjZHs5oaivVGa
    2o6OB6O1t3O6gRaa

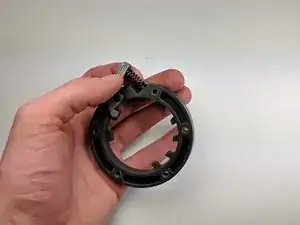

    • Gently push the spring away from the spacer.

    • The spacer, spring, and guard lever should now be all separate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
