Ridgid Angle Grinder R10202 Motor Housing Replacement

Geschrieben von: Parker Massie
  • Kommentare: 0
Ridgid Angle Grinder R10202 Motor Housing Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

Inspection of the motor housing is an important step in determining damage to the inner workings of the grinder. Visual inspection or repair of the gear housing, or "V" motor assembly, will require this guide.

  1. s2S1KPITCcH2iUMI
    s2S1KPITCcH2iUMI
    sroDcJZdR2NaEiMl

    • Use a flathead screwdriver to unscrew the brush holder cap.

  2. KnkDopGfjDKB2QIg
    KnkDopGfjDKB2QIg
    HBQuW4gvVpbPdKA6

    • Using your fingers, gently lift the carbon brush up and out of its housing.

    • Repeat these steps to remove the other carbon brush on the opposing side.

  3. R4nxrgBn2Tf3opcP

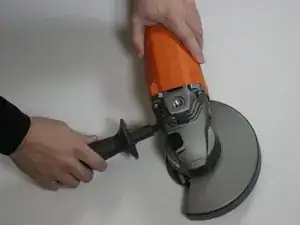

    • Unscrew the side handle assembly from the gear housing assembly by hand.

  4. RQ5aFjxnn6BgWJ2w

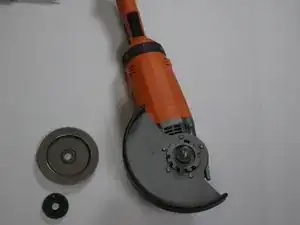

    • Unscrew the clamp nut and the backing flange from the output shaft assembly.

    • You can do this by hand or use a spanner wrench which should be provided in the manufacturers box.

  5. CILvBbKxacgEE5PY
    CILvBbKxacgEE5PY
    PBhOsaKSkfFjuRv2

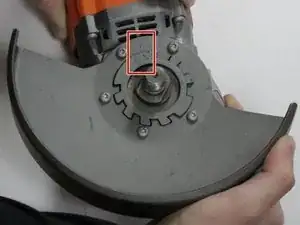

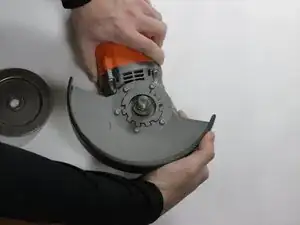

    • Push in the guard lever and twist the guard until it aligns with the slots on the output shaft assembly.

    • There are two arrows that should align before you attempt to pull the pieces apart.

  6. 4JdjvXEXSIdtjUQq

    • Lift the guard away from the output shaft assembly.

  7. Ml1ibcfuhDXyBKAO
    Ml1ibcfuhDXyBKAO
    OYfQOsIUR6IeqDDk

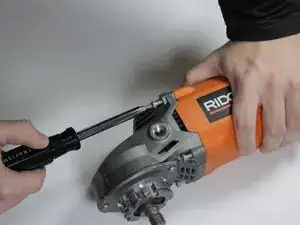

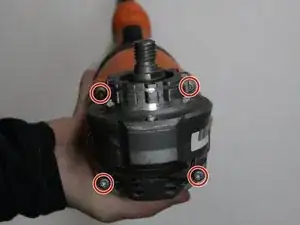

    • Using a T25 Torx screwdriver, unscrew the four M5 X 28mm Torx screws.

  8. tQ5GeHRO4wNHZgOW
    tQ5GeHRO4wNHZgOW
    NdLPXRcExSKL1A2C
    6NraHjuNHE2EWaUW

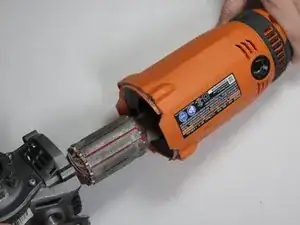

    • Grab the handle assembly and the gear housing assembly and gently pull apart.

    • Slowly pull the gear housing assembly out being careful not to damage the motor against the inside of the motor housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
