Ridgid Angle Grinder R10202 Wiring Assembly Replacement

Geschrieben von: Parker Massie
  • Kommentare: 1
Ridgid Angle Grinder R10202 Wiring Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide is a step-by-step process showing how to get to and remove the wiring harness within the handle of this grinder. This may be helpful in determining an issue with powering the device or replacing faulty wiring. As you work though this guide you will notice number following capitalized parts. These are the key numbers from the visual diagram provided within the Technical Description/Device Page under Additional Information, labeled 'Parts Page and Wiring Diagram.' Steps 1 through 3 are not necessary for this task although they make it easier to work with the tool.

  1. nXN1AIieQDdqOHFW
    nXN1AIieQDdqOHFW
    HLgVXMmaEnthgfXj

    • Take hold of the Side Assembly Handle [8] and unscrew to detach from the grinder.

  2. OaWcQvGv1rccvPxb

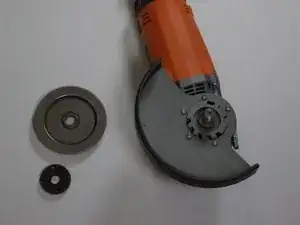

    • To get to the guard, unscrew and remove the Clamp Nut [34], Grinding Wheel (not pictured) [35], and Backing Flange [36].

  3. iXs6aJTyHWWZGIrc

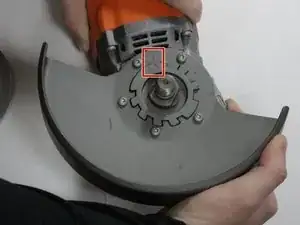

    • To remove the Guard [38], press and hold the Guard Lever [39] and rotate the head to line up the two arrows inlayed within the metal as seen in the photograph provided.

    • Once the arrows line up lift the Guard [38] from the grinder.

  4. lsthEDtjG4YhJRFj
    lsthEDtjG4YhJRFj
    cb2IK5XCEFPXKZWZ
    WA2FLV5BPds2TLZU

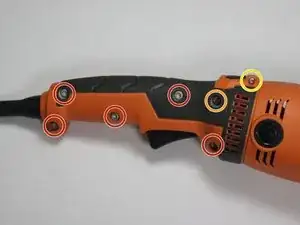

    • Use TORX T20 Screwdriver to unscrew and remove 5 M5 x 16 mm, TORX Screws [28].

    • Use TORX T20 Screwdriver to unscrew and remove 1 M5 x 28 mm, TORX Screw [1].

    • Use TORX T10 Screwdriver to unscrew and remove 1 M3 x 10 mm Screw [26].

  5. vclYBRMYeBISnCBC
    vclYBRMYeBISnCBC
    i5FsfNFQTuDXfolX

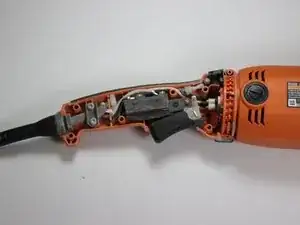

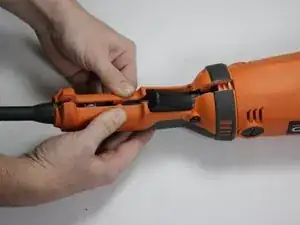

    • You should now be able to separate each side of the Handle Assembly [27] as seen in the first photograph.

    • Remove the side that should easily separate from the other.

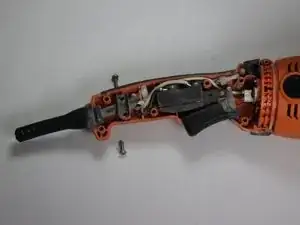

    • One side will remain as seen in the second picture as it is still screwed in.

  6. QDPANLeqMKnYS15P
    QDPANLeqMKnYS15P
    hOZ4HwQD51Yi6JaR
    fXCVxNHvorBxJyUy

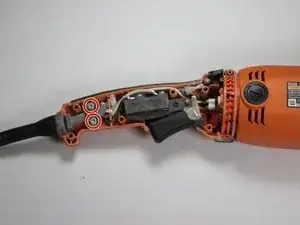

    • Use a Hex Screwdriver to unscrew and remove the 2 8-16 x 1/2 in. Screws [29].

  7. ZhaZasv46k1Svdte

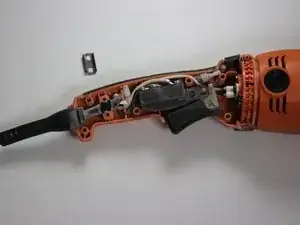

    • The Cord Clamp [30] should be easily removed as seen separated from the Power Cord [32].

  8. 2mQJRDUHcYKUXwF3
    2mQJRDUHcYKUXwF3
    VOeoCsHKp5WEJNAD
    s2OWuuMTExB1IydR

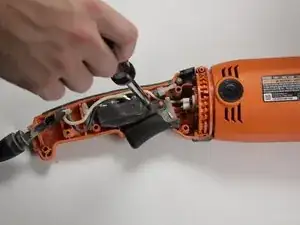

    • Use a screwdriver to unscrew and remove 1 M4 x 14 mm Screw [23].

  9. jNiurJwf6TnB15R1
    jNiurJwf6TnB15R1
    tpkDZqAH6mmlUMNK
    YOY2tYBmeCFTMLLu

    • The whole wiring assembly should be able to be lifted out of where it currently is as seen in the first photograph.

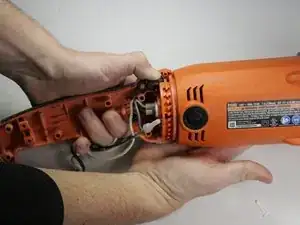

    • Allow the wiring assembly to hang from the grinder as seen in the second picture.

    • Press and hold the Handle Lock Button [24] to release the second side of the Handle Assembly [27].

  10. eqlQv41KMhDUXjJa
    eqlQv41KMhDUXjJa
    VixnEaEM4ItGuFD6
    2todrWrARcLeY6mP

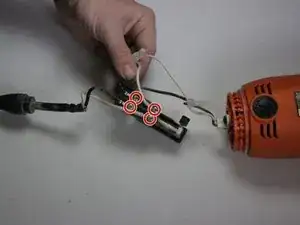

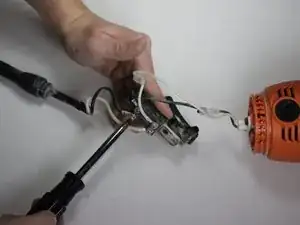

    • Use screwdriver to unscrew 4 M3.5 x 7 mm Screws [22].

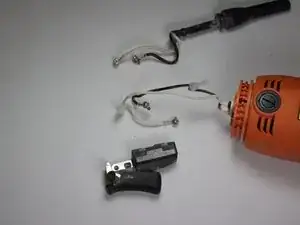

    • The Switch [21], Power Cord [32], and Motor Housing [11] should now all be separated as seen in the third photograph.

Abschluss

To reassemble your device, follow these instructions in reverse order.
