Einleitung
The lower blade guard on a circular saw is to keep the user safe. The lower blade guard protects the blade from getting damaged and also protects the user from getting cut by the saw. If the lower blade guard is damaged (bent or broken) the guard should be replaced because you could be injured if the saw malfuctions. Replacing the lower blade guard is moderatly easy and doesn’t require any steps that are too complicated.
Werkzeuge
Ersatzteile
-
-

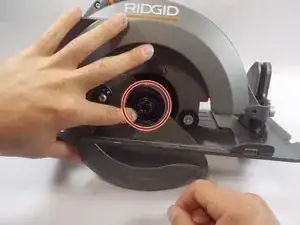

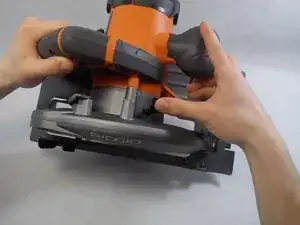

Press the black spindle lock and hold it down.
-

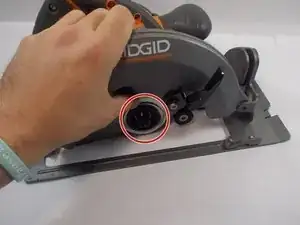

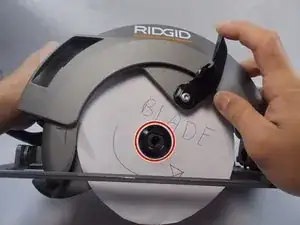

While keeping the spindle lock pressed down use a 6mm allen wrench to remove the 5/16-18 x 0.55 inch screw.
-
-
-

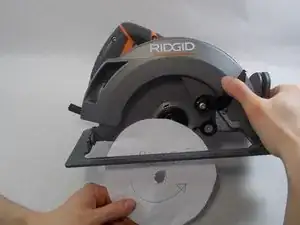

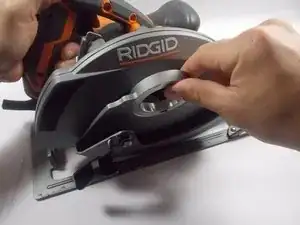

With the outer flange removed retract the lower blade guard into the upper blade guard housing by pushing on the black lever.
-

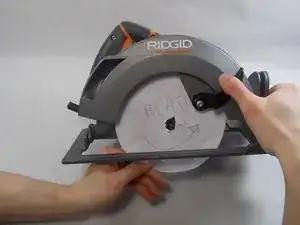

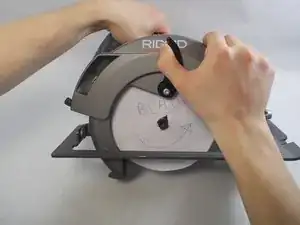

Slide the blade out of from the bottom of the saw.
-
-
-

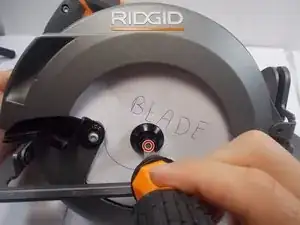

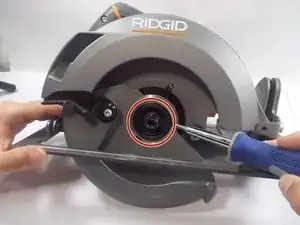

Remove the external retaining ring with a screwdriver by expanding it and then prying it out.
-
To reassemble your device, follow these instructions in reverse order.
