Einleitung
The Spindle Lock on a circular saw is one of the most commonly replaced items. The Spindle Lock wears down due to regular blade replacements. Replacing the Spindle Lock is very moderately easy and doesn’t require any complicated methods.
Ersatzteile
-
-

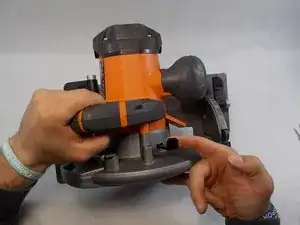

Press the black spindle lock and hold it down.
-

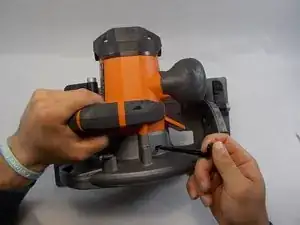

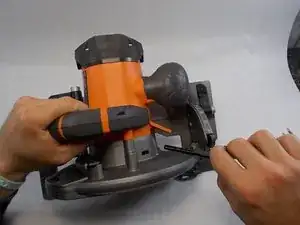

While keeping the spindle lock pressed down use a 6mm allen wrench to remove the 5/16-18 x 0.55 inch screw.
-
-
-

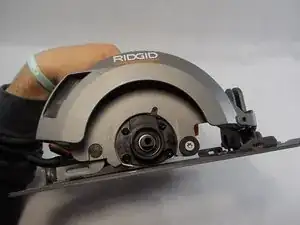

With the outer flange removed retract the lower blade guard into the upper blade guard housing by pushing on the black lever.
-
Slide the blade out of from the bottom of the saw.
-
-
-

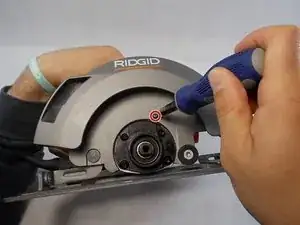

Remove the external retaining ring with a screwdriver by expanding it and then prying it out.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
