Einleitung
The switch on a circular saw is one of the most commonly replaced items. The switch wears out after regular use. Replacing the switch is very easy and doesn’t require any methods that are complicated.
-
-

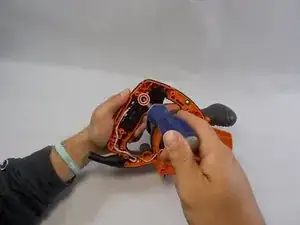

Use a T20 Torx screwdriver to remove the (1/4-20 x 0.66 in.) screw.
-

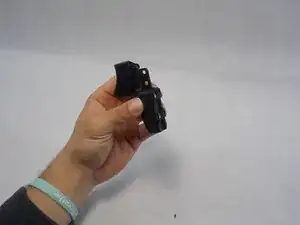

After removing the (1/4-20 x 0.66 in.) screw the lever assembly can be unscrewed from the (1/4-20 x 0.66 in.) screw.
-
-
-

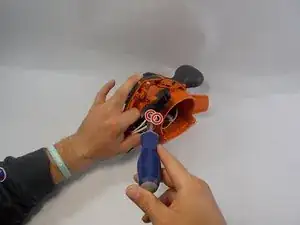

Using a phillips head screwdriver remove the (M4 x 12 mm) screw holding the switch in place.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
