Einleitung
If the selector switch of your drill is stuck or not switching the chuck's direction when pressed, use this guide to remove and replace your selector switch.
-
-
Orient the drill to have the side with the screws facing up.
-
Using the Torx T10 screwdriver, remove the eight 4.0mm screws from the face of the drill.
-
-
-
Orient the drill to where the back is facing up.
-
Using a Torx T10 screwdriver, remove the four 6.0mm screws that attach the back piece to the drill.
-
Remove the back piece of the drill using the iFixit opening tool.
-
-
-
Orient the drill to where the chuck is facing up.
-
Using the Torx T15 screwdriver, remove the four 8.0mm screws from the front of the drill.
-
-
-
Orient the drill so the side with the screw holes is facing up.
-
Use a plastic opening tool to gently pry the face off of the drill.
-
Remove the face completely from the drill.
-
-
-

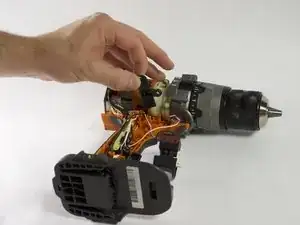

Gently lift the trigger up.
-
Unhook the selector switch from the trigger.
-
Remove the selector switch.
-
To reassemble your device, follow these instructions in reverse order.
