Einleitung
Is your light not working when the light switch is pressed? If so, here is a guide to fix the light switch. You will need a plastic opening tool, a Torx T10 screwdriver, and a Torx T15 screwdriver to remove the requisite components.
-
-
Orient the drill to have the side with the screws facing up.
-
Using the Torx T10 screwdriver, remove the eight 4.0mm screws from the face of the drill.
-
-
-
Orient the drill to where the back is facing up.
-
Using a Torx T10 screwdriver, remove the four 6.0mm screws that attach the back piece to the drill.
-
Remove the back piece of the drill using the iFixit opening tool.
-
-
-
Orient the drill to where the chuck is facing up.
-
Using the Torx T15 screwdriver, remove the four 8.0mm screws from the front of the drill.
-
-
-
Orient the drill so the side with the screw holes is facing up.
-
Use a plastic opening tool to gently pry the face off of the drill.
-
Remove the face completely from the drill.
-
-
-

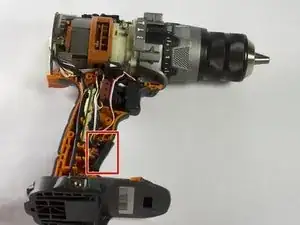

Locate the light switch near the bottom of the drill's inner components.
-

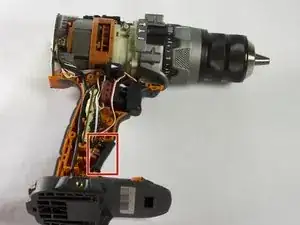

Gently remove the light switch from the casing.
-
To reassemble your device, follow these instructions in reverse order.
