Ridgid GEN5X R8642 Gear Assembly Replacement

Geschrieben von: Josh Wagoner
  • Kommentare: 1
Ridgid GEN5X R8642 Gear Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

1 Stunde

Einleitung

This guide is to help users replace the gear assembly for the Ridgid GEN5X R8642 saw. For this guide you will need: a spudger, a T20 Torx Screwdriver, a Phillips screwdriver size J1, replacement gear assembly for Ridgid GEN5X R8642, and a good attitude.


  1. WKLCEyLvHBX2D4lx

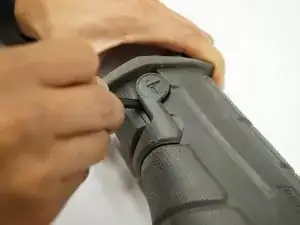

    • Remove the plastic tab holding the handle cover in place by prying upward with the spudger until the tab pops off.

  2. E3fPYAOCjxn6UZPg

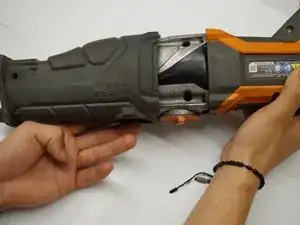

    • Remove the handle cover by pulling it towards the front of the saw.

    • The grip can sometimes become stuck and may require a decent amount of force to remove.

  3. m5UJHwYlJ2i6JQaB
    m5UJHwYlJ2i6JQaB
    TNUa616EuRCAIZgE

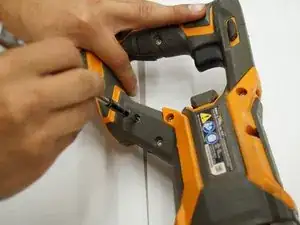

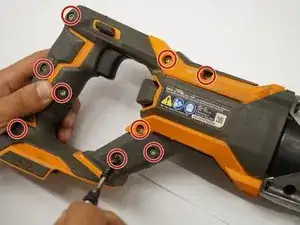

    • Use a T20 Torx screwdriver to remove the nine M4 X 16mm screws from the plastic housing.

  4. U6rpmqGkWW2osDKI

    • Use a JIS #1 screwdriver to remove the two M4 x 25mm screws on both sides of the metal housing.

  5. cWsgIKMX5ls6KNSx

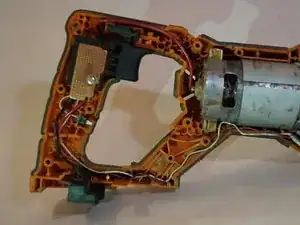

    • Remove one half of the plastic housing using a spudger so that the internal system is exposed.

  6. ywsrWBSbYj4OkFdS
    ywsrWBSbYj4OkFdS
    EjNtOfn33gMRA3Ik

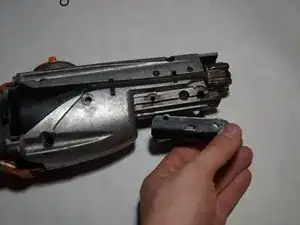

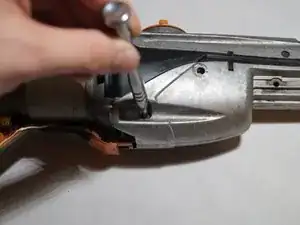

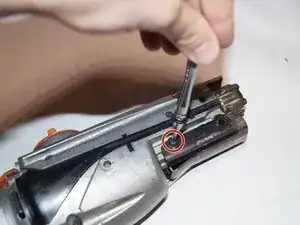

    • Remove the one 16mm T20 screw that holds the grip support onto the saw.

  7. PwDmNDS5jv6FsYlZ
    PwDmNDS5jv6FsYlZ
    Jl4py6dehbNZJYFg
    GicLt6T4ZHLpOEcv

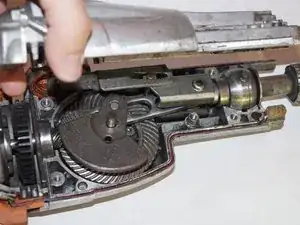

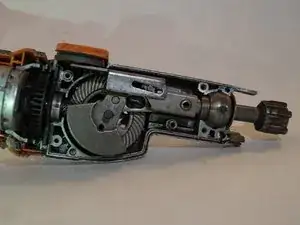

    • Remove the five T20 Torx screws from the gear assembly cover and pull the cover off.

  8. 1N2256gxfDAEhrea
    1N2256gxfDAEhrea
    oCiEQGdMqgk1U5Wk

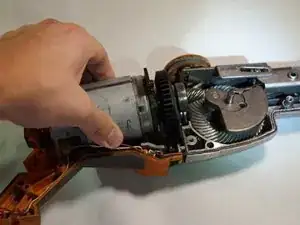

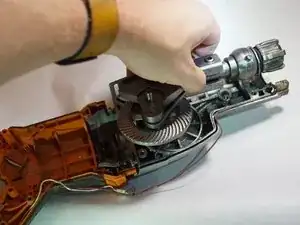

    • Carefully remove the motor making sure not to harm any of the wires that are attached. Place motor gently out of the way.

  9. 5By6Hj23UtGhePR4
    5By6Hj23UtGhePR4
    AAkHXga4u2rJddgr
    wRhI1rOgnHiBMnGQ

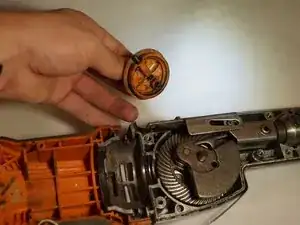

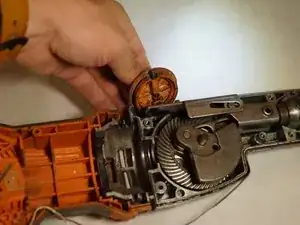

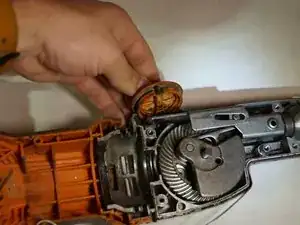

    • Remove the orbital switch by pulling straight up on it.

    • Be careful to not lose the spring and pin that is inside of the switch.

  10. MbfIol5AUqSlkZ3p
    MbfIol5AUqSlkZ3p
    UvZQXVfosu1jRSNu
    PNRLdfTUwYhnOmCa

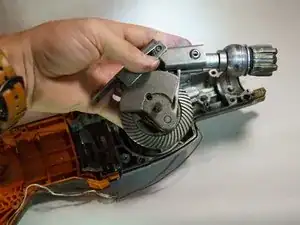

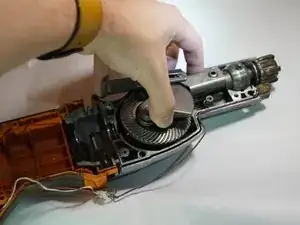

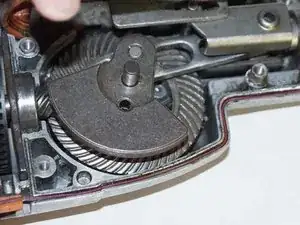

    • Remove the gear assembly by pulling it straight up.

  11. sRDomLWD6XXMBCnA
    sRDomLWD6XXMBCnA
    HMNRwVEnermqDVjI
    JsyDBKKC4VnphF4M

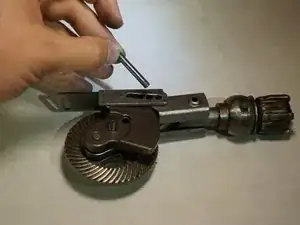

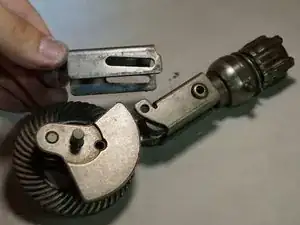

    • Pull the pin holding the metal guide housing in place.

    • Slide the metal guide housing back off the gear assembly.

  12. OS2FvopRDMH4AVjw
    OS2FvopRDMH4AVjw
    3IiSehHMJm6uQgOE

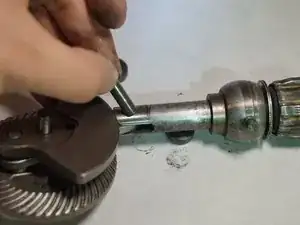

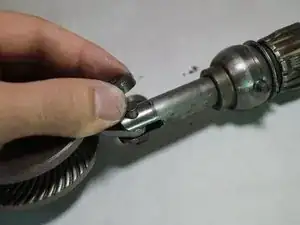

    • Remove the guide bushing by pulling up on it.

    • Then slide the pin out that holds the gear assembly and blade clamp assembly.

  13. Pipb5UAQ6lkndctI

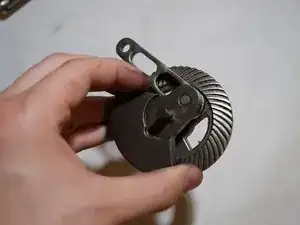

    • Slide the blade clamp assembly off the gear assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
