Einleitung
This guide shows you how to replace the base assembly on this circular saw. This part may need replacement if it is damaged, broken, or warped in such a way as to prevent making clean cuts. Symptoms of a warped base assembly include: cuts skewing to the side when the blade is set at zero degrees or a binding blade caused by the cutting base not sitting flush against the cutting surface.
Werkzeuge
Ersatzteile
-
-
Remove the supplied Allen wrench from it's nesting space in the front of the handle.
-

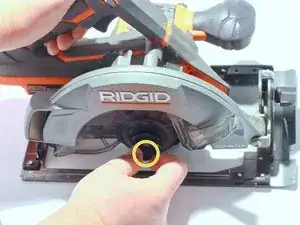

Depress and hold the spindle lock button located between the handle and blade shroud.
-
Using the supplied 6mm Allen Wrench, unscrew the bolt securing the blade and remove the blade.
-
-
-

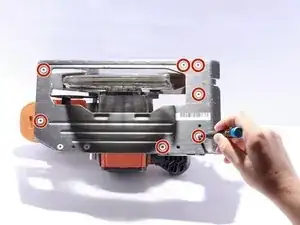

Remove seven 6mm T20 Torx screws located around base of saw.
-

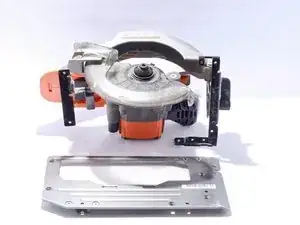

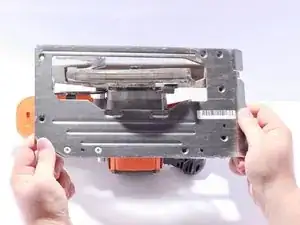

Pull base assembly away from saw.
-
To reassemble your device, follow these instructions in reverse order.
