Ridgid JobMax R2851 Series B Motor Replacement

Geschrieben von: Brent Shepherd
  • Kommentare: 1
Ridgid JobMax R2851 Series B Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide is for a motor repair on the Ridgid JobMax R2851 Series B. This guide would be helpful if you have been noticing slowing motor speeds when using your device or if your device has stopped turning completely and you suspect that you need to do a full motor replacement.

This repair requires minimal tools listed in the guide, and can be done in a short amount of time. Additionally you should remember to unplug your device before starting any repairs to avoid risk of being electrocuted.

  1. 2eL4QBG6HRIc1nGY
    2eL4QBG6HRIc1nGY
    GihZKGmGSCDveToG

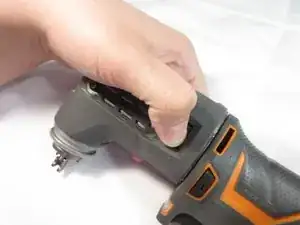

    • Unplug the device from the wall.

    • Orient the device so that the trigger is facing downwards.

    • Place your thumb and index finger on the two buttons located on the head of the tool.

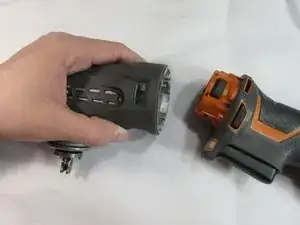

    • Press the two buttons in and pull the head of the tool off.

    What about if my buttons are missing ?

    Ronald S Sasaki -

  2. KXrivAjTZ1wMmdMI

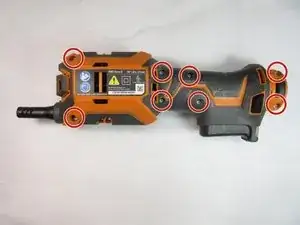

    • Loosen all eight 15mm T10 Torx screws.

    • You do not need to fully remove the screws yet; just loosen them enough that the device shell starts to open.

  3. VuHeDGNctGOpwIoh

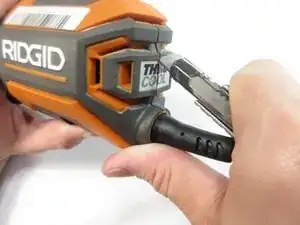

    • Orient the device so that the cord end is facing upwards.

    • Take a small cutting tool, and cut down the seam in the back, ensuring that you only cut the sticker.

    • Make a shallow cut to avoid damaging internal hardware.

  4. YtLUjQghqURljQwV
    YtLUjQghqURljQwV
    1uVGFEDJtUN1GshW

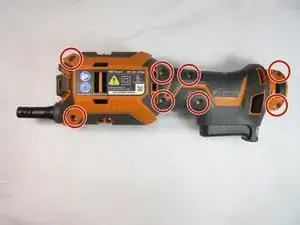

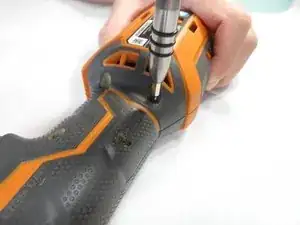

    • Completely remove all eight 15mm T10 Torx screws.

  5. lbnu6eknQXpLJ5Pb
    lbnu6eknQXpLJ5Pb
    VGlZgbdxLDeboQVP
    HojKo2VfCmUWlEss

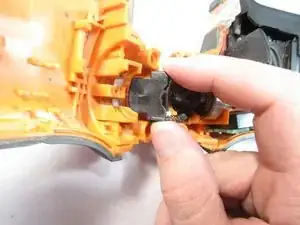

    • Pull the device case off, gripping at the back of the case and rotating it towards the front of the device.

    • Once the device has been separated gently pull on the trigger assembly to remove it from one side of the case.

    • Watch out for the locking mechanism for the head of the device when removing.

  6. WBMUpWEF4QftD5Vt
    WBMUpWEF4QftD5Vt
    6loWmceIqHMjvxnU

    • Grip each of the sides of the two green circuit boards and slide them up.

    • Grip each side of the device trigger, and slide it up.

    • You do not need to completely remove these parts. Sliding them upward provides the needed room.

  7. BZcokPJ4VooLQ1uv
    BZcokPJ4VooLQ1uv
    ipqRtXAjGGZpMeHg

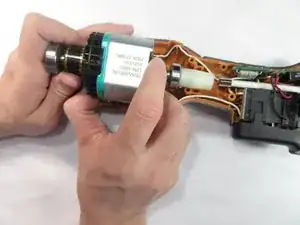

    • Grip the motor firmly and pull towards the back of the tool, rotating back forth until the motor is free.

    • When reinstalling the motor, use a spudger to pull back the brushes. This allows the motor to slide into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
