Einleitung
The Drive Gear Cover for the Ridgid JobMax R8620 Series E is a crucial part of the device because it allows you to have control. If it is not working properly, please view this guide to see how to replace it.
-
-
Pull the battery out of the case by hand before opening the device.
-

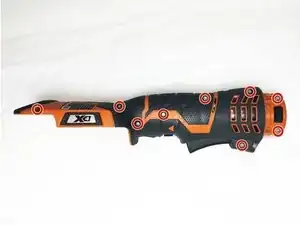

Using a Torx T10 screwdriver, remove the nine 6mm screws on the drill cover.
-

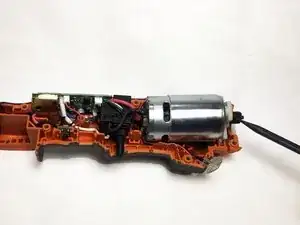

Lift off the outer casing.
-
-
-

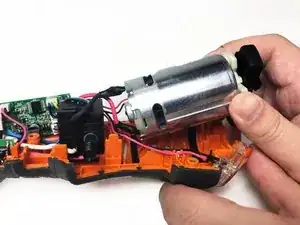

After opening the cover, find the motor and pry it apart from the case in order to have space to do the replacement.
-
-
-

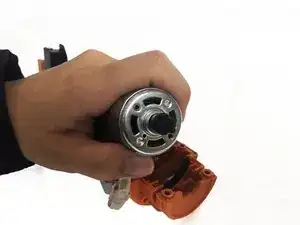

Find the gear cover.
-

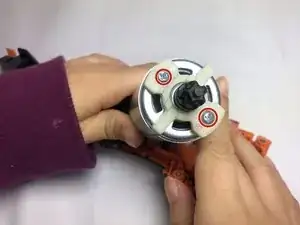

Using a Phillips #0 screwdriver, remove the two screws on the plastic protective plate.
-
Remove the plastic plate.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
