Ridgid JobMax R8620 Series E LED Grip Light Replacement

Geschrieben von: Pengjian Zhou
  • Kommentare: 0
Ridgid JobMax R8620 Series E LED Grip Light Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

The Ridgid JobMax R8620 Series E has a built in LED light on the right side of the device. If the light is dim or not turning on, then you might need to replace the LED light. This guide will give you step-by-step instructions on how to replace the LED light.

  1. NpLvLwXiSTDwBTwq

    • Pull the battery out of the case by hand before opening the device.

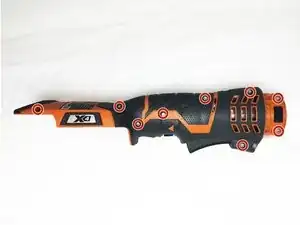

    • Using a Torx T10 screwdriver, remove the nine 6mm screws on the drill cover.

    • Lift off the outer casing.

  2. IaNVKUJwUcNuDARe
    IaNVKUJwUcNuDARe
    felbLcQ1xx5LXIha

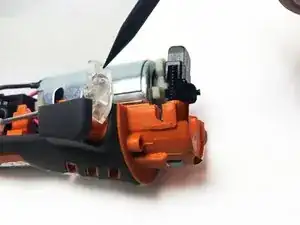

    • Using a spudger or your fingers, remove the LED light from the groove in the handle.

  3. tW2IcCqVAt6yHAJ6
    tW2IcCqVAt6yHAJ6
    WGf1JZBHc3jFenIv

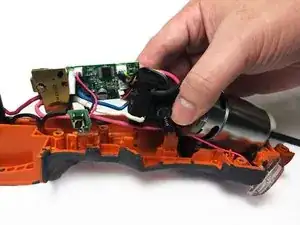

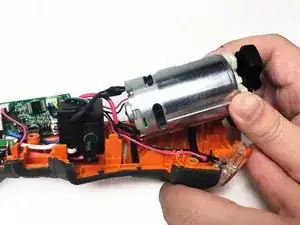

    • Carefully remove the motor as well as the main board from the drill cover.

  4. cG6SmK5XPoU1HOU3
    cG6SmK5XPoU1HOU3
    OPmcXnHLgTwtElEU

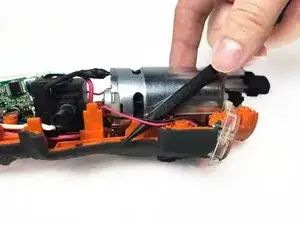

    • Find the corresponding position of the LED line on the motherboard. If necessary, use tweezers to pull it out and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
