Ridgid R2601 Power Cord Replacement

Geschrieben von: Ellie Lott
  • Kommentare: 3
Ridgid R2601 Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

If the sander will not turn on and you have already tried blowing out dust and replacing the switch, the power cord may be at fault. You can easily replace the cord using this guide. You will need a Torx T15 screwdriver, a Torx T10 screwdriver, and a small flathead screwdriver. Be sure that the device is unplugged when completing this replacement.

  1. nZgXvxiohhJYSNPf

    • Remove the four M3.5 x 16 mm screws from the top cover using a Torx T10 screwdriver.

  2. Z4lLljwSEJTGgGRx

    • Pull off the top cover.

  3. DxHpN23bKiRmDBXP
    DxHpN23bKiRmDBXP
    ESeOabPijsTSWyjL

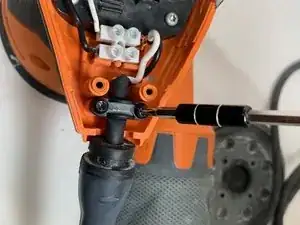

    • Remove the two #6-19 x 15mm screws on the black retaining bracket using a Torx T15 screwdriver.

    Mention that you need to tilt the board with the dial up.

    Ellie Lott -

  4. uFZbJEFshGgQZpN2

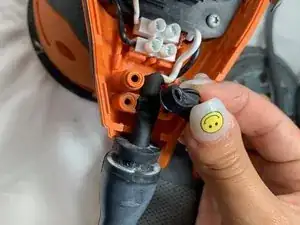

    • Pop out and remove the black retaining bracket with your fingers.

  5. wDaBBvIhyY1UubxS
    wDaBBvIhyY1UubxS
    LHwIDpRjnD2MLWLN

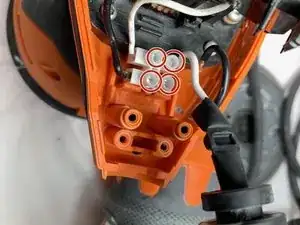

    • Loosen the screws in the white terminal block with a small flathead screwdriver. Note that you do not need to fully unscrew and remove them.

    Mention what size flathead.

    Ellie Lott -

    And also include the length.

    Ellie Lott -

  6. KD4h5PKnwKRDNXVK

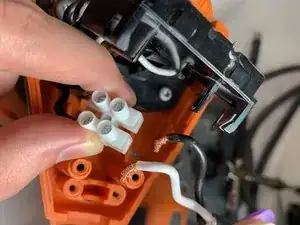

    • Pull the wiring out from the white cover. The power cord can now be replaced by completing these steps in reverse.

Abschluss

To reassemble your device, follow these instructions in reverse order.
