Ridgid R86008 Gearbox Replacement

Geschrieben von: Lauren Dierkop
  • Kommentare: 0
Ridgid R86008 Gearbox Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

  1. KipA2ASQdHGnYO1p

    • Before you begin make sure battery is removed from drill.

    • Loosen the four 13mm T10 Torx screws from the back of the drill and remove cap.

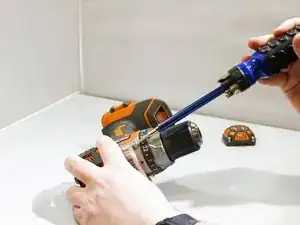

  2. YPEQjJHJuGaRgOlB

    • Remove the two 25mm T10 Torx screws from the front of the drill.

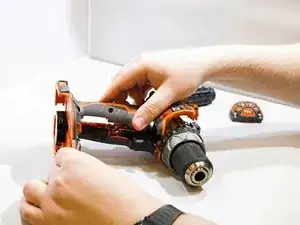

  3. JiCwBtGfNsGrsLH2

    • Remove the remaining 13mm T10 Torx screws and pull apart drill case.

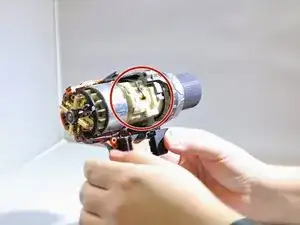

  4. VMSuvXsg3MA32UbE

    • Identify gearbox.

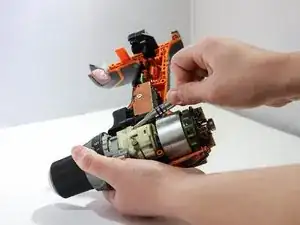

  5. aUQPagORPQURohrh
    aUQPagORPQURohrh

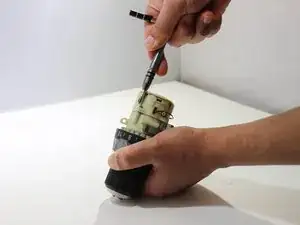

    NB6KMHQ3rYFLRCw6

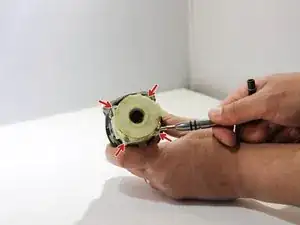

    XEiXN4JsYSHMIBtT

    • Using a PH1 screwdriver, remove the four 13mm PH screws from the back of the gearbox.

    • It may be easier to unscrew the screws by separating the front end of the drill from the rest of the drill.

  6. LHaxEAB5orPVJMxX

    • Pull apart gearbox.

Abschluss

To reassemble your device, follow these instructions in reverse order.
