Replace a broken button on a Ring Doorbell Elite

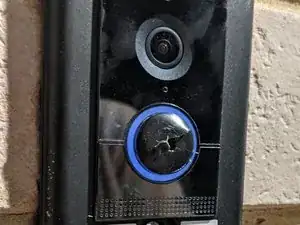

  1. rSLrQBx6VQX2xvRv
    rSLrQBx6VQX2xvRv
    o2qYIdlPHMThNHJZ
  2. xGZGCigPIUmDR5C4
    xGZGCigPIUmDR5C4
    T5Fx5ANAw5SmbjAW
    euvxqZMfA2vRxJLD

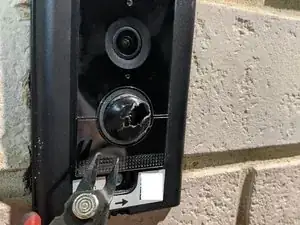

    • The button is very difficult to replace by disassembly. The seller recommends to pull out the button slightly with your fingers and slide a screwdriver around the seam. I found this didnt work for me

    • The old button is clipped around the housing with three clips. Cutting the centre of the button out allows easier access to the clips from the inside

    • Be careful with the cutters to not go too deep and damage the inner circuitry of the button, try to cut parallel to the front of the button

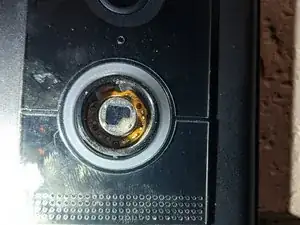

    • The green ring represents the remains of the old button and the red ring represents the button housing which the button is clipped to

  3. G6EMOP2pMPFWqUNU
    G6EMOP2pMPFWqUNU
    JDJWQGrImDmcHhjf

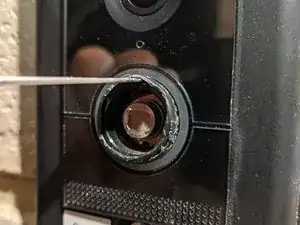

    • Carefully insert the pointed end of a metal spudger into the gap between the button and the button housing and rotate to seperate the clips from the housing

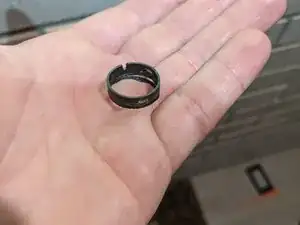

    • Then pull back on the button remains as you unclip the clips

    • The clips are located at 12 oclock , 4 oclock and 8 oclock

  4. RDUVdYeShYiYpXXt
    RDUVdYeShYiYpXXt
    x2MiM4UXIHjpmWT5
    XEmhgqwZiBBY6Tkp

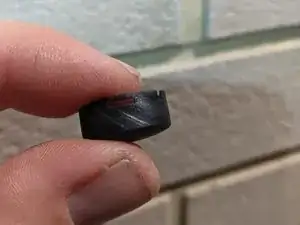

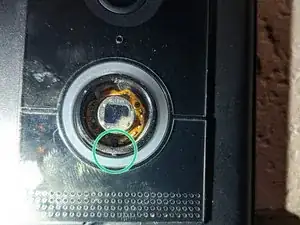

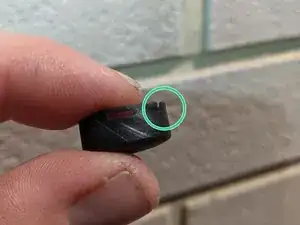

    • Insert the new button with the notch at 6 oclock. It should line up with a tab inside the button ring

    • Push the button in firmly once lined up. It should not take too much force.

    • Done!
