Einleitung
In this guide, you will be shown how to take apart and replace the camera of the Ring Video Doorbell step-by-step. You will need a Phillips screwdriver size PH00 and a Plastic Tool Opener.
Werkzeuge
-
-
Start by using the PH00 Phillips Screwdriver to take out the 6 1 mm screw's on the bottom of the device.
-
Pry open the aluminum plate using the Plastic Opening Tool(s).
-

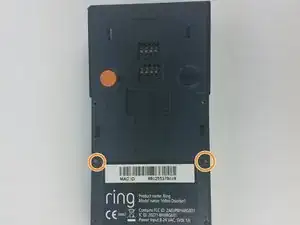

Remove the 2 1. mm screws using the PH00 Phillips Screwdriver.
-
-
-

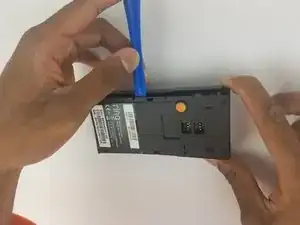

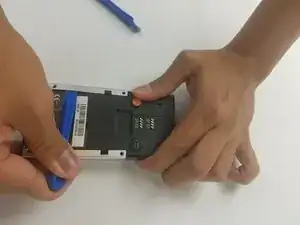

Pry open the back case as shown using the Plastic Opening Tool.
-

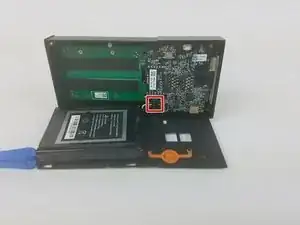

Disconnect the battery from motherboard by carefully pulling up on the connector.
-
-
-

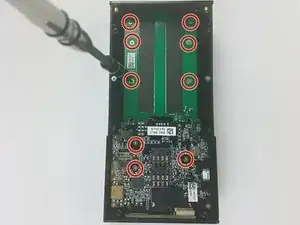

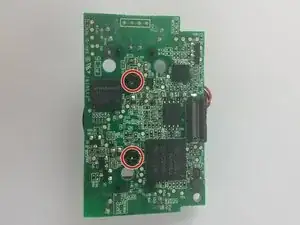

Unscrew the 9 1 mm screwdrivers using a PH00 Phillips Screwdriver.
-

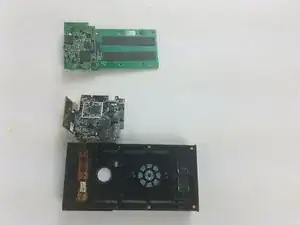

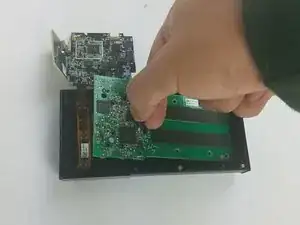

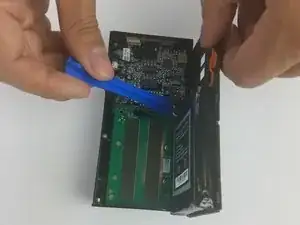

Carefully detach the motherboard, from the housing unit using your hands.
-
-
-

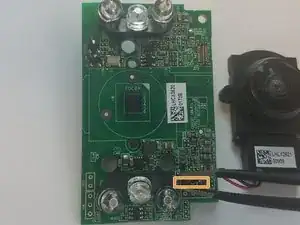

Using the Plating Tool Opener, arefully disconnect the ribbon cable that attaches the camera to the housing.
-

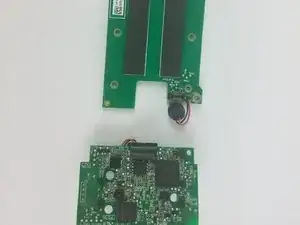

Replace camera, and follow the steps in reverse order to reassemble
-
-
-

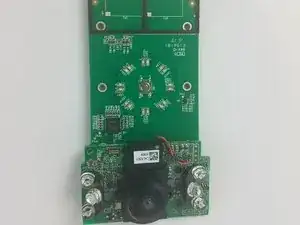

Unscrew the two 1 mm screws using the PH00 Philips Screwdriver.
-
Detach the black and red wire connected to the motherboard, using the tweezers, to remove the camera.
-
To reassemble your device, follow these instructions in reverse order.
