Ring Video Doorbell Speakers Replacement

Geschrieben von: Oscar Pascual-Diego
  • Kommentare: 1
Ring Video Doorbell Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

This guide begins after completing the motherboard replacement guide. All you will need for speaker replacement is a plastic opening tool. Speaker replacement may be needed if you are having sound issues.

  1. wmc6hJyUGEBjlFlw
    wmc6hJyUGEBjlFlw
    qWwG3ymLwLlhqjvr
    eWBGVcED1qeVmZUw

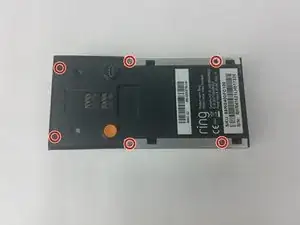

    • Start by using the PH00 Phillips Screwdriver to take out the 6 1 mm screw's on the bottom of the device.

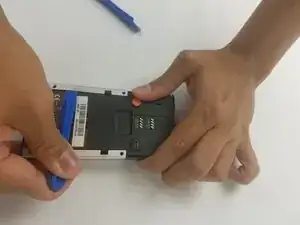

    • Pry open the aluminium plate using the Plastic Opening Tool(s).

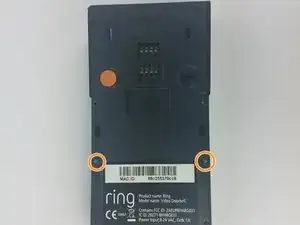

    • Remove the 2 1 mm screws using the PH00 Phillips Screwdriver.

  2. oB2crvPEUVoYTGGa
    oB2crvPEUVoYTGGa
    ASfBKaYH4wt4WTxW
    EWEM1sHEyUbWXEox

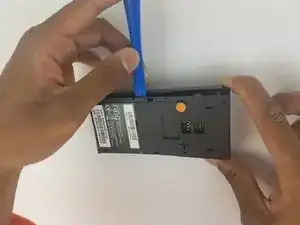

    • Pry open the back case as shown using the Plastic Opening Tool.

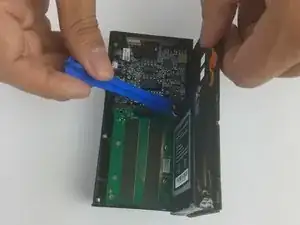

    • Disconnect the battery from motherboard by carefully pulling up on the connector.

  3. nhqDUlWdLIOHnT2V
    nhqDUlWdLIOHnT2V
    1E2SgMIeGNyZECGF
    4HHH5UIpS5JwgTxx

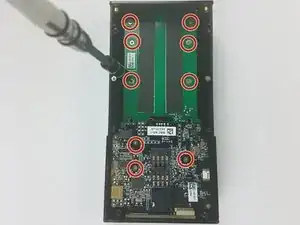

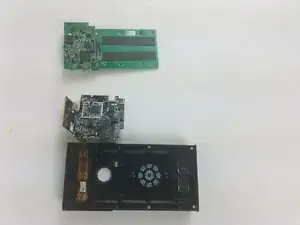

    • Unscrew the 9 1 mm screwdrivers using a PH00 Phillips Screwdriver.

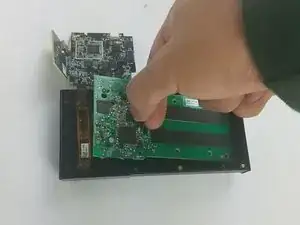

    • Carefully detach the motherboard, from the housing unit using your hands.

  4. J5NWhVlVeljVF1gM
    J5NWhVlVeljVF1gM
    Uyp3GMlhLhM5ZVMT

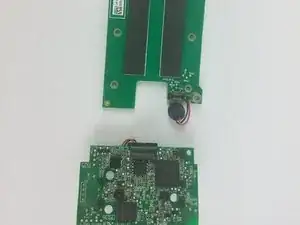

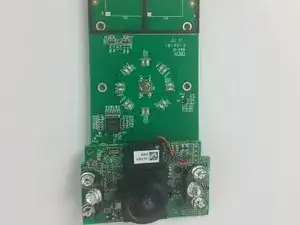

    • Detach the upper part of the motherboard from the bottom, using your hands.

  5. JZPIQIFMCme6Onrw

    • Speakers are two small rectangles located above the button of the doorbell.

  6. iDnSZujmEUMYftRt

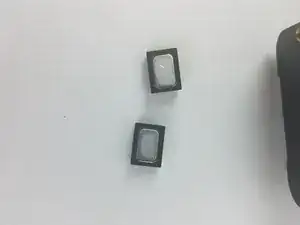

    • To remove the speakers pry each one out carefully with a plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
