Einleitung
In this guide, you will be shown how to take apart the housing unit in order to replace the battery of the Ring Video Doorbell, step-by-step. You will need only a Plastic Tool Opener for this.
Werkzeuge
-
-

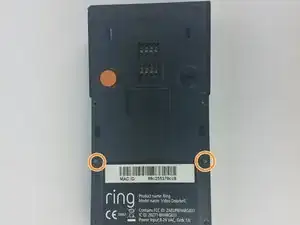

Start by using the PH00 Phillips Screwdriver to take out the 6 1 mm screw's on the bottom of the device.
-

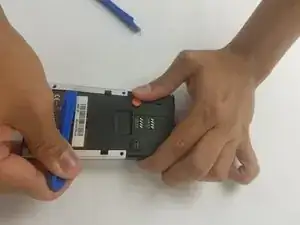

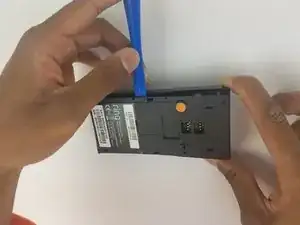

Pry open the aluminium plate using the Plastic Opening Tool(s).
-
Remove the 2 1. mm screws using the PH00 Phillips Screwdriver.
-
-
-

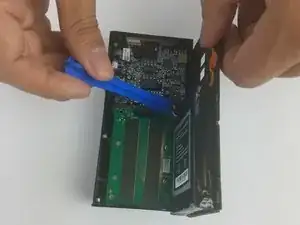

Pry open the back case as shown using the Plastic Opening Tool.
-

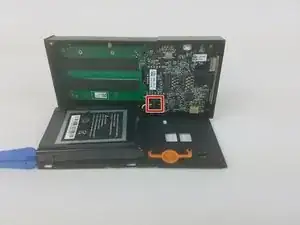

Disconnect the battery from motherboard by carefully pulling up on the connector.
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
Where do I get a replacement battery?
I had an issue where the battery would not charge the light when I was trying to charge the battery flashed bue quickly, I removed the battery and found that the connector was corroded after cleaning it and making sure it was connected correctly the battery then took a full charge and now the bell functions as intended once again.
P.S thanks for the guide :)
Who should the complete unit be sent to for checkup and repairs as it does not work
d.rayyan -
