Einleitung

This guide will give detailed steps on how to replace the capacitor in the Ring Video Doorbell Pro.

  1. WcIo54MnAwJOQBAY
    • Start by using the star-shaped end of the included Ring screwdriver to take out the 5 mm screw on the bottom of the device.

  2. MtOksEuZgfVPrR4Y
    MtOksEuZgfVPrR4Y
    kdja4txUEQbLRA2T
    Rb622WQhCSUFfV4R
    • Use your thumbs to apply downward pressure on the glass part of the device while pulling the faceplate up and off of the device.

  3. vO2P5MoljvUAQgX2
    • Using a PH-000 screwdriver, unscrew and set aside all four of these 5.25 mm screws.

  4. 4ZbiW21kYyGGSak3
    4ZbiW21kYyGGSak3
    IgsYhp6AgPuQeHJM
    • Using a plastic pry tool, go along the edge of the device prying the device apart. While doing this, focus on the four clips, two of which are on either side of the device.

  5. mrNTrw46qNbj1vuU
    • Remove the front of the device from the back plate.

  6. 21PUXvPOg2NokUK1
    • With the Video Doorbell Pro opened up the speaker is exposed.

  7. UvEjxT5qWSggqGdX

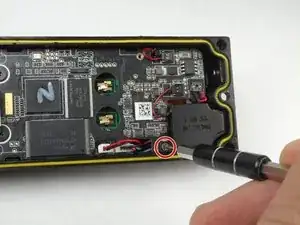

    • Remove this 5.25 mm screw.

  8. EwksrqMe3yyOU5Uq

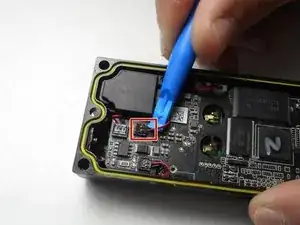

    • Remove this wire connection by gently prying it off with a plastic pry tool.

  9. gqSZAlEI34joD41A

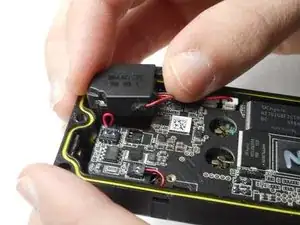

    • Remove the speaker from the device.

    What is the model number of the speaker

    Sammy De Maertelaere -

  10. YYt1NKLY3pbkIcZF
    • The next step is to remove the last four connections holding the motherboard in place.

  11. xQyopNw1bKPIAQar

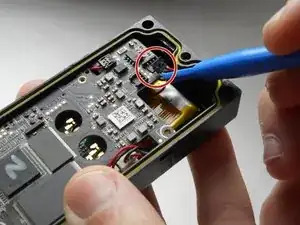

    • Using the plastic pry tool, carefully remove this wire connection.

  12. 4GStyoDXNggfhtjF

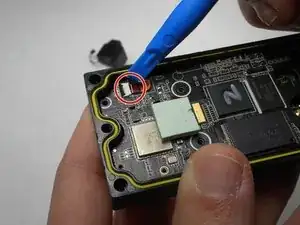

    • Using the plastic pry tool, gently ease this ribbon cable from its port.

    This step is not needed. The ribbon connects to a daughter board below main board (see pic for step 15) and they will move together. So this is not an obstacle to access a capacitor or battery/antenna combo.

    albert20 -

  13. gCnRXHjpdiYlxUQb
    • Remove the last two wire connections shown here using the same methods utilized in the previous steps.

  14. gW3JfoTqkF4Z2AsT
    gW3JfoTqkF4Z2AsT
    lixEYsMlSfuAHTj3

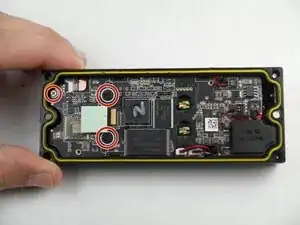

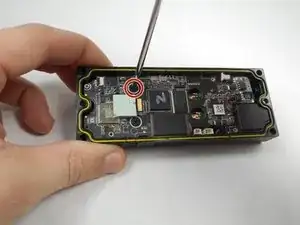

    • Using the Phillips 000 screwdriver, remove these three 4.25mm screws.

    I’m not sure you have to remove the black screws, I think they hold the camera lens holder to the motherboard.

    Mark H -

  15. IcqeGT5YPhaSQ5vQ

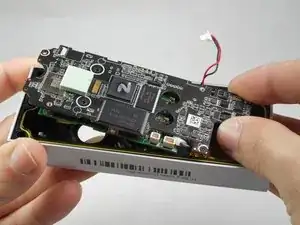

    • Take the motherboard out of the housing. Lift slowly while doing this to make sure the wires and the delicate ribbon cable are not damaged.

    What is the value of the capacitor?

    Thanks

    Daniel Kerbacher -

  16. Gg3h44FFkTn2S2Xh
    • Remove the capacitor.

    CAUTION:

    You need to add to the ribbon cable removal that the ribbon cable pulls out of the white socket. Do not pry up on the white socket as you will break the soldier connections.

    Steven Rhoads -

Abschluss

To reassemble your device, insert the new capacitor and follow these instructions in reverse order.
